Anest Iwata iCon 30:1 X3 Series Air-Assisted Airless Paint Pump System

Anest Iwata iCon 30:1 X3 Air-Assisted Airless Pump System.  The 30:1 pump is an ideal single gun design with a powerful 30:1 ratio to reach fluid pressures of 3,000 PSI.  iCon 30:1 X3 can easy handle anything from stains, clears, topcoats and many primers, in both water and solvent-based coatings.

We are confident that this pump will provide you an amazing finish with minimal fluctuation vs our competition.  With our air motor change-over block, this pump runs smoothly for a Class A finish.

All Complete Systems with the MSGS Gun Now Includes:

  • Extra Items Included with Your Purchase;
    • (1) 7964 iCon X3 Pump Maintenance Kit
    • (1) High-Pressure Fluid Swivel
    • (1) Sprayfish Air Manifold Shutoff Valve
    • (1) 93004210 - MSGS-200 Gun Maintenance Kit
    • (1) UL1000701 - Suction Rod Filter Screen Kit

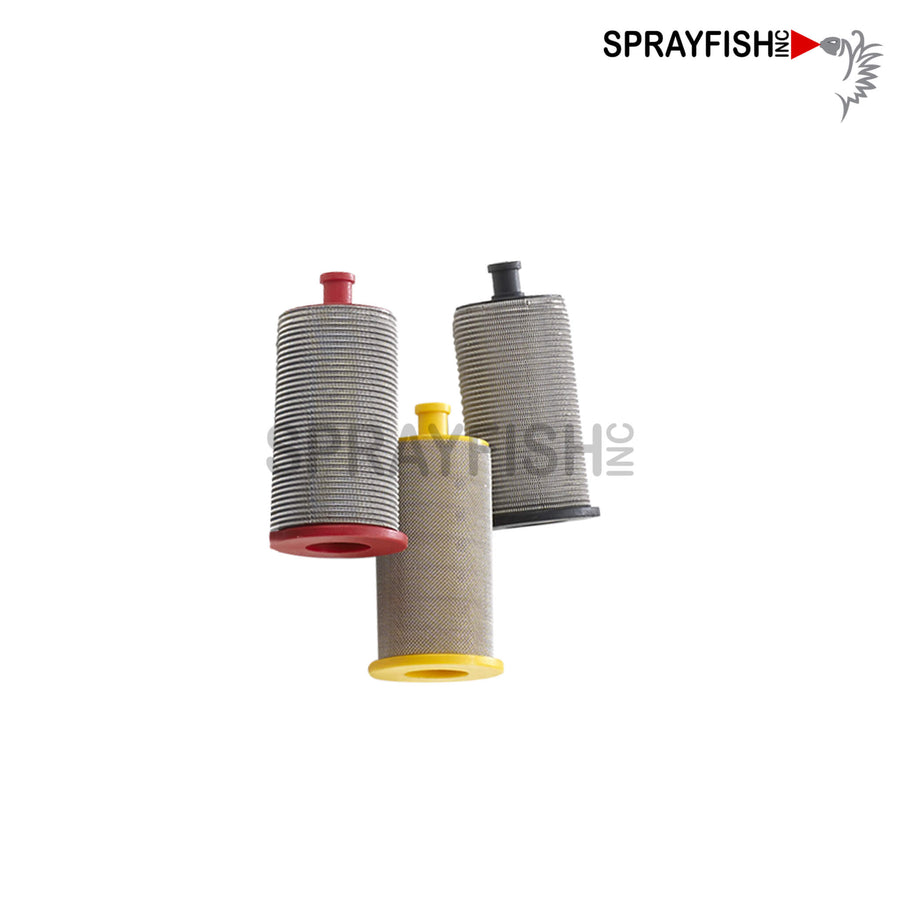

    • (1) Each - 60, 100, 150 Mesh Pump Filter Screens
    • (2) 6pk Tip Cleaning Broaches/Needles
    • (1) 10pk White PTFE Tip Seals
    • (2) Extra Spray Tips - Choose Your Size
    • (1) VFM2802/S - Gun Screen Filter Support Assembly
    • (1) 5pk Gun Screens
    • (1) 21g Tube of Fish Grease - PTFE Gun/Pump Grease
    • Total Savings for Extra Items @ Normal Pricing = $664.54

THE FUTURE IS HERE!

The Iwata iCon 30:1 X3 Series of Air-Assisted Airless Pumps is unlike any pump you have ever seen before!

Iwata iCon X3 30:1 Pump System Wall-Mount

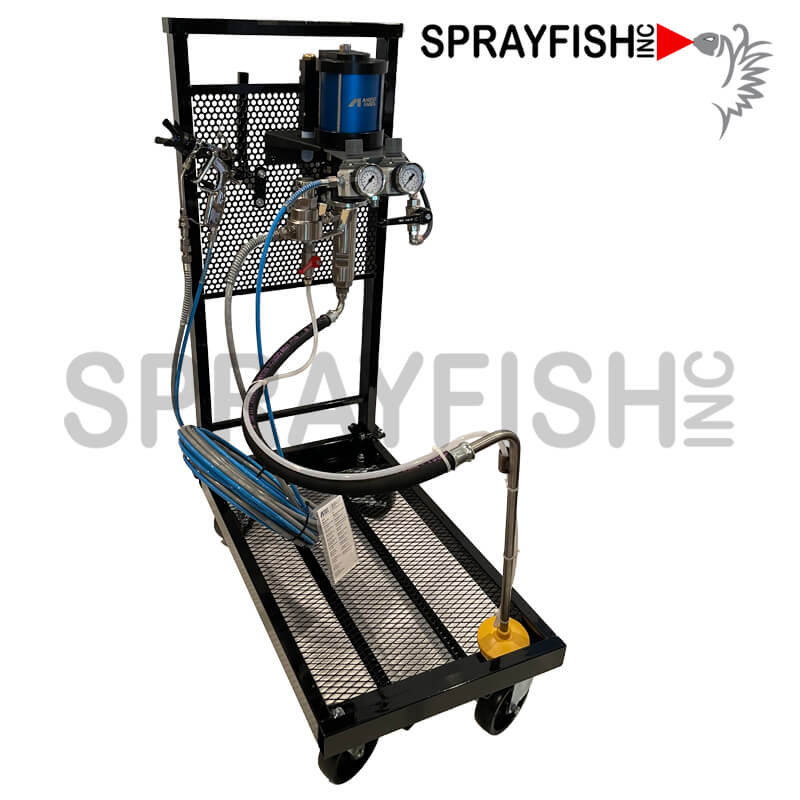

Iwata X3 30:1 Pump System, Sprayfish 4-Wheel Cart Mount
Iwata X3 30:1 Pump System, Cart Mount

IWATA ICON X3 30:1 AIR-ASSISTED PUMP SYSTEM - INCLUDES $665 SPARE PARTS PACKAGE - SEE DESCRIPTION

IWATA ICON X3 30:1 AIR-ASSISTED PUMP SYSTEM - INCLUDES $665 SPARE PARTS PACKAGE - SEE DESCRIPTION

Regular price $3,079.53 Sale price $2,740.00 Save $339.53
/
With Any iCon X3 System Package That Includes the MSGS-200 Spray Gun - Also Receive $665 in Spare Parts that you won't find anywhere else!
  • Extra Items Included;
    • (1) 7964 - iCon Pump Maintenance Kit
    • (1) Fluid Swivel for MSGS-200 Gun
    • (1) Sprayfish Air Manifold for Pump
    • (1) 93004210 - MSGS-200 Gun Maintenance Kit
    • (1) UL1000701 - Suction Rod Filter Screen Kit
    • (1) Each - 60, 100, 150 Mesh Pump Filter Screens
    • (2) 6pk Tip Cleaning Broaches/Needles
    • (1) 10pk White PTFE Tip Seals
    • (2) Extra Spray Tips - Choose Your Size
    • (1) VFM2802/S - Gun Screen Filter Support Assembly
    • (1) 5pk Gun Screens
    • (1) 21g Tube of Fish Grease - PTFE Gun/Pump Grease
    • Total Savings for Extra Items @ Normal Pricing = $664.54

Anest Iwata iCon X3 30:1 Air-Assisted Airless Pump System.  The X3 pump is single gun compact design with a powerful 30:1 ratio to reach fluid pressures of 3,000 PSI.  X3 takes very little air to operate and its lightweight and compact design makes it a great pump for in the shop or on the job site work.

The system can come in many configurations to meet your application needs.  Each system includes (or optional):

  • New Compact Paint Filter TF-15, Stainless Steel
  • 5 Gallon Suction Hose or 6 LT Hopper Set Options
  • All Wettet Parts are made in Stainless Steel
  • Fluid Valve Seats are made in Carbide
  • Hard Chrome Plated Surfaces Inside of the Pump
  • Dual Air Regulators to Control your Pump and Gun
  • Self-Adjusting V-Packings to remove the need for Daily Maintenance
  • 25' Hose Set (Optional)
  • MSGS-200 Air-Assisted Airless Gun (Optional)
  • Iwata Cart, Sprayfish Cart, or Wall-Mount Options
  • 0.4 Gallons Per Minute @ 60 Cycles
  • 3,000 PSI Max Fluid Pressure
  • 110 NL/Min = 3.89 CFM Air Requirements

The X3 is a great replacement for the Kremlin® 10-14, 10C-18, 15C-25, 30C-25, and Graco 15:1 Merkur with 0.4 GPM Lower.  We are confident that this pump will provide you an amazing finish with minimal fluctuation vs our competition.  With our air motor change-over block, this pump runs smoothly for a Class A finish.

Mount Option
System Configuration
Suction Type
Shipping calculated at checkout.
Iwata iCon 5 Gallon Suction Rod Set
IWATA ICON M333N 5 GALLON SUCTION HOSE SET
Anest Iwata
$363.14
Iwata iCon M333N 55 Gallon Suction Hose Set
IWATA ICON M333N 55 GALLON SUCTION HOSE SET
Anest Iwata
$193.98
Iwata iCon M333N 6L Hopper Set
IWATA ICON M333N 6L HOPPER SET
Anest Iwata
$394.74

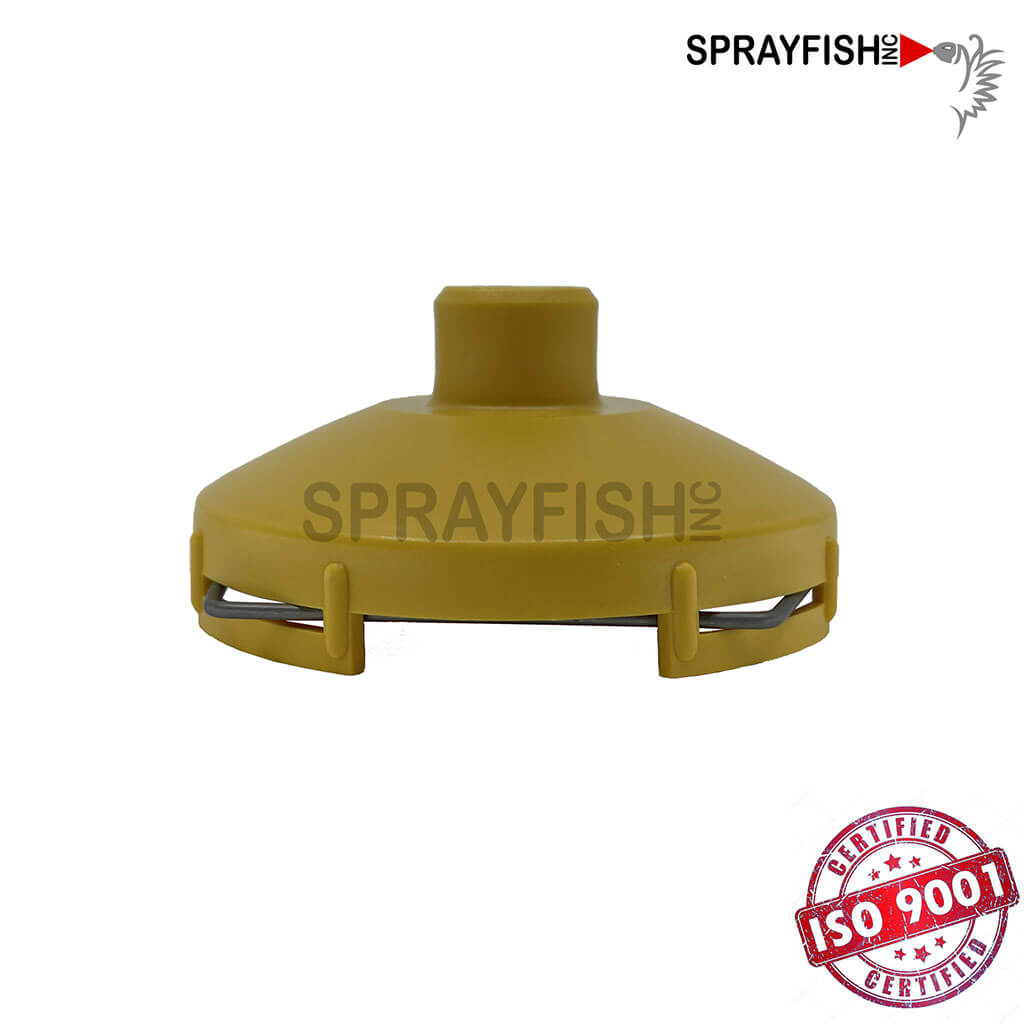

Iwata iCon M333N Suction Filter Set
IWATA ICON M333N SUCTION FILTER SET
Anest Iwata
$47.50

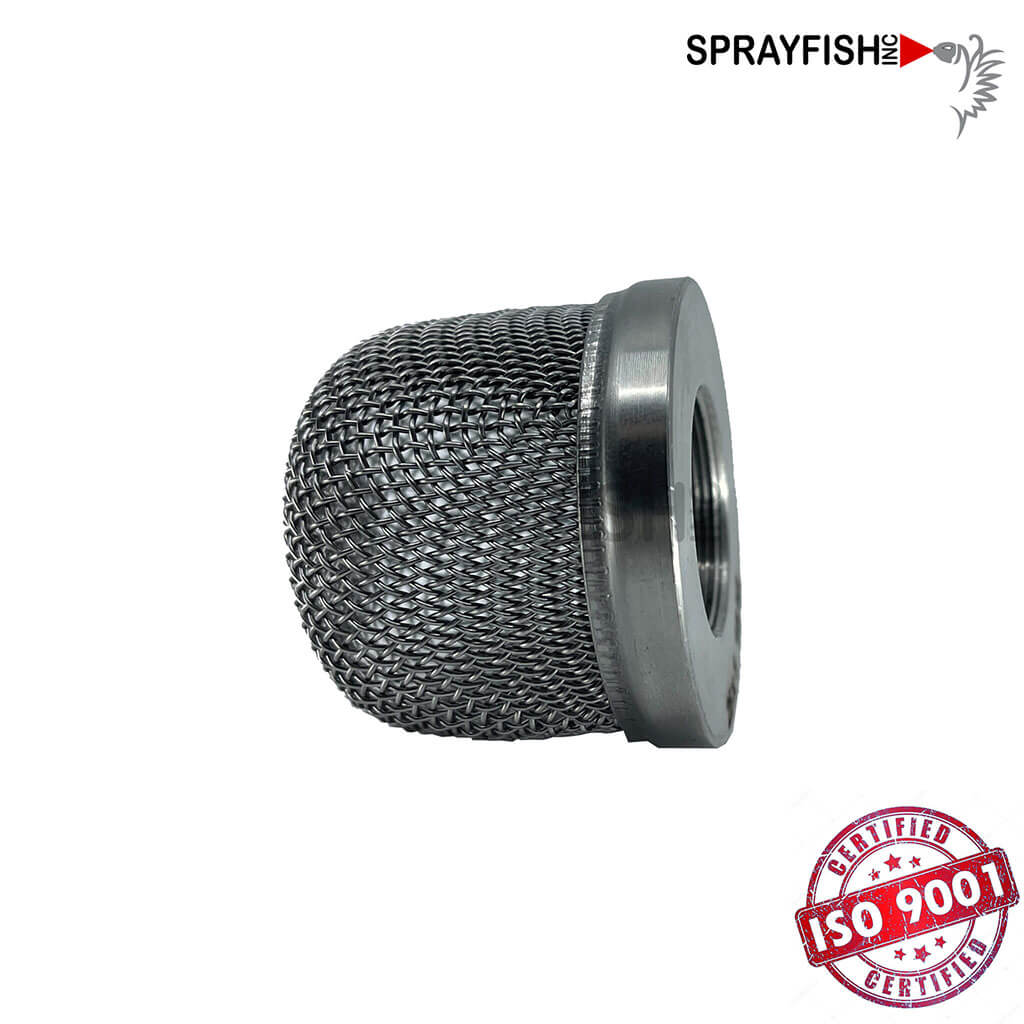

Iwata Stainless Suction Rod Strainer
IWATA STAINLESS SUCTION ROD STRAINER
Anest Iwata
$42.00

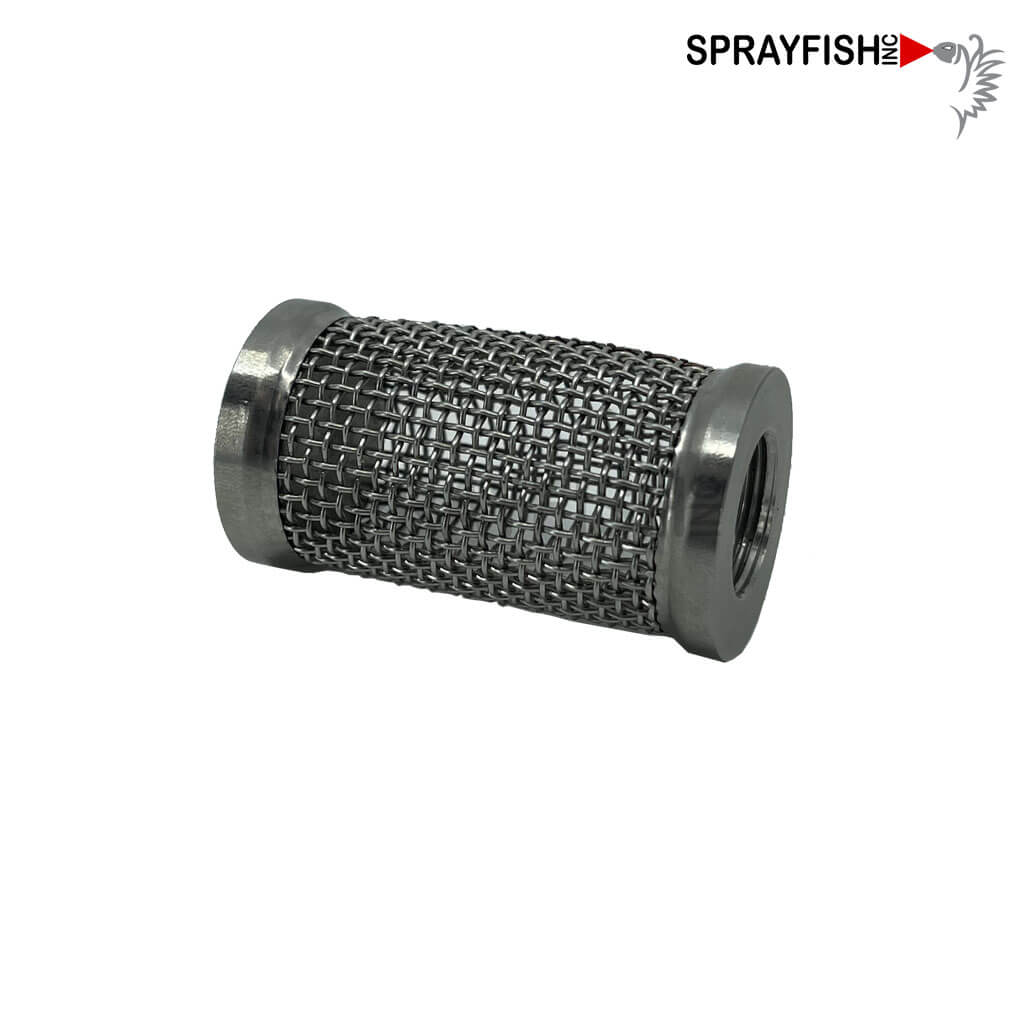

Iwata Bung Stainless Suction Rod Strainer
IWATA BUNG STAINLESS SUCTION ROD STRAINER
Anest Iwata
$38.00
High-Pressure 3/16" Fluid Hose with Stainless Fittings
HIGH-PRESSURE 3/16" FLUID HOSE
Sprayfish, Inc
from $81.50
High-Pressure 1/8" Fluid Hose Whip with Stainless Fittings
HIGH-PRESSURE 1/8" FLUID HOSE WHIP
Sprayfish, Inc
from $58.20

Get A Quote - Contact Us

We know our market is competitive. If you're interested in our iCon pumps but need better pricing, please let us know. If we're missing an item you need online, please reach out and we can provide you with pricing!
