LS-400 Gravity Feed Spray Gun

Anest Iwata LS-400 Supernova Gravity Feed Spray Gun is no longer available for purchase.  It has been replaced by the LS-400 Series 2.  Please contact us with any questions regarding the new series of  Supernova!

IWATA LS-400 SERIES 2 HVLP GRAVITY FEED GUN - BASE COAT - INCLUDES PLASTIC FFS CUP SYSTEM

Anest Iwata SKU: 2912D
Price
Save $124.68
/

Anest Iwata LS-400 Series 2 HVLP Gravity Feed Spray Gun, Base Coat Model with Plastic Fast Flow Cup System.

Features:

• HVLP spray gun with low operating air pressure

• Exclusive Split Nozzle™ 2.0 Technology for repeatable results and unmatched performance

• Ideal for a wide range of solvent and waterborne base coat applications

• Nozzle configurations to optimize your paint and climate conditions

• Optional DPG1 high-performance digital pressure regulator allows air adjustment convenience without disrupting the spray gun ergonomics
Nozzle Size
Gun Style
Shipping calculated at checkout.
Anest Iwata LS400 Green Digital Series 2 Base Gravity Feed Gun
Anest Iwata LS400 Green Standard Series 2 Base Gravity Feed Gun
Anest Iwata LS400 Series 2 Green Technical Data
Anest Iwata LS400 Green Digital Series 2 Base Gravity Feed Gun
Anest Iwata LS400 Green Standard Series 2 Base Gravity Feed Gun
Anest Iwata LS400 Series 2 Green Technical Data

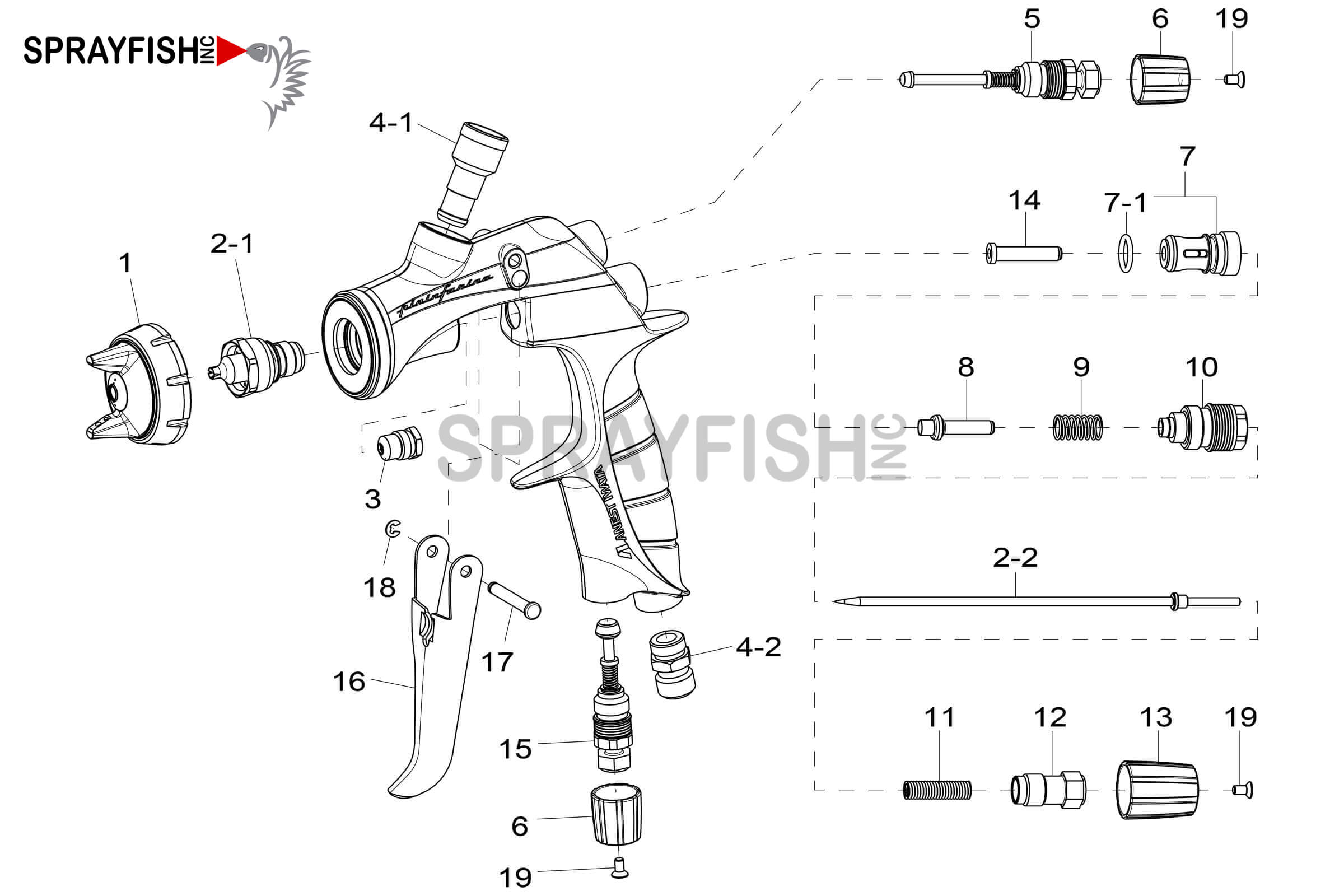

LS-400 Gun Parts Breakdown LS-400 Gun Parts Breakdown
Gun Parts Breakdown

LS-400

LS-400 Spare Parts

View all

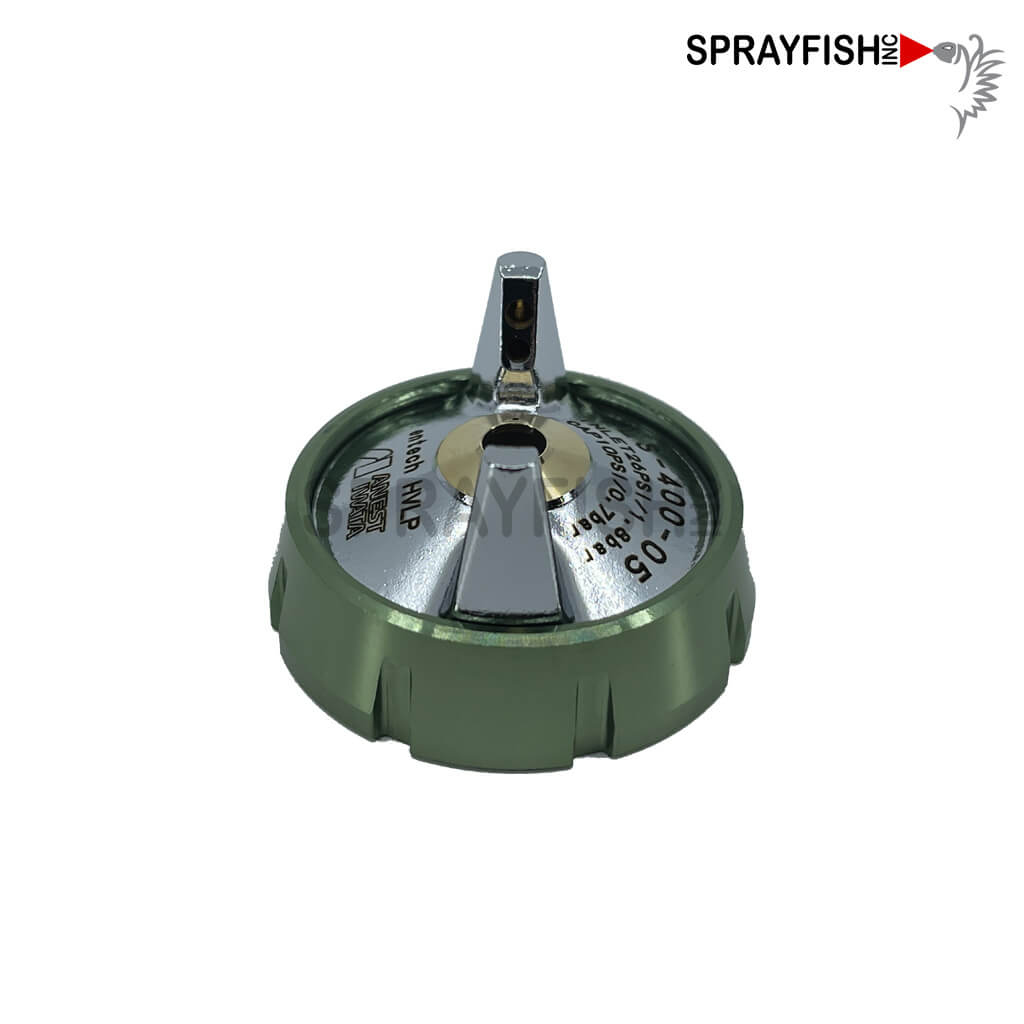

Iwata LS-400 Air Cap Set 05
#1 IWATA LS-400 AIR CAP SET 05
Anest Iwata

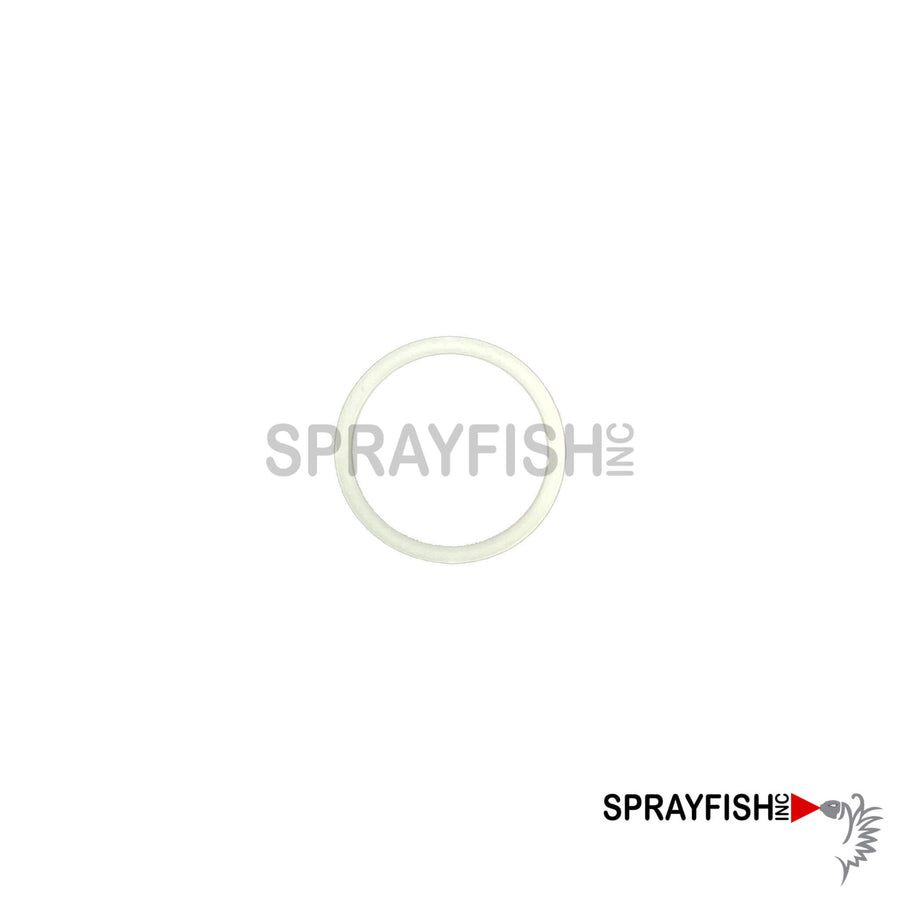

Iwata LS-400 Aircap O-Ring White
#1-A IWATA LS-400 AIR CAP GASKET, WHITE
Anest Iwata

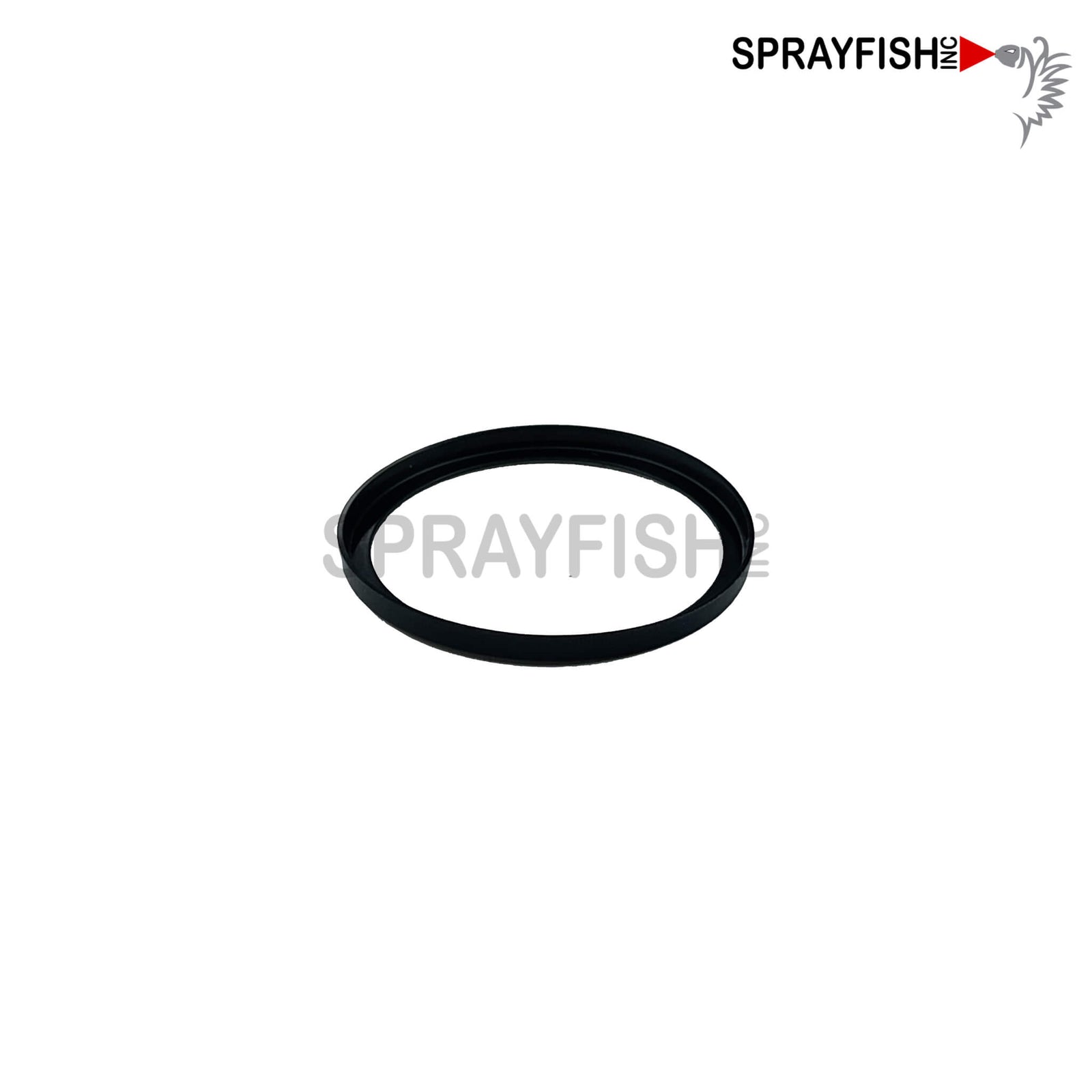

Iwata LS-400 Aircap L Ring Black
#1-B IWATA LS-400 AIR CAP GASKET, BLACK
Anest Iwata

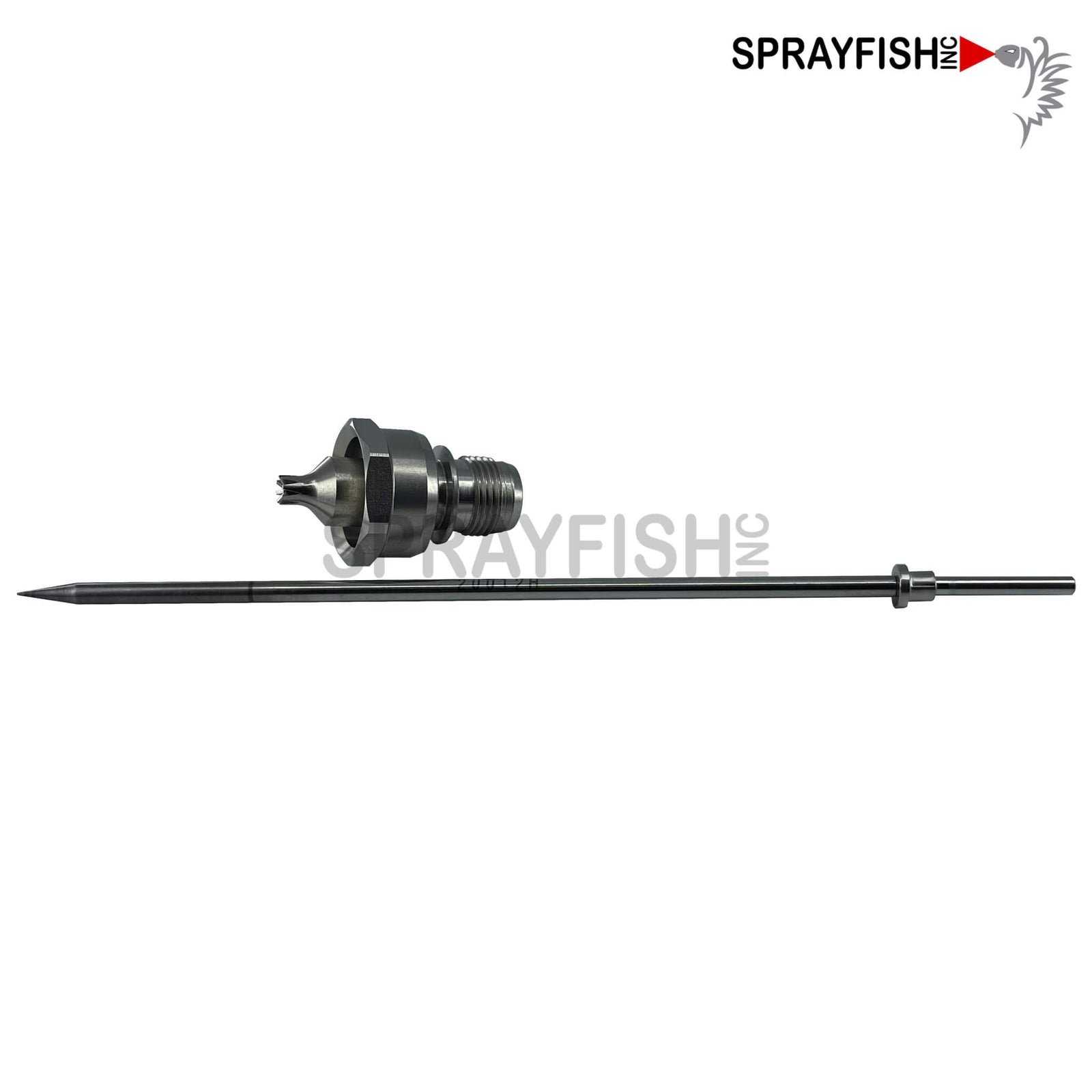

#2 IWATA LS-400 NOZZLE SET, 1.2 MM, LV
Anest Iwata
#2 IWATA LS-400 NOZZLE SET, 1.3 MM, LV
Anest Iwata
#2 IWATA LS-400 NOZZLE SET, 1.4 MM, LV
Anest Iwata
#2 IWATA LS-400 NOZZLE SET, 1.5 MM, LV
Anest Iwata

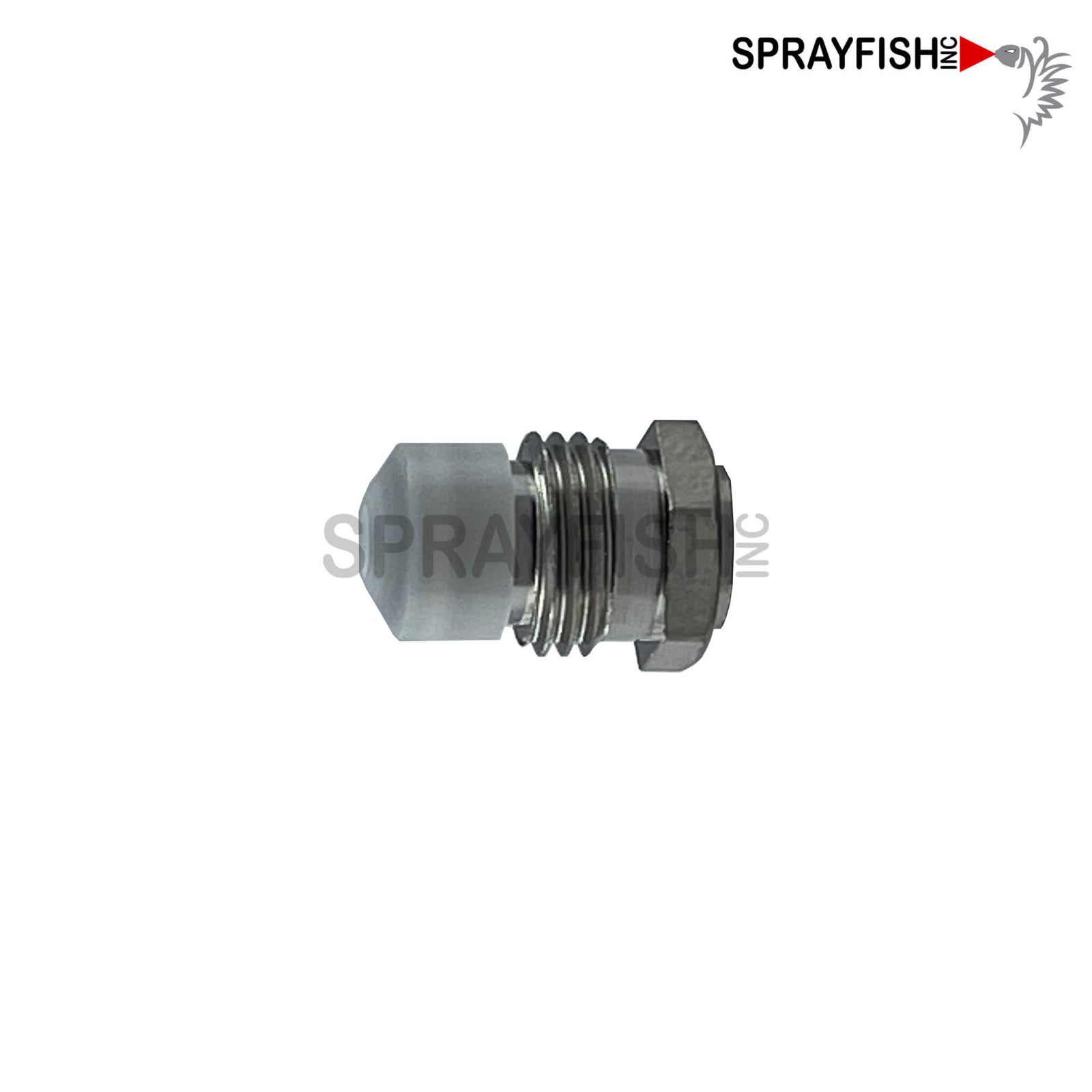

Iwata LS-400 Needle Packing Cartridge
#3 IWATA LS-400 CARTRIDGE PACKING
Anest Iwata

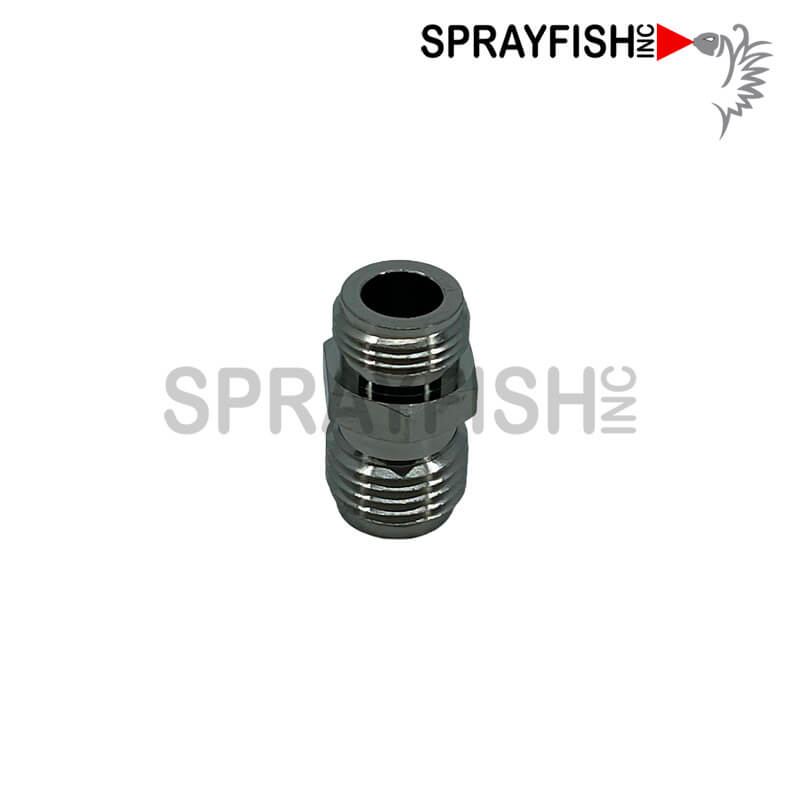

#4-1 IWATA LS-400 FLUID NIPPLE
Anest Iwata
Iwata LS-400 Air Nipple, 1/4
#4-2 IWATA LS-400 AIR NIPPLE
Anest Iwata

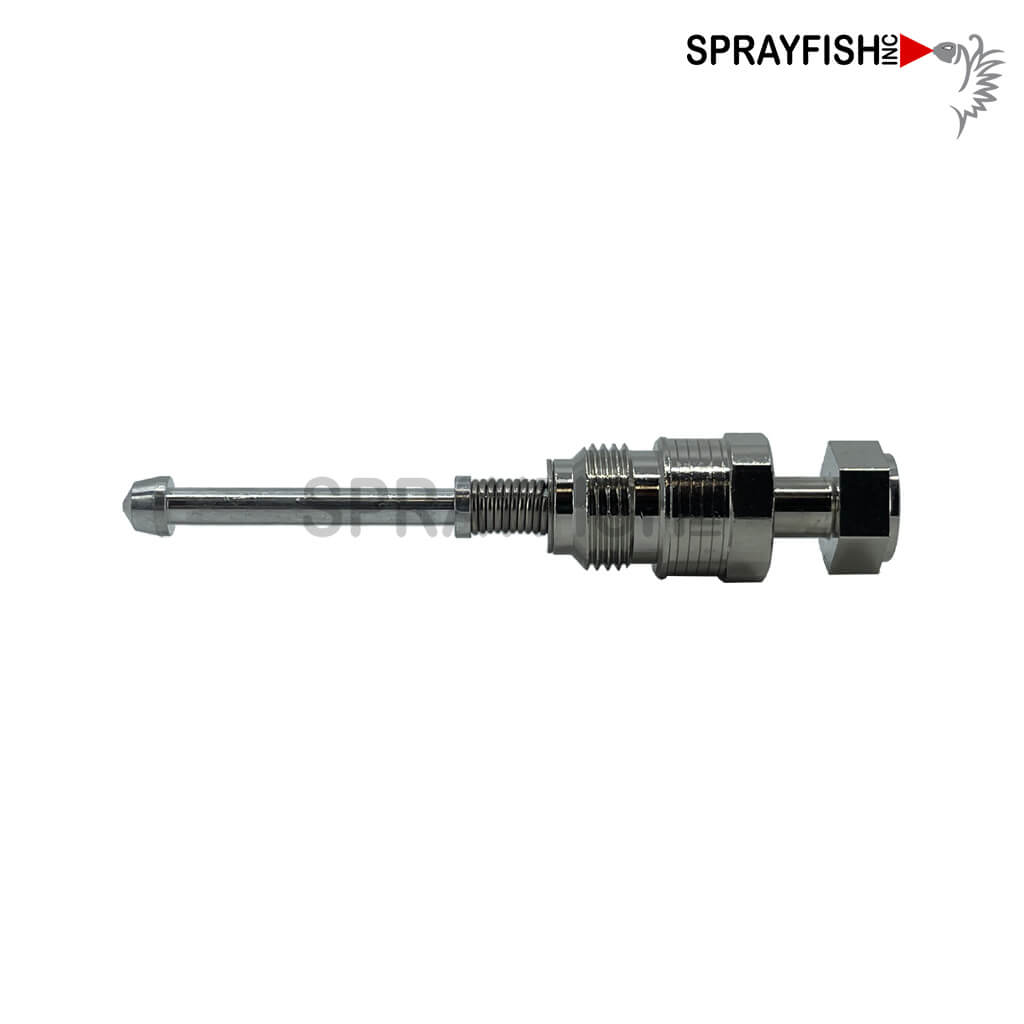

LS-400 Pattern Adjust Set
#5 IWATA LS-400 PATTERN ADJUST SET
Anest Iwata

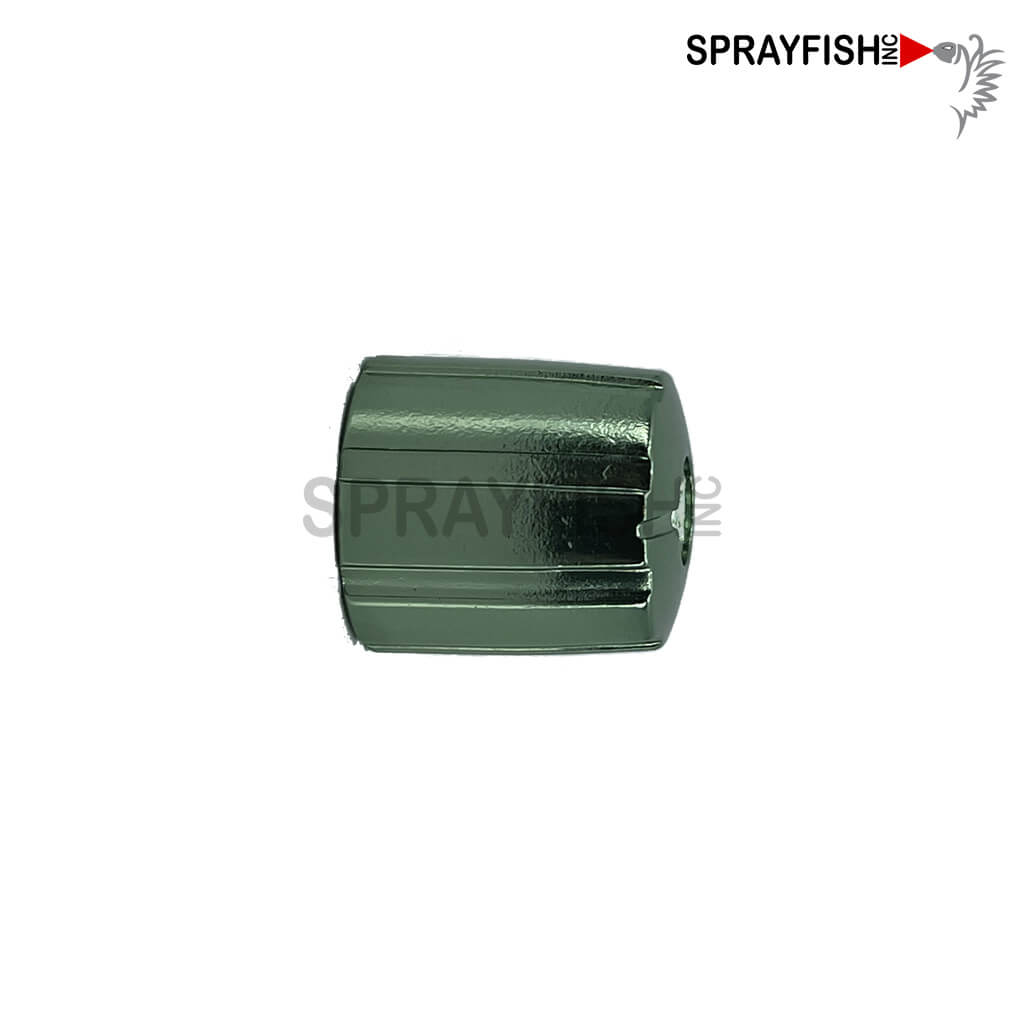

LS-400 Adjust Knob, Green
#6 IWATA LS-400 ADJUST KNOB, GREEN
Anest Iwata

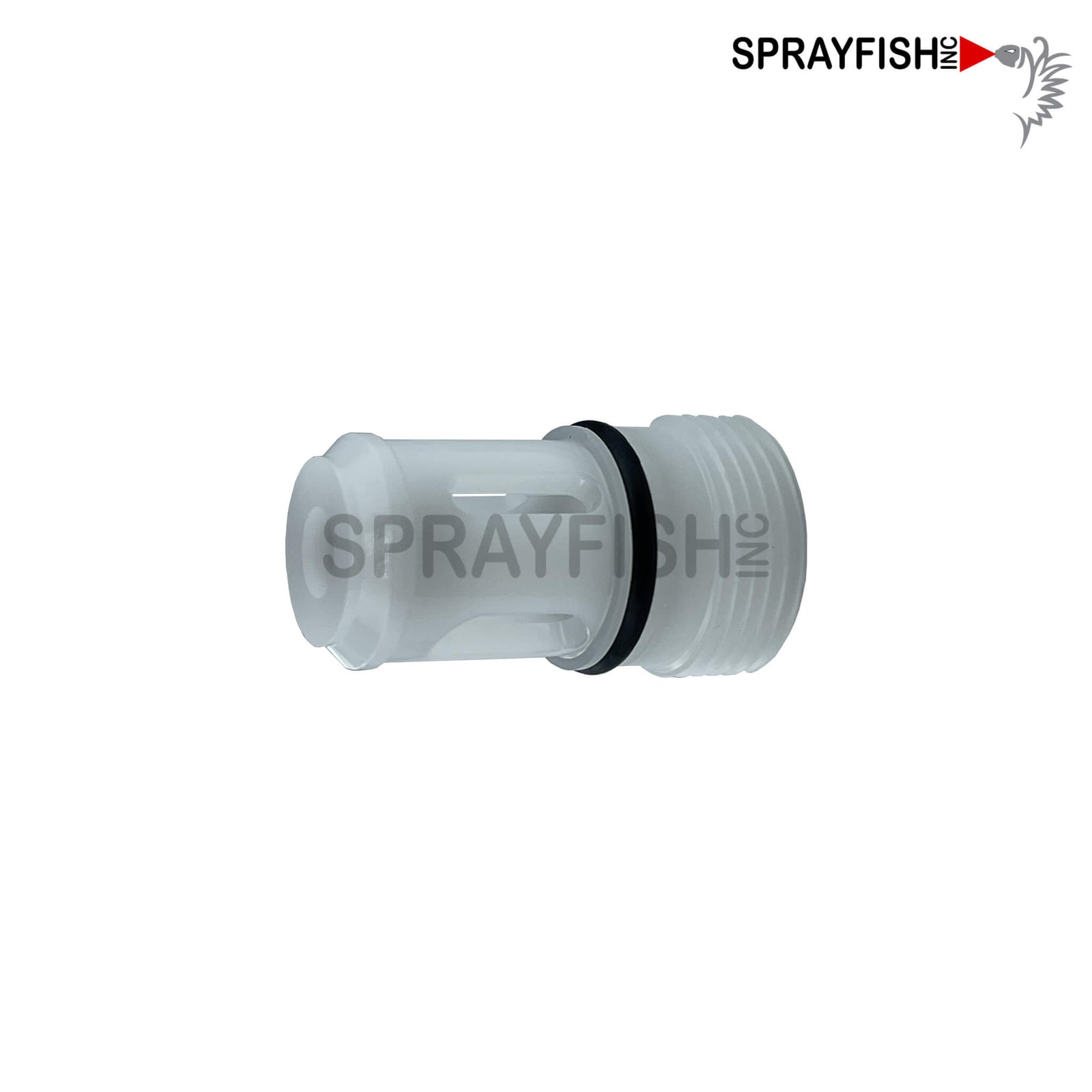

Iwata LS-400 Air Valve Seat Set with Seal
#7 IWATA LS-400 AIR VALVE SEAT SET
Anest Iwata

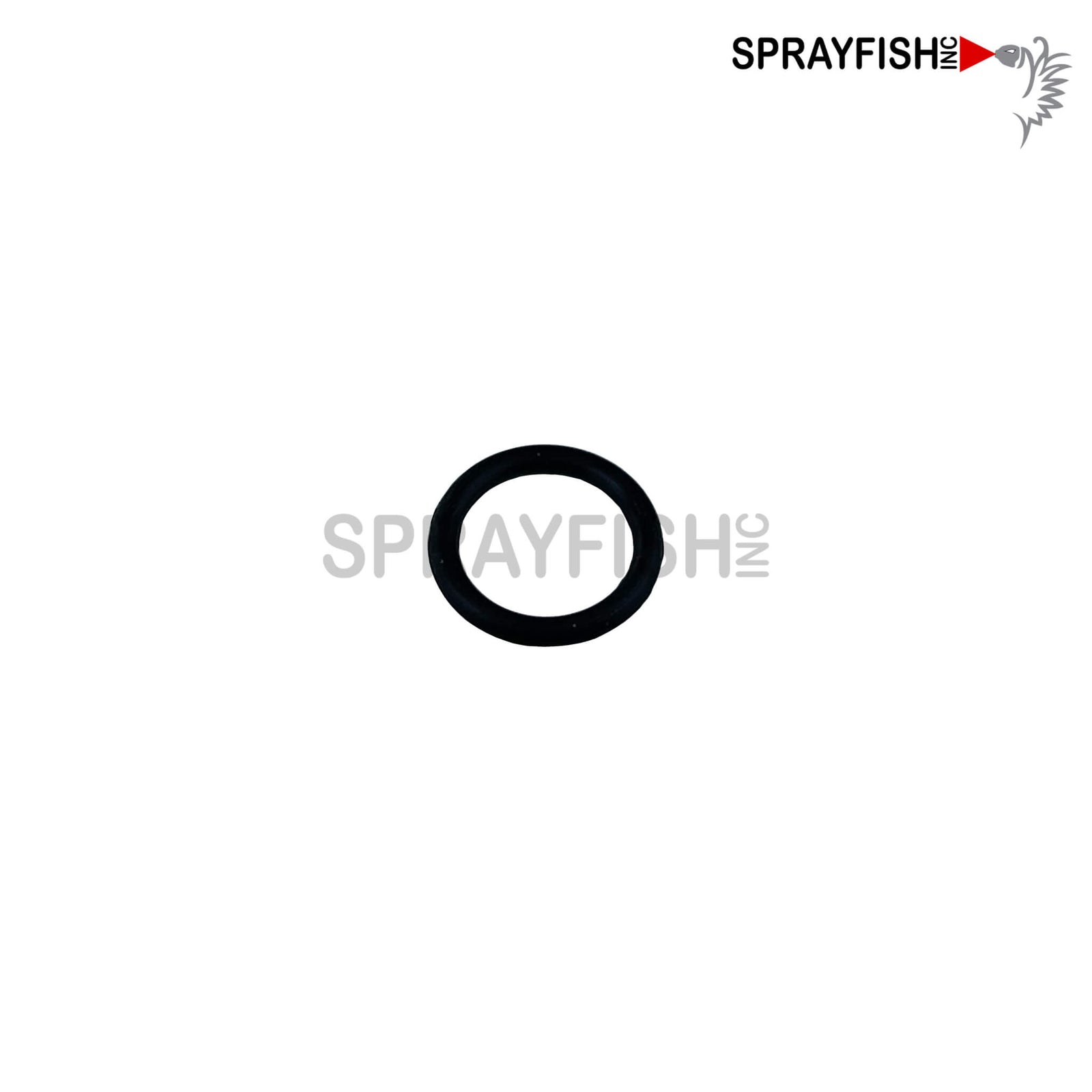

Iwata LS-400 Air Valve O-Ring Black
#7-1 IWATA LS-400 O-RING
Anest Iwata

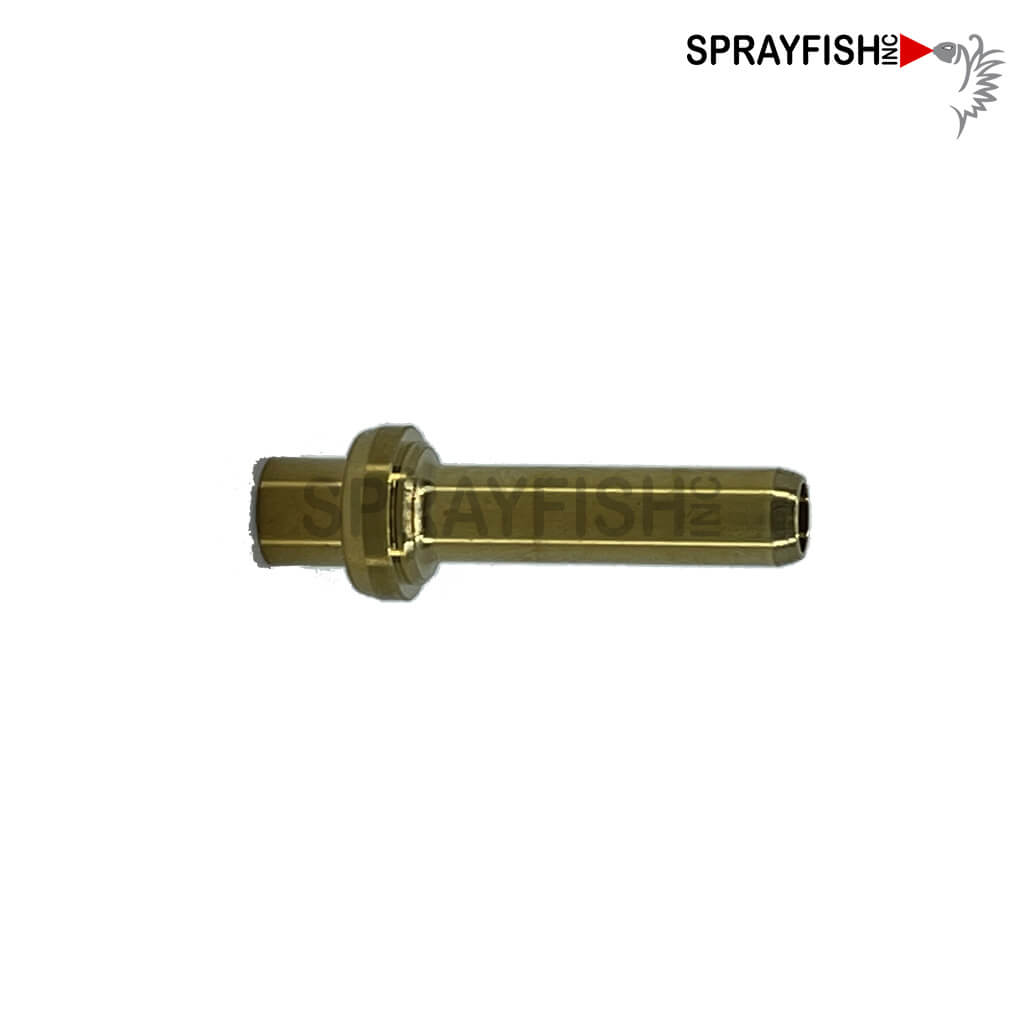

LS-400 Air Valve
#8 IWATA LS-400 AIR VALVE
Anest Iwata

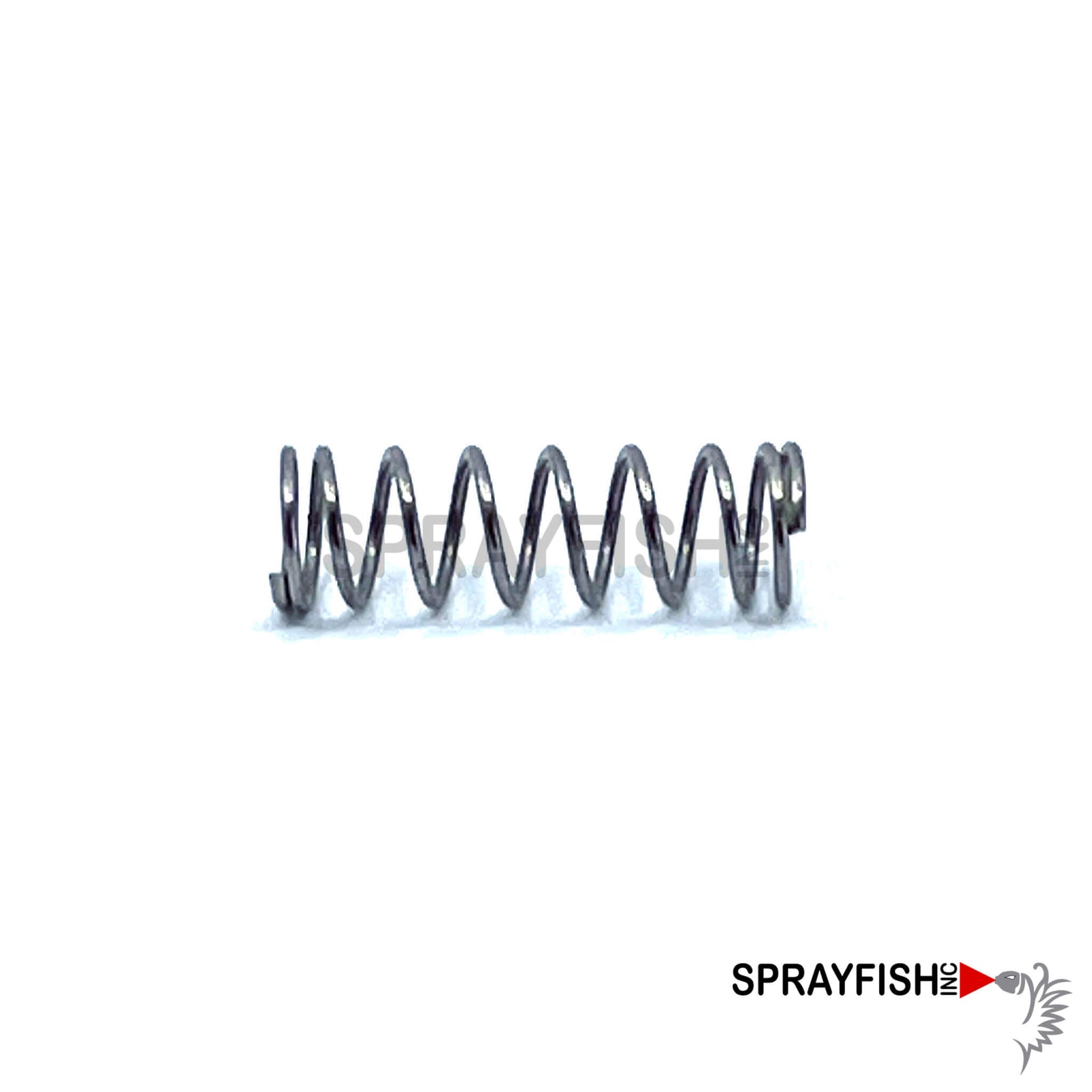

Iwata LS-400 Air Valve Spring
#9 IWATA LS-400 AIR VALVE SPRING
Anest Iwata

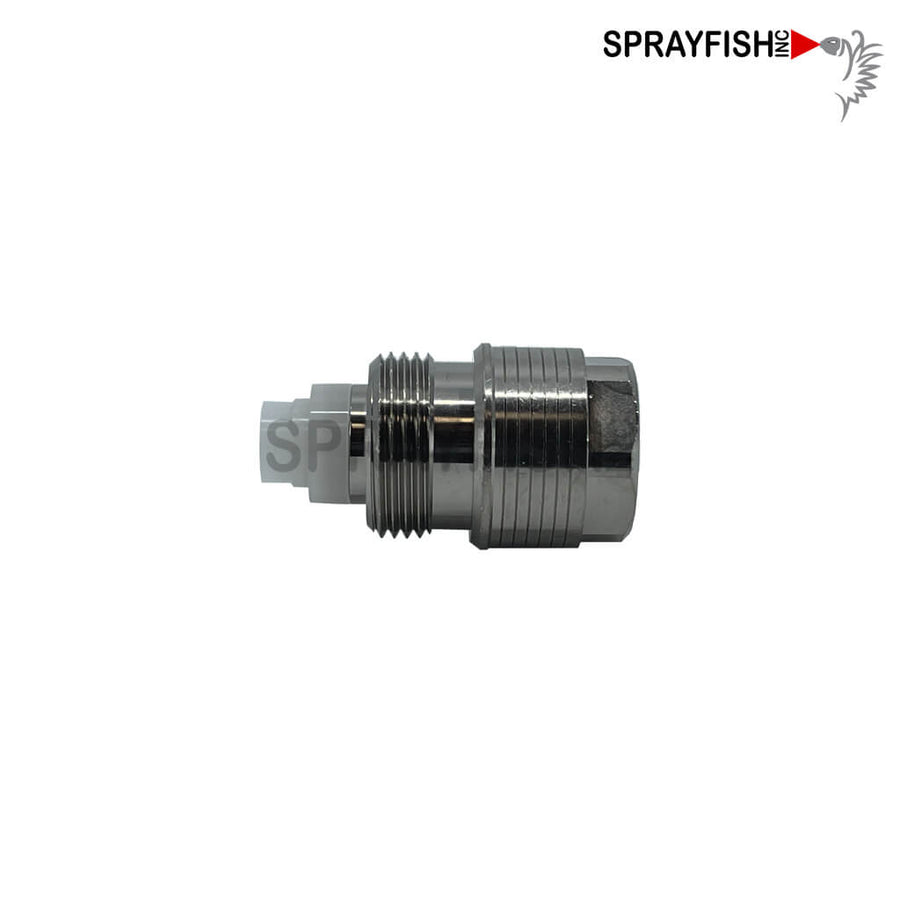

LS-400 Fluid Adjust Guide Set
#10 IWATA LS-400 FLUID ADJUST GUIDE SET
Anest Iwata

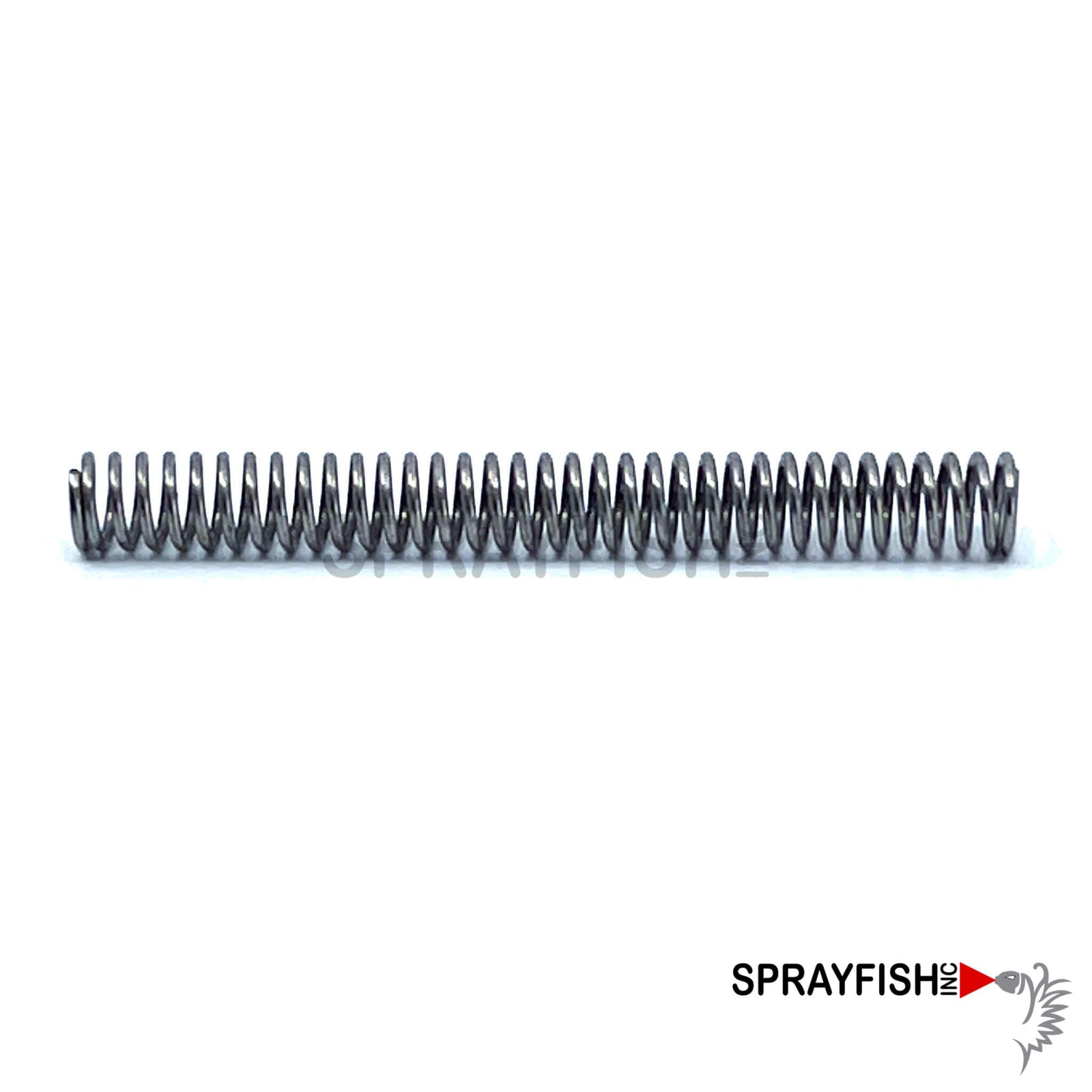

Iwata LS-400 Fluid Needle Spring
#11 IWATA LS-400 FLUID NEEDLE SPRING
Anest Iwata

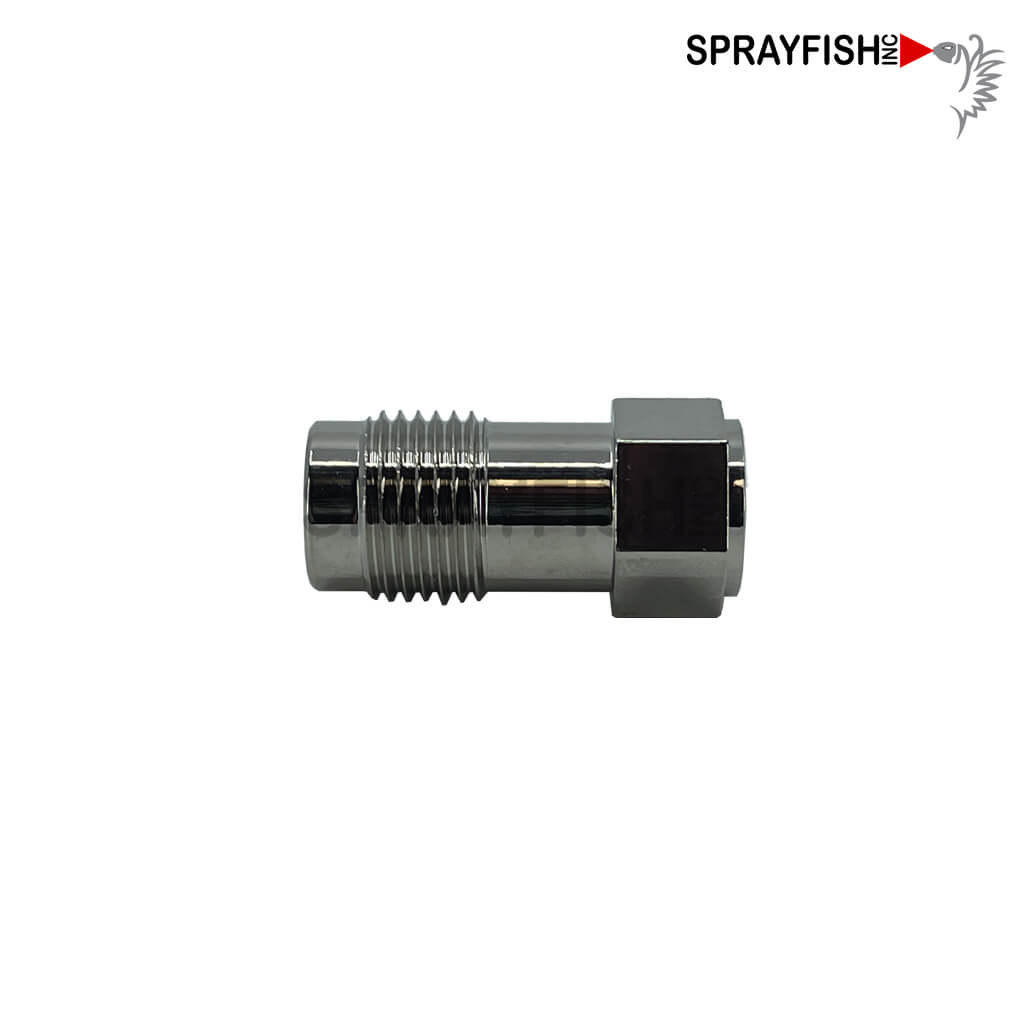

LS-400 Fluid Adjust Screw Set
#12 IWATA LS-400 FLUID ADJUST SCREW SET
Anest Iwata

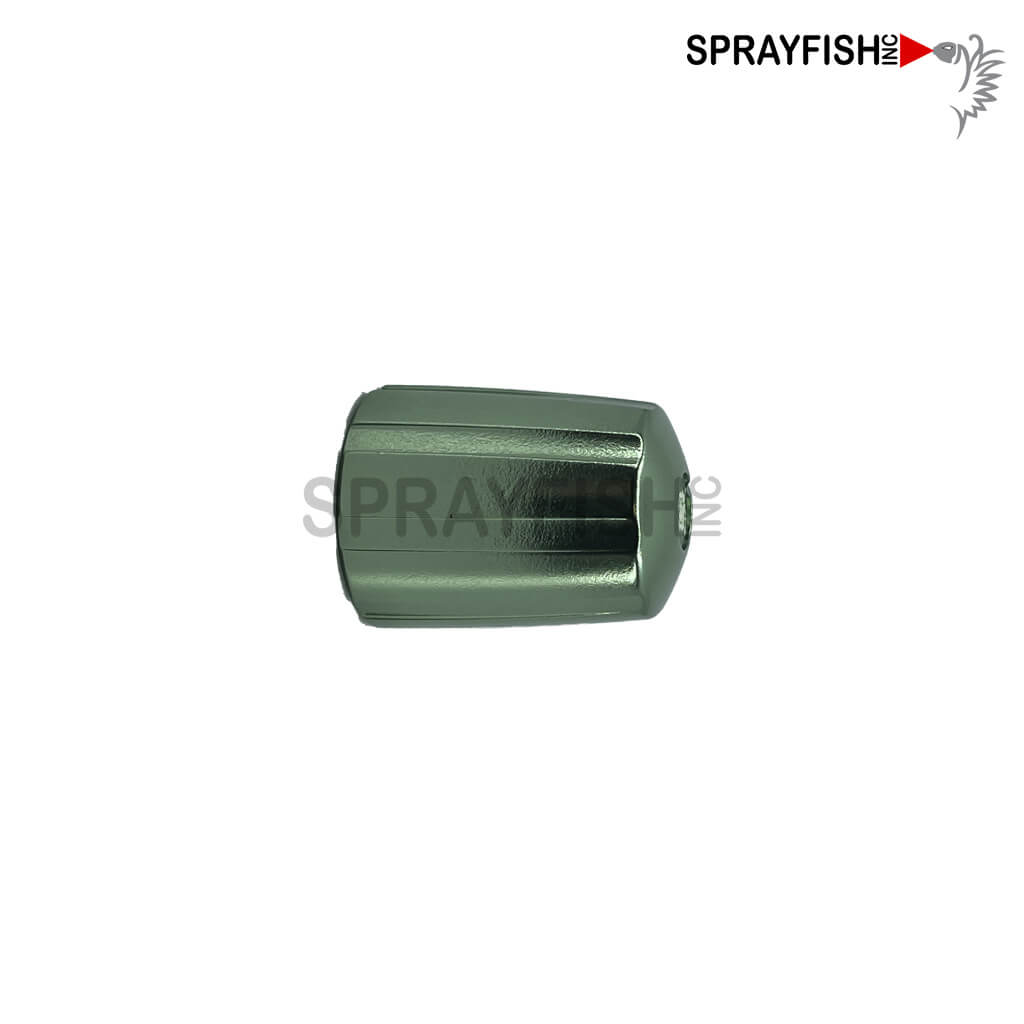

LS-400 Fluid Adjust Knob, Green
#13 IWATA LS-400 FLUID ADJUST KNOB, GREEN
Anest Iwata

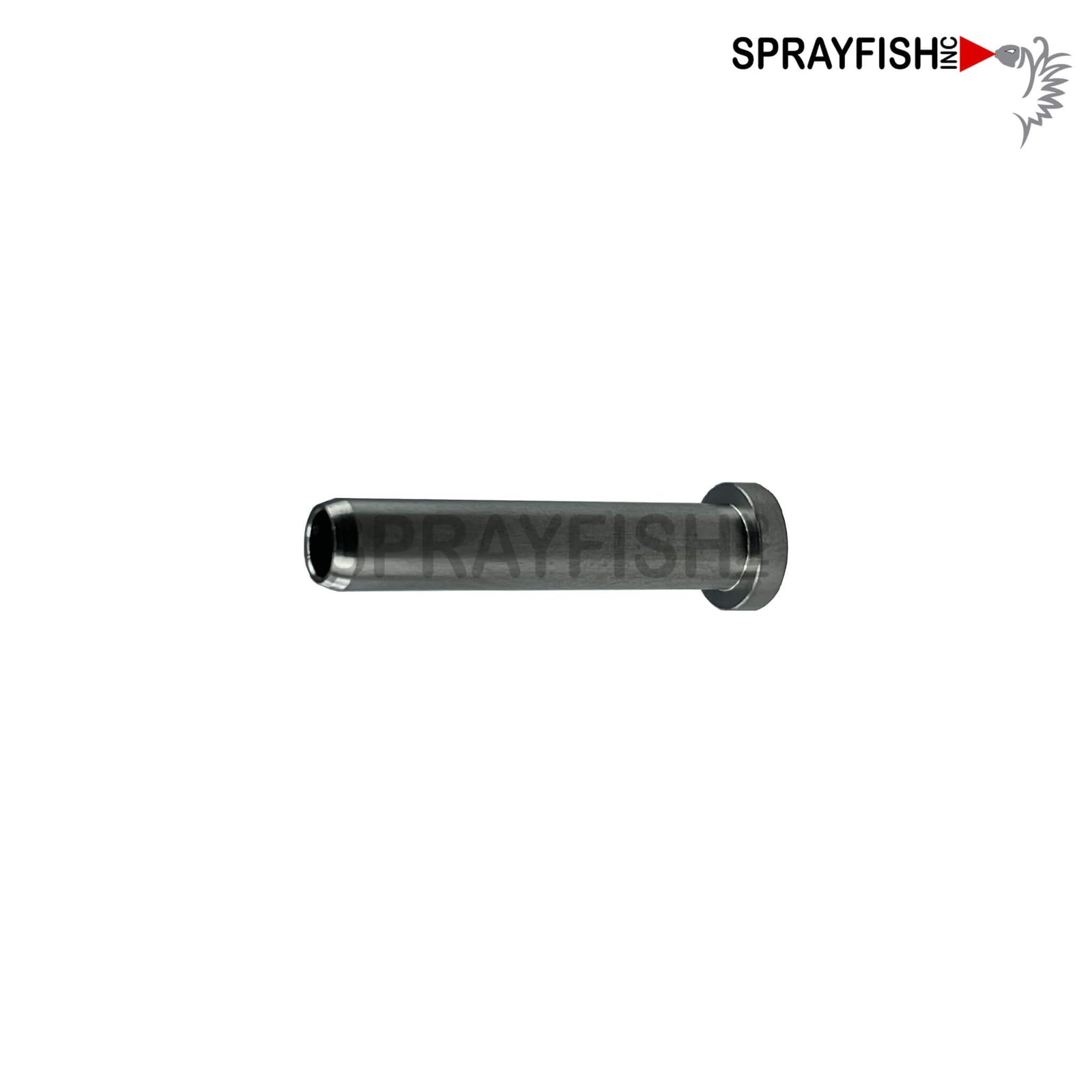

Iwata LS-400 Air Valve Shaft
#14 IWATA LS-400 AIR VALVE SHAFT
Anest Iwata

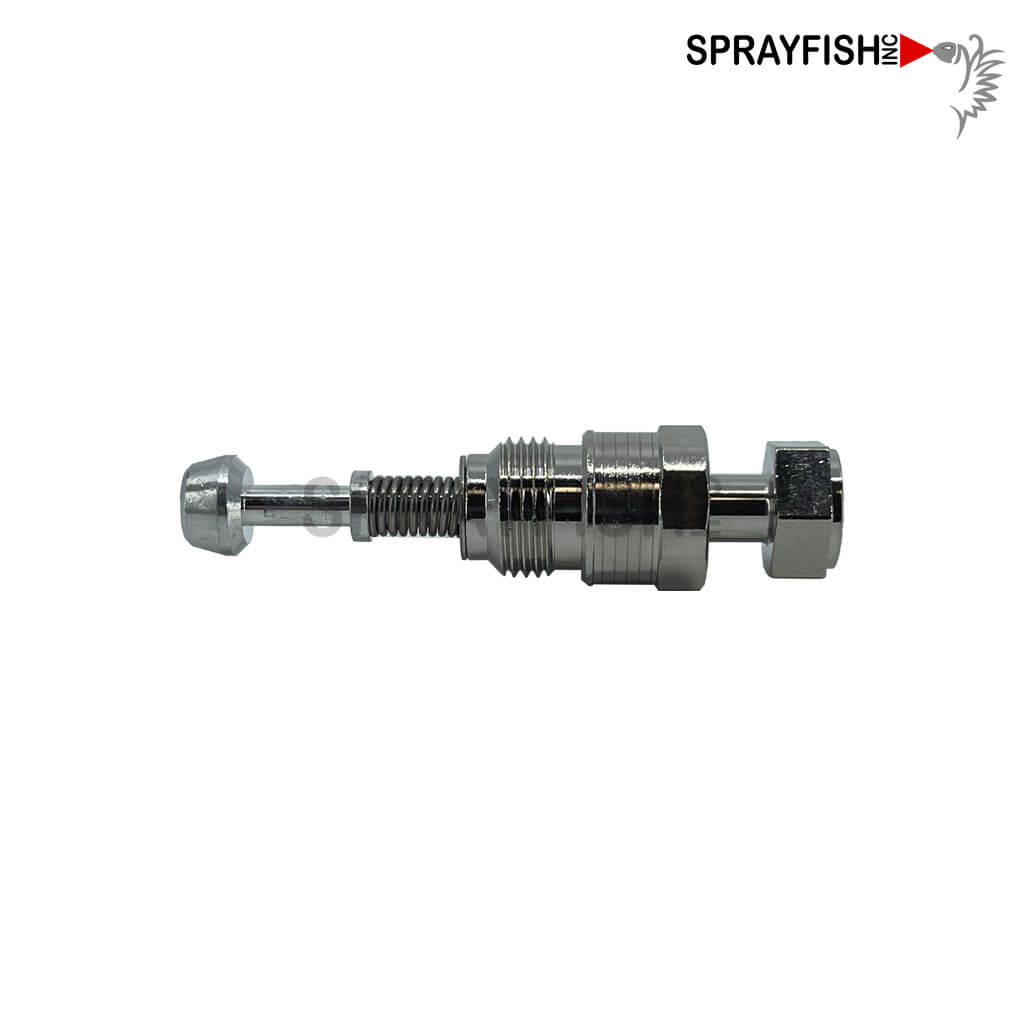

LS-400 Air Adjust Set
#15 IWATA LS-400 AIR ADJUST SET
Anest Iwata

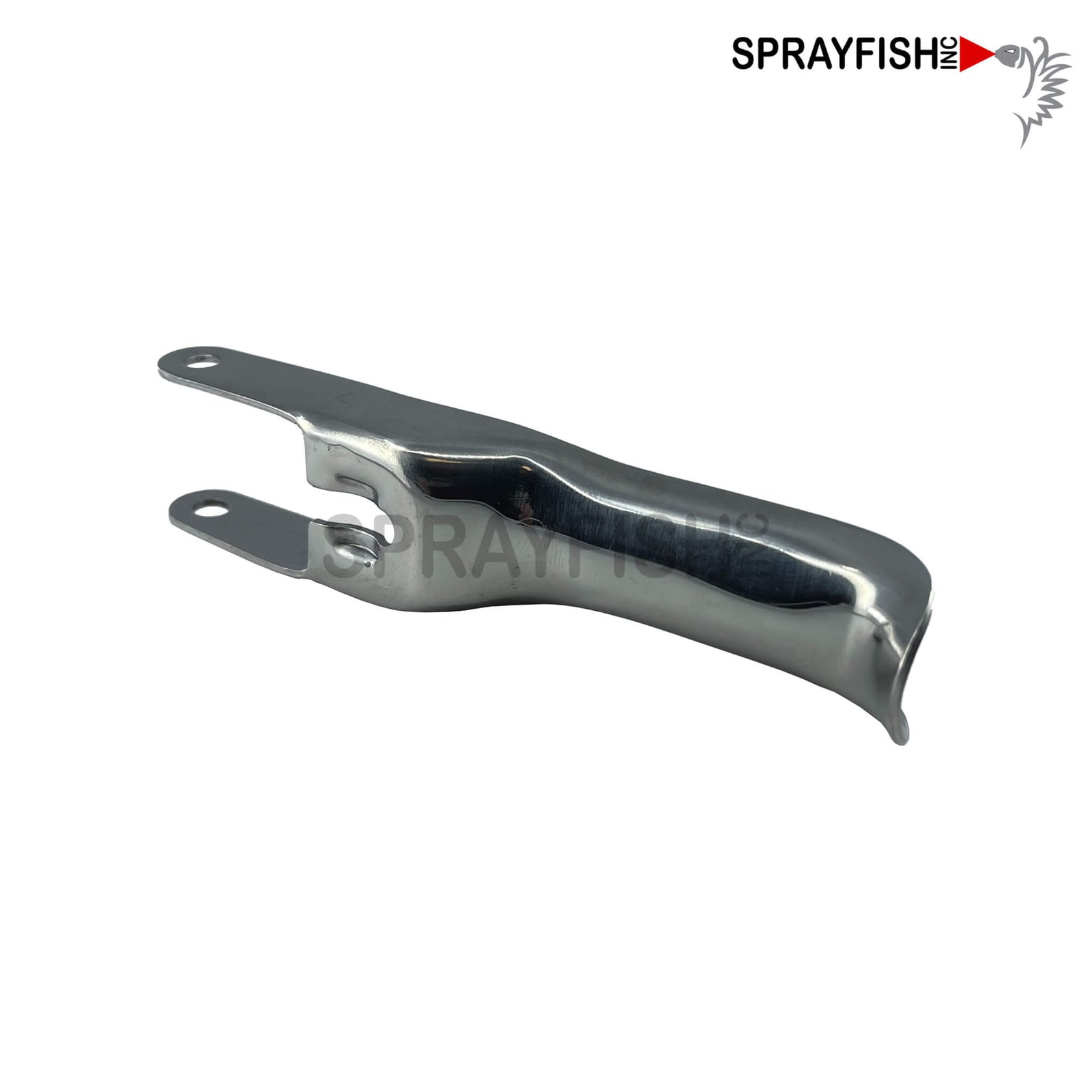

Iwata LS-400 Gun Trigger
#16 IWATA LS-400 TRIGGER
Anest Iwata

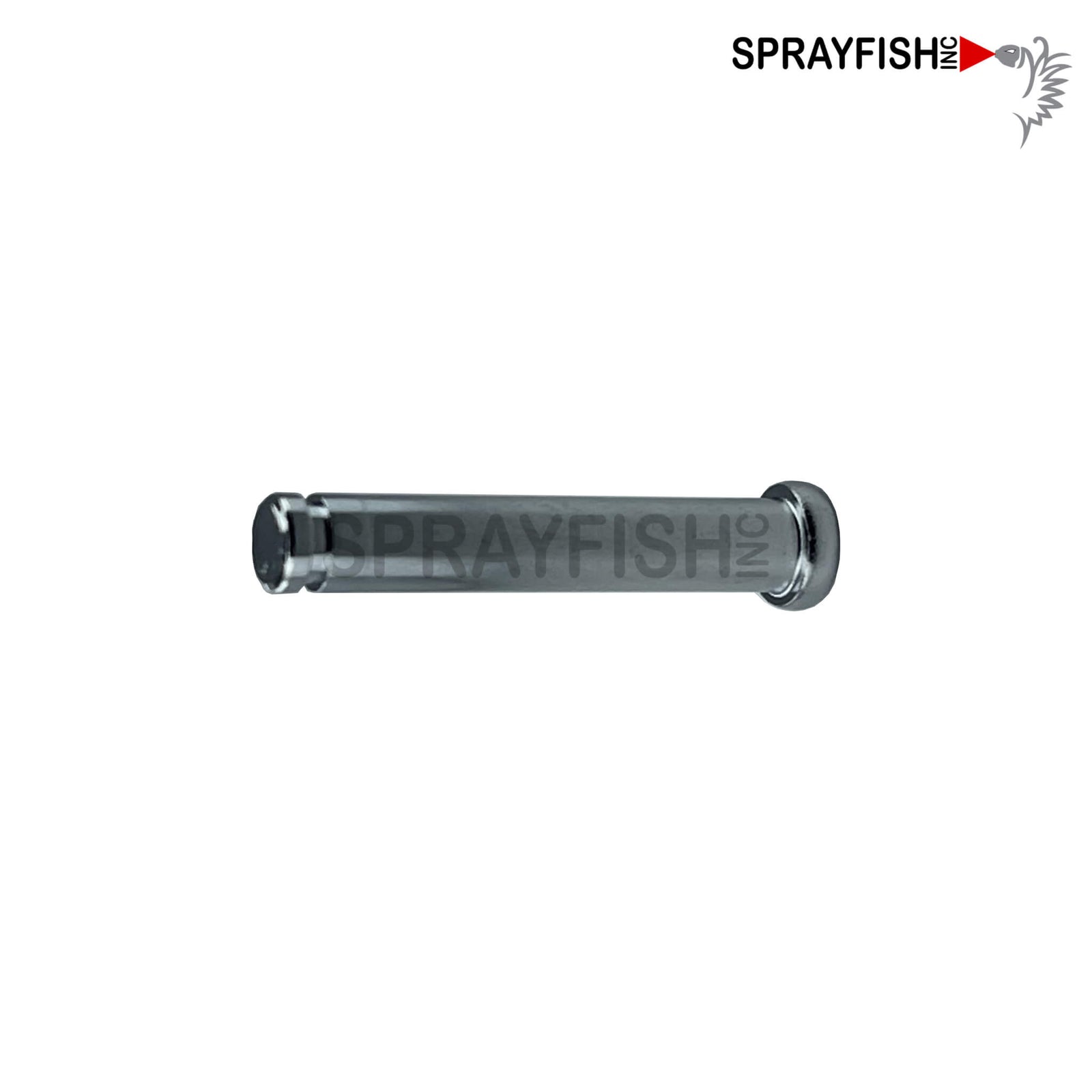

Iwata LS-400 Trigger Stud
#17 IWATA LS-400 TRIGGER STUD
Anest Iwata

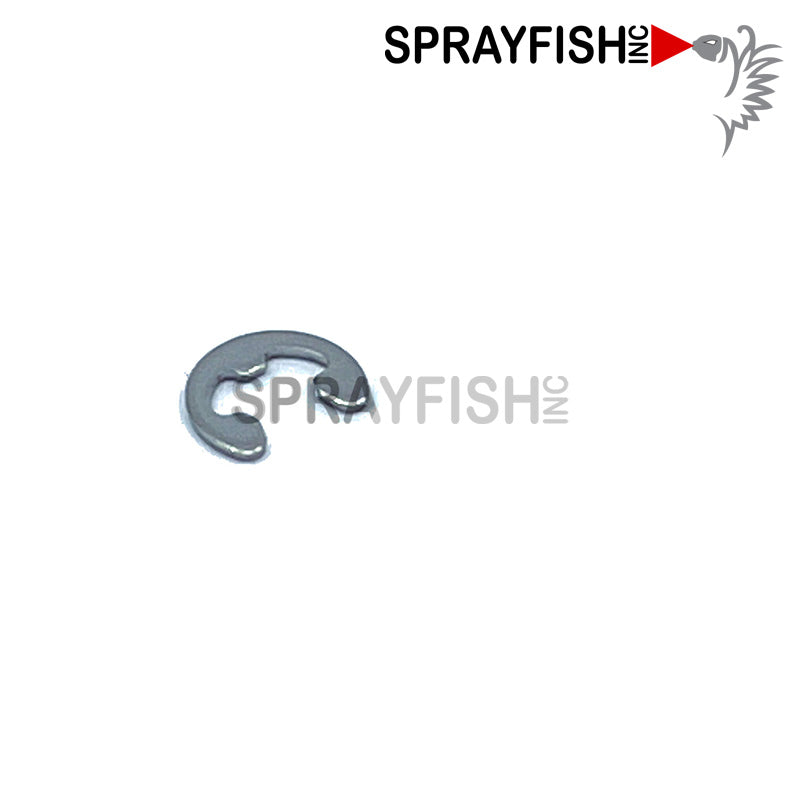

Anest Iwata LS-400 E-Stopper for Gun Trigger 96612025
#18 IWATA LS-400 E STOPPER
Anest Iwata

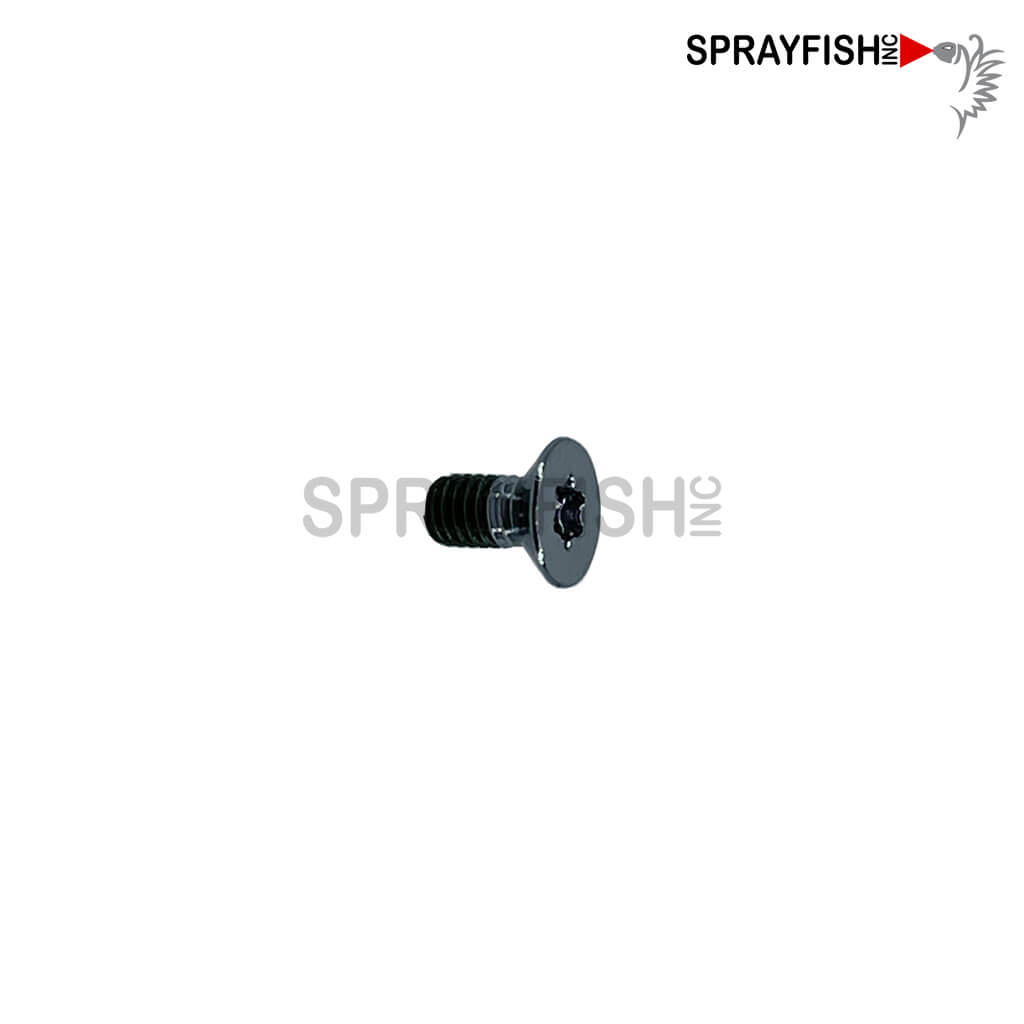

LS-400 Star Flat Head Bolt
#19 IWATA LS-400 STAR FLAT HEAD BOLT
Anest Iwata

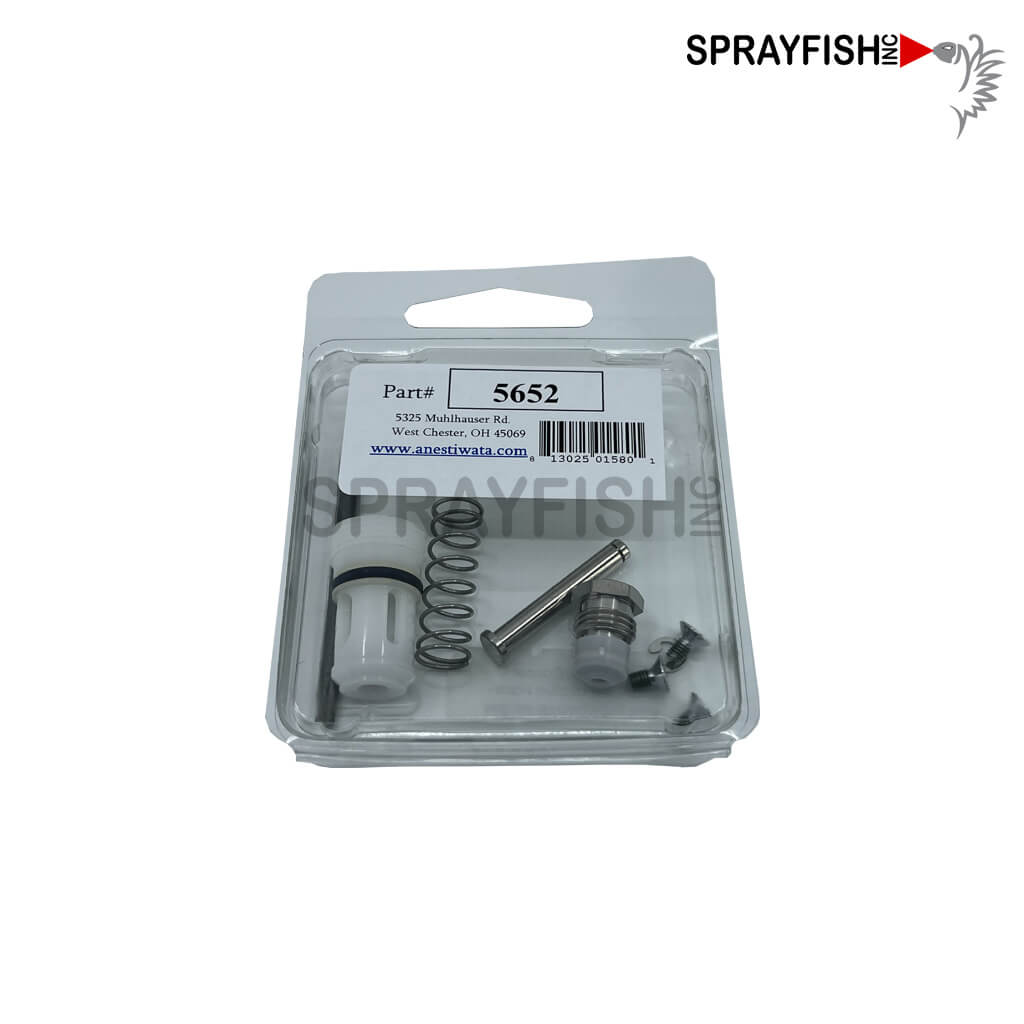

Repair Service Kit (Includes: 3, 7, 9, 11, 17, & 18)
IWATA REPAIR SERVICE KIT
Anest Iwata

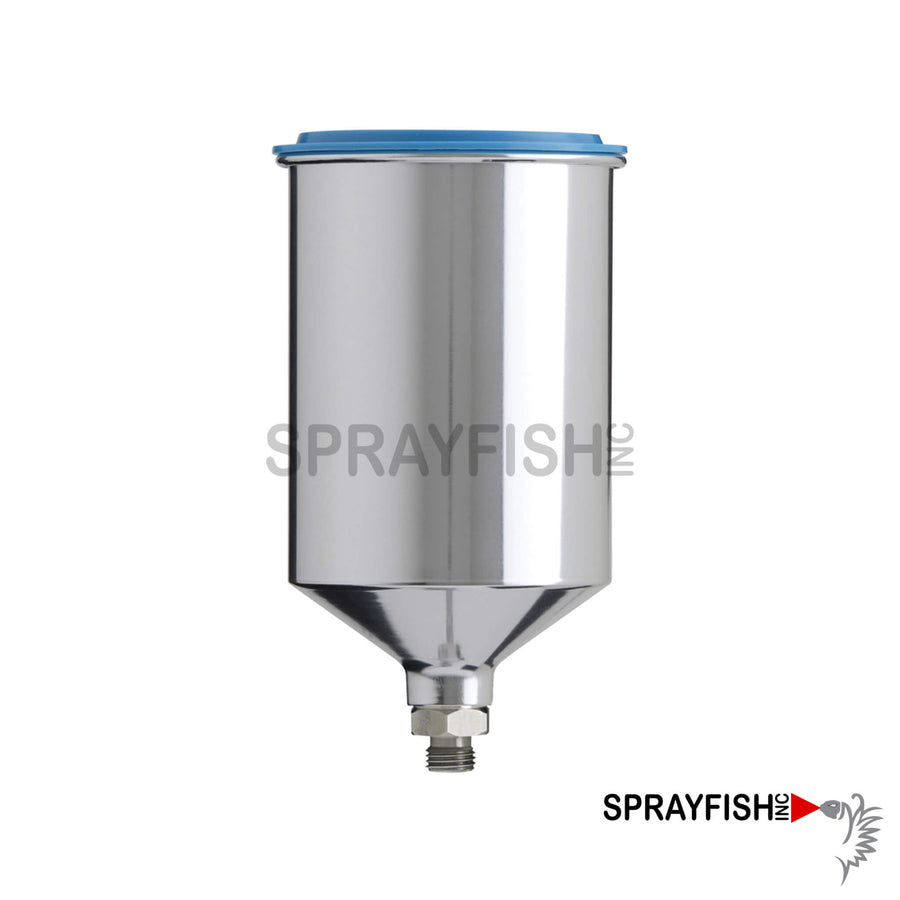

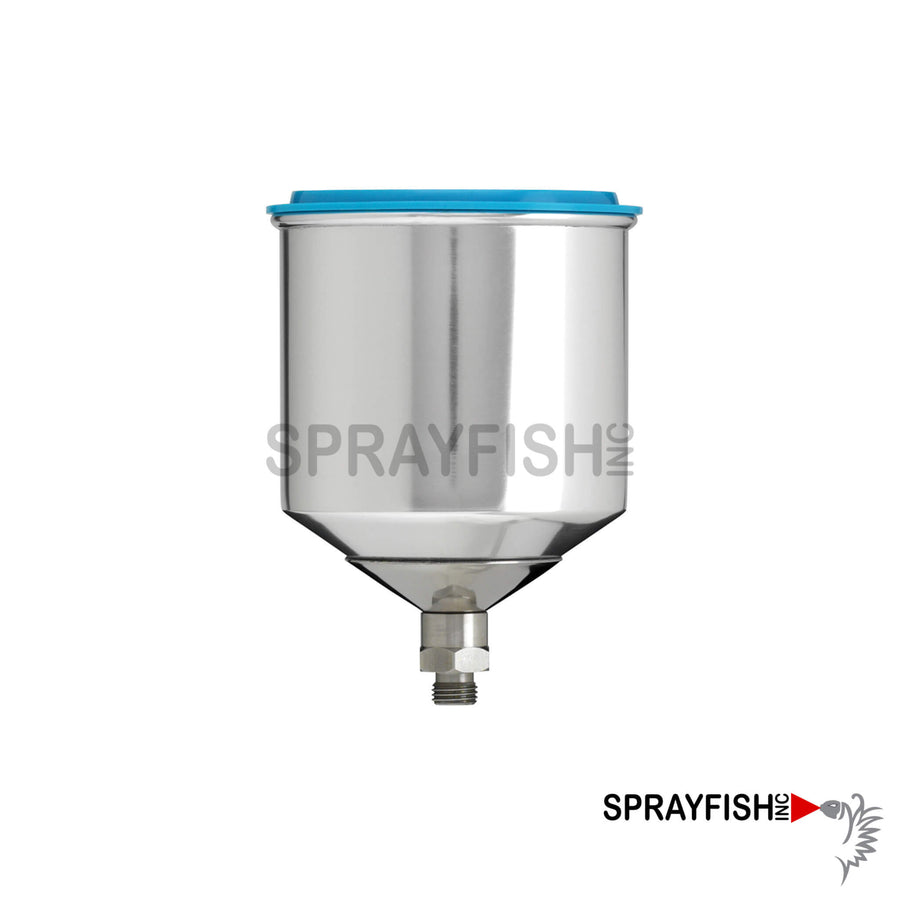

Iwata LS-400 Aluminum Gravity Feed Cup PCG4D2
IWATA 400 ML ALUMINUM PCG4D-2 CUP
Anest Iwata

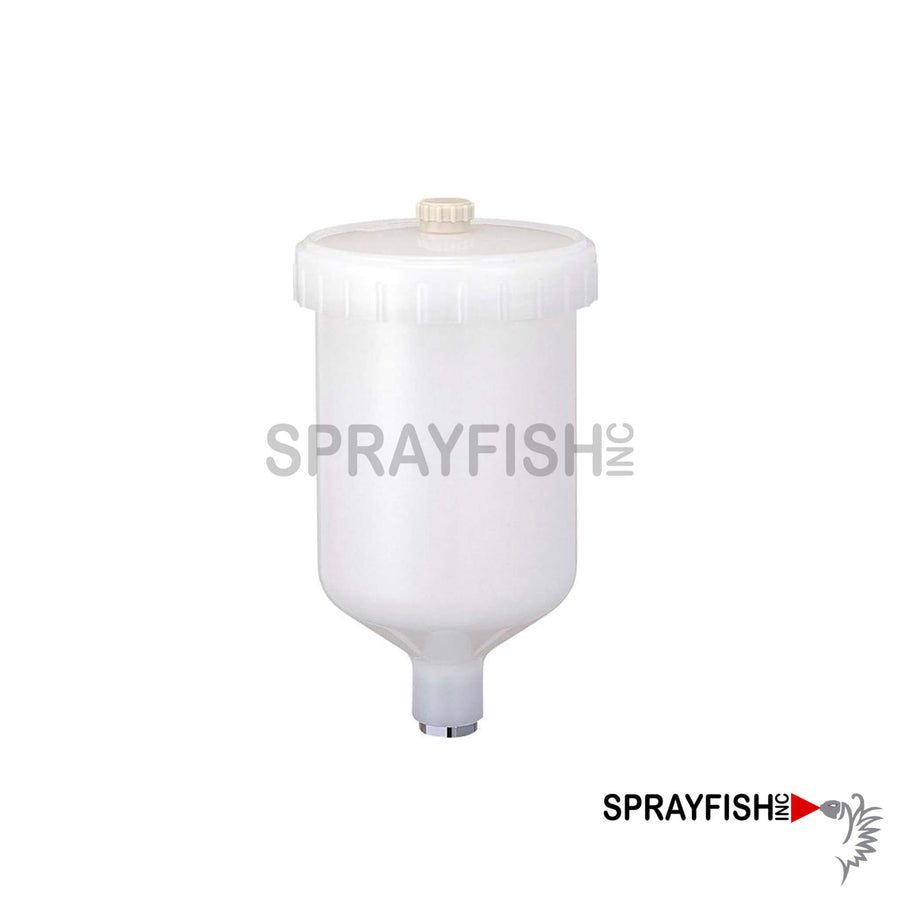

Iwata LS-400 Plastic Gravity Feed Cup
IWATA 600 ML PLASTIC PCG600 P-2 CUP
Anest Iwata
Iwata LS-400 Aluminum Gravity Feed Cup PCG7D2
IWATA 700 ML ALUMINUM PCG7D-2 CUP
Anest Iwata

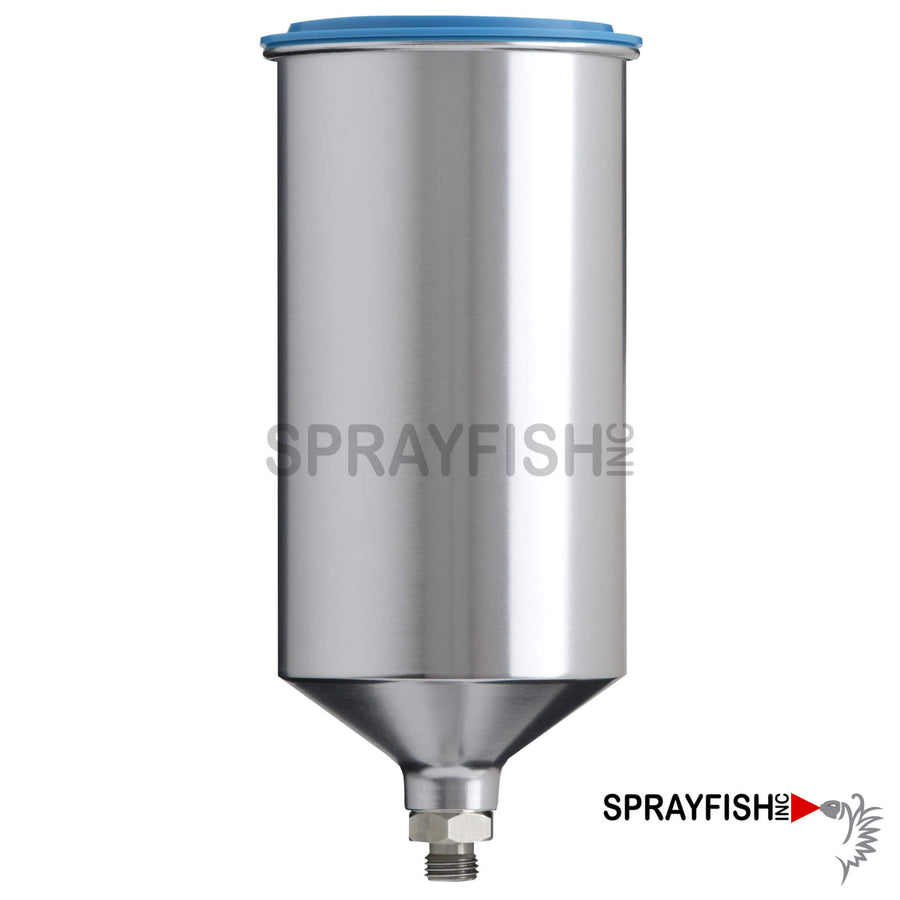

Iwata LS-400 Aluminum Gravity Feed Cup PCCG10D2
IWATA 1000 ML ALUMINUM PCG10D-2 CUP
Anest Iwata
Teflon Fish Grease PTFE Replaces Kremlin 560-440-101
TEFLON PTFE FISH GREASE, 21G TUBE
Sprayfish, Inc
Anest Iwata FFS Disposable Cup Adapter, I-10, #27520. This adapter fits the LPH-80 Spray Gun and is used for the FFS System.
IWATA FFS DISPOSABLE CUP ADAPTER, I-10, LPH-300, WS-400, LS-400
Anest Iwata
Anest Iwata Fast Flow System (FFS), 400ml/13oz, Sealed Spray Cup Kit. Kit includes (50) Lids and Liners, (1) Hard Cup, (1) Retaining Ring, (20) Storage Plugs.
Anest Iwata Fast Flow System (FFS), 400ml/13oz, Sealed Spray Cup Kit. Kit includes (50) Lids and Liners, (1) Hard Cup, (1) Retaining Ring, (20) Storage Plugs.
IWATA FFS DISPOSABLE CUP SYSTEM, 13OZ/400ML, 50 LIDS & LINERS, 1 HARD CUP, 1 RETAINING COLOR, 20 PLUGS
Anest Iwata
Anest Iwata Fast Flow System (FFS), 650ml/22oz, Sealed Spray Cup Kit, #27502 or 27503. Kit includes (50) Lids and Liners, (1) Hard Cup, (1) Retaining Ring, (20) Storage Plugs.
Anest Iwata Fast Flow System (FFS), 650ml/22oz, Sealed Spray Cup Kit, #27502 or 27503. Kit includes (50) Lids and Liners, (1) Hard Cup, (1) Retaining Ring, (20) Storage Plugs.
IWATA FFS DISPOSABLE CUP SYSTEM, 22OZ/650ML, 50 LIDS & LINERS, 1 HARD CUP, 1 RETAINING COLOR, 20 PLUGS
Anest Iwata
Anest Iwata Fast Flow System (FFS), 850ml/29oz, Sealed Spray Cup Kit, #27504. Kit includes (50) Lids and Liners, (1) Hard Cup, (1) Retaining Ring, (20) Storage Plugs.
Anest Iwata Fast Flow System (FFS), 850ml/29oz, Sealed Spray Cup Kit, #27504. Kit includes (50) Lids and Liners, (1) Hard Cup, (1) Retaining Ring, (20) Storage Plugs.
IWATA FFS DISPOSABLE CUP SYSTEM, 29OZ/850ML, 50 LIDS & LINERS, 1 HARD CUP, 1 RETAINING COLOR, 20 PLUGS
Anest Iwata
SEM VCS Disposable Cup System Adapter, #10, for Anest Iwata AZ3 HTE2, Supernova LS-400, and Supernova WS-400, 92510
VCS CUP SYSTEM ADAPTER, #10, FOR IWATA AZ3, LS-400, WS-400
SEM VCS
SEM VCS Disposable Cup System, 22oz Hard Cups, 2-Pack, 92110
VCS CUP SYSTEM, 22oz HARD CUPS, 2-PACK
SEM VCS
SEM VCS Disposable Cup System, (50) 22oz Liners, Lids, (1) Hard Cup, and (10) Caps, 92730
SEM VCS Disposable Cup System, Lids and Caps, Fits All VCS Cups
VCS CUP SYSTEM, (50) 22oz LINERS, LIDS, (1) HARD CUP, (10) CAPS
SEM VCS
SEM VCS Disposable Cup System Metal Dispenser for Liners and Lids, 92430
VCS CUP SYSTEM METAL DISPENSER FOR LINERS AND LIDS
SEM VCS

LS-400
