Open-Faced Cross-Draft Paint Spray Booths

Open-Face Booths are designed for exhausting dust, harmful vapors, and paint fumes in an economical package. The filtration system that is included traps over-spray before it can be released into the plenum and up your exhaust stack.

Our open-face paint booth enclosures are thoughtfully and carefully designed and manufactured in order to help automotive, woodworking, and other businesses save valuable time, and most importantly, register higher revenue growth through energy efficient equipment.

Advanced Technology Features

  • Single-Stage Filtration System for Clean Spraying Operations
  • Built with 18 Gauge Galvanized Steel | Powder Coating Optional
  • Includes Caulking, Nuts, Bolts, and Color-Corrected LED Lights
  • All Standard Open-Face Booth Models are ETL Listed
  • Available with Optional Control Panel System

Standard ETL Listed Open-Faced Series Specifications

Working Dimensions

 Filters Lights Fan CFM@.625"
6' W x 5' D x 8' H 12 1 24"/2HP 5,800
8' W x 7' D x 8' H 16 1 24"/2HP 7,650
10' W x 7' D x 8' H 20 2 24"/2HP 7,650
10' W x 10' D x 10' H 25 4 24"/3HP 10,100
12' W x 7' D x 8' H 24 2 24"/3HP 10,100
12' W x 15' D x 12' H 36 6

32"/5HP

17,200
14' W x 7' D x 8' H 28 2 32"/3HP 13,200
14' W x 7' D x 12' H 42 2 32"/7.5HP 20,800
16' W x 7' D x 12' H 54 3 32"/7.5HP 20,800
18' W x 7' D x 12' H 60 3 42"/5HP 21,800
20' W x 7' D x 12' H 66 4 42"/7.5HP

28,600

*Dimensional Information Varies - Please Request Data on Specific Models and Options

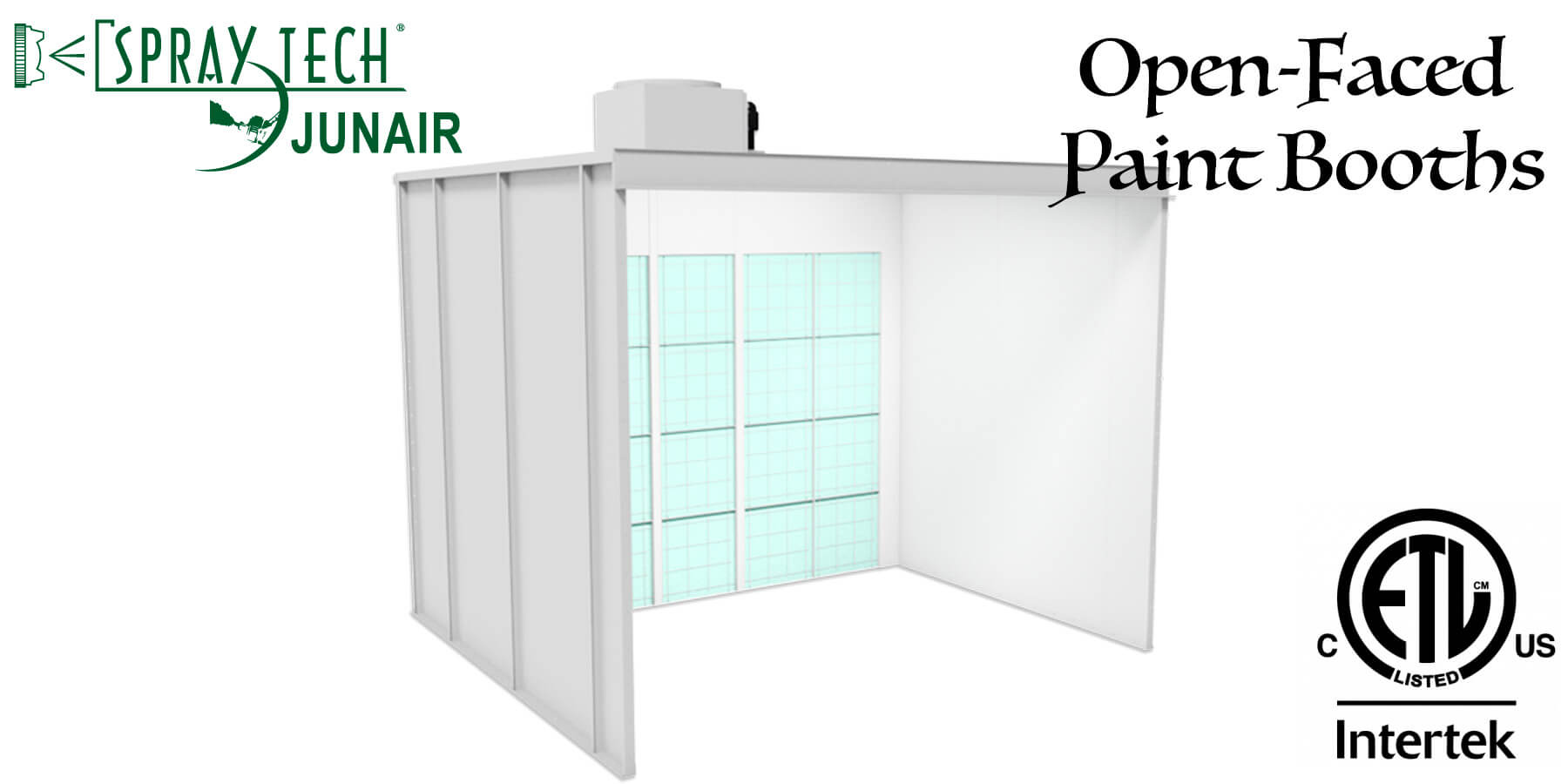

Spray Tech Open Faced Paint Spray BoothsSpray Tech Open Faced Paint Spray Booths

Choose Between Standard and Custom Sizes

No matter your process, we can design and build a cross-draft booth to meet your requirements. Pre-Engineered standard ETL Listed sizes available!

Primary Paint Booth Air Flow - Cross-Draft

Cross Draft Air Flow Example
Cross-Draft Paint Booths

The most cost-effective airflow style, crossdraft booths offer reliable performance at an affordable price point. Since there is no pit to dig, crossdraft booths are also easier to integrate into existing facilities. Air flows horizontally through a crossdraft booth, starting at the front of the booth and flowing over the product or part and into a filter bank at the back of the booth.

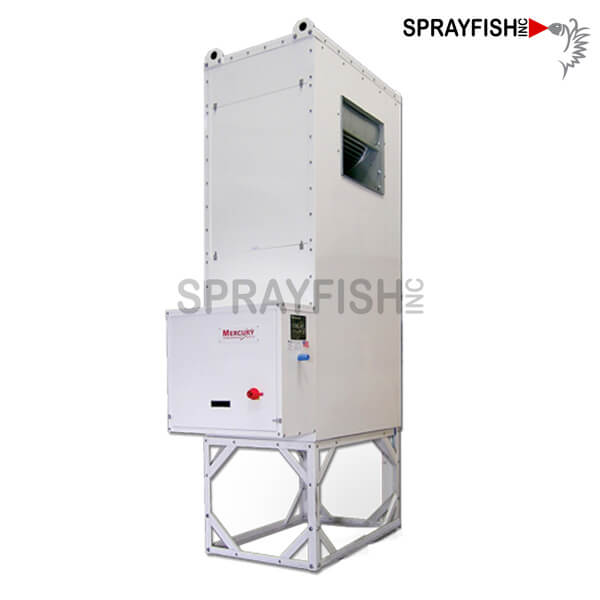

Spray Tech Air Make-Up System
Air Make-Up System

Whether you're heating the space or pressurizing the booth, we can size your new air make-up system to fit any size booth. Most Cross-Draft booths will have a stand-alone Air Make-Up system to supply your building with heated replacement air to offset the exhausted air from the paint spray booth.

Get A Quote - Contact Us

Each Spray Tech Open-Faced Spray Booth System is unique in design to fit your specific application requirements. We can help you design the proper system to meet your production needs. We offer installation to ensure success with your new system!
