Walcom TD1 & TD3 Thermodry SystemWalcom TD1 & TD3 Thermodry System
Walcom

Thermodry Technology

TD1 & TD3 Pro

Walcom Thermodry TD1 & TD3 Pro

AIR HEATING AND THERMOREGULATION

Compressed air used in paint booths is generally influenced by low temperatures in the winter and by high relative humidity in the summer.  Even with adequate booth heating or cooling in the summer, temperatures of the air entering the gun stock has a hard time reaching 75°F.  It should also be taken into account that air expansion causes temperature to drop an additional 50°F - 54°F, lowering paint atomization air to a temperature under 50°F.  With relative humidity under room temperature "dew point", a micro-mist that mixes with the paint may be generated.  Therefore, the ideal 75° conditions indicated by paint manufacturers for satisfactory results are not met with consequent loss of brilliancy, orange peel effects, and poor paint distribution.

The Walcom Thermodry Technology system heats and maintains the set air temperature regardless of climate/room conditions.  The operator can set temperature from 68°F - 122°F for the painting phase and up to 158°F for the drying phase.  The PID retroaction system (Proportional-Integrated-Derived) and instant regulation of the heating power at SCR (wave cut) keeps the temperature set by the operator constant.  The IPH heating system has the same heating element features as the equipment, thus providing both tube heating and internal temperature control, keeping it constant during the entire paint cycle.

AIR FILTRATION - TD3 ONLY

 This fully removes solid and gaseous impurities from the compressed air output in four phases:

  • Separation from water with automatic drain

  • Separation of any oil traces with manual drain

  • Elimination of residual humidity with silica gel and output dew point conditioning at values -30°F cup

  • Elimination of all impurity residue and the creation of breathable air with carbon active filter

AUTOMATIC DEHUMIDIFYING MASS REGENERATION

SRS regenerates silica gel in just 4 hours with the push of a button.  This is achieved by reverting flow of heated air to temperatures suited to regenerate the dehumidifying mass.  The equipment comes with a timer to automatically turn off the regenerative system after 4 hours and make it ready for operator’s use.

Walcom TD1 & TD3

Save On These Amazing Thermodry Systems - Shop Below!

WALCOM THERMODRY SYSTEM WITH 36' IPH HOSE

Walcom SKU: 60151
Walcom Thermodry Systems TD3 Heated Filtration System
Walcom Thermodry Systems TD1 Heated System
Walcom Thermodry Systems TD3 Heated Filtration System How It Works

WALCOM THERMODRY SYSTEM WITH 36' IPH HOSE

Walcom SKU: 60151
Regular price $9,795.00 Sale price $8,325.75 Save $1,469.25
/
Unit Model
Shipping calculated at checkout.

TD1 Pro

Thermocontrol Only

TD3 Pro

4-Stage Filtration, Thermocontrol, & Drying

TD1 & TD3 Filtration and Accessories

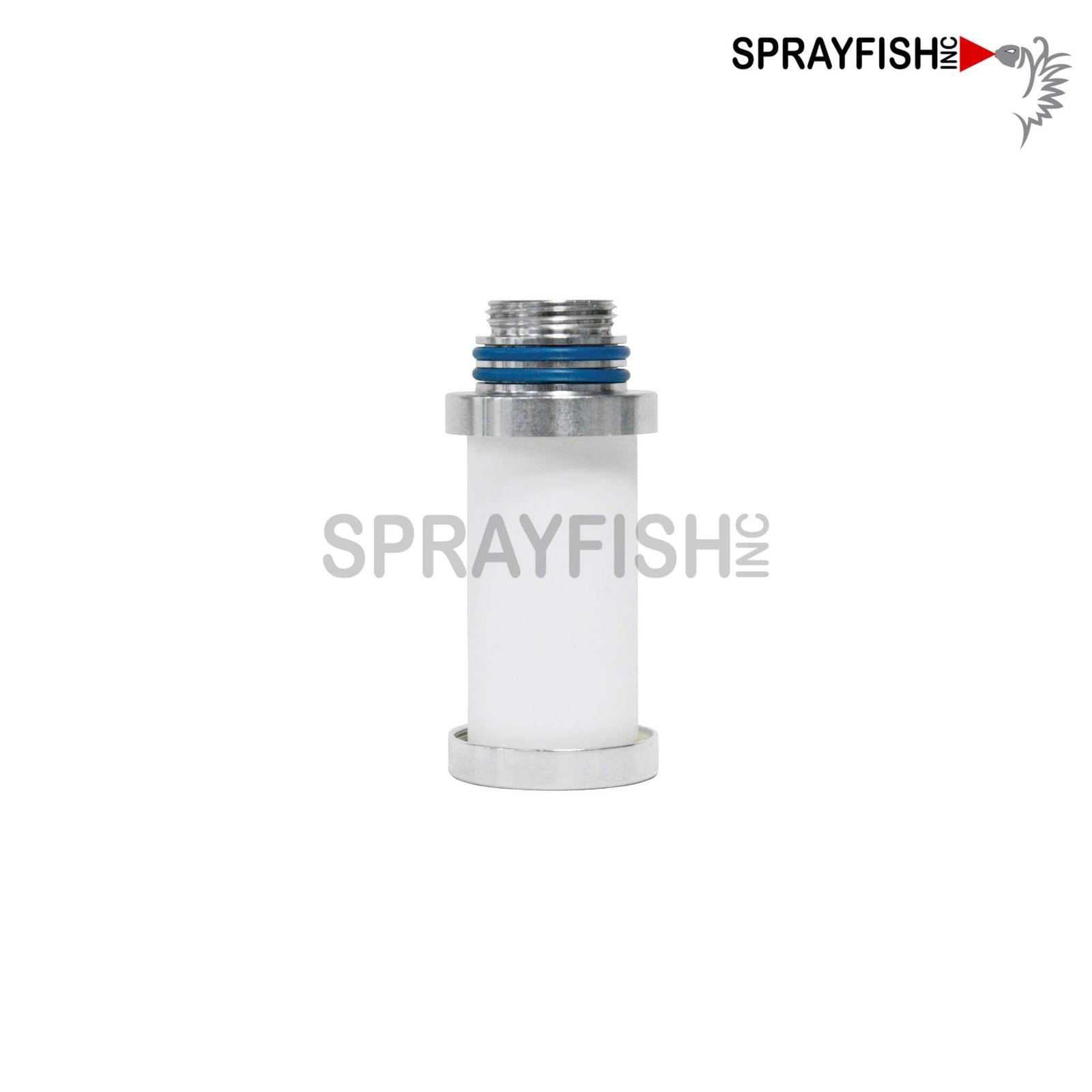

Walcom 1st Stage Water Filter For TD3 Pro
WALCOM 1st STAGE WATER FILTER for TD3 PRO
Walcom
$120.00

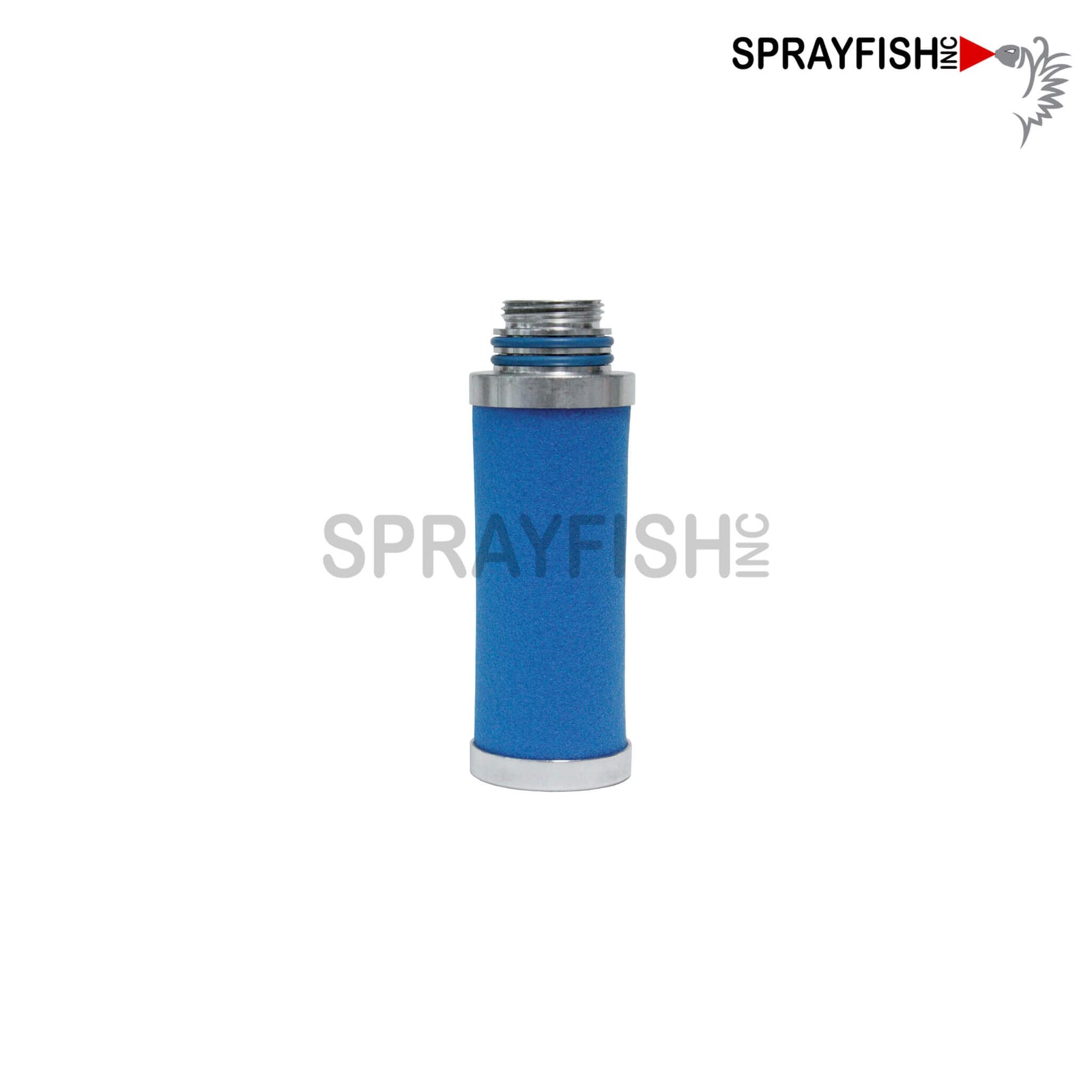

Walcom 2nd Stage Oil Filter For TD3 Pro
WALCOM 2nd STAGE OIL FILTER for TD3 PRO
Walcom
$85.00

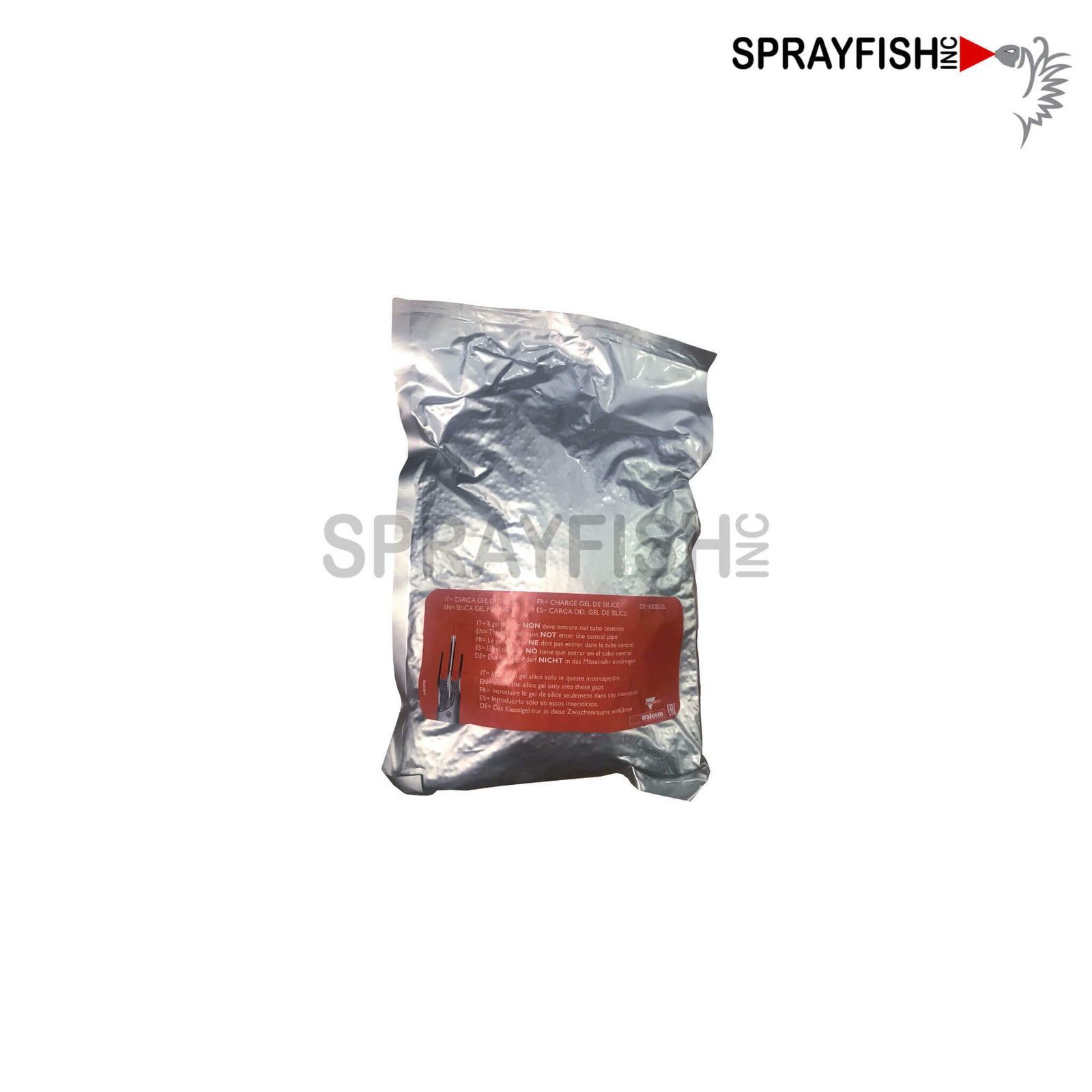

Walcom 3rd Stage Silica Gel For TD3 Pro
WALCOM 3rd STAGE SILICA GEL for TD3 PRO
Walcom
$120.00

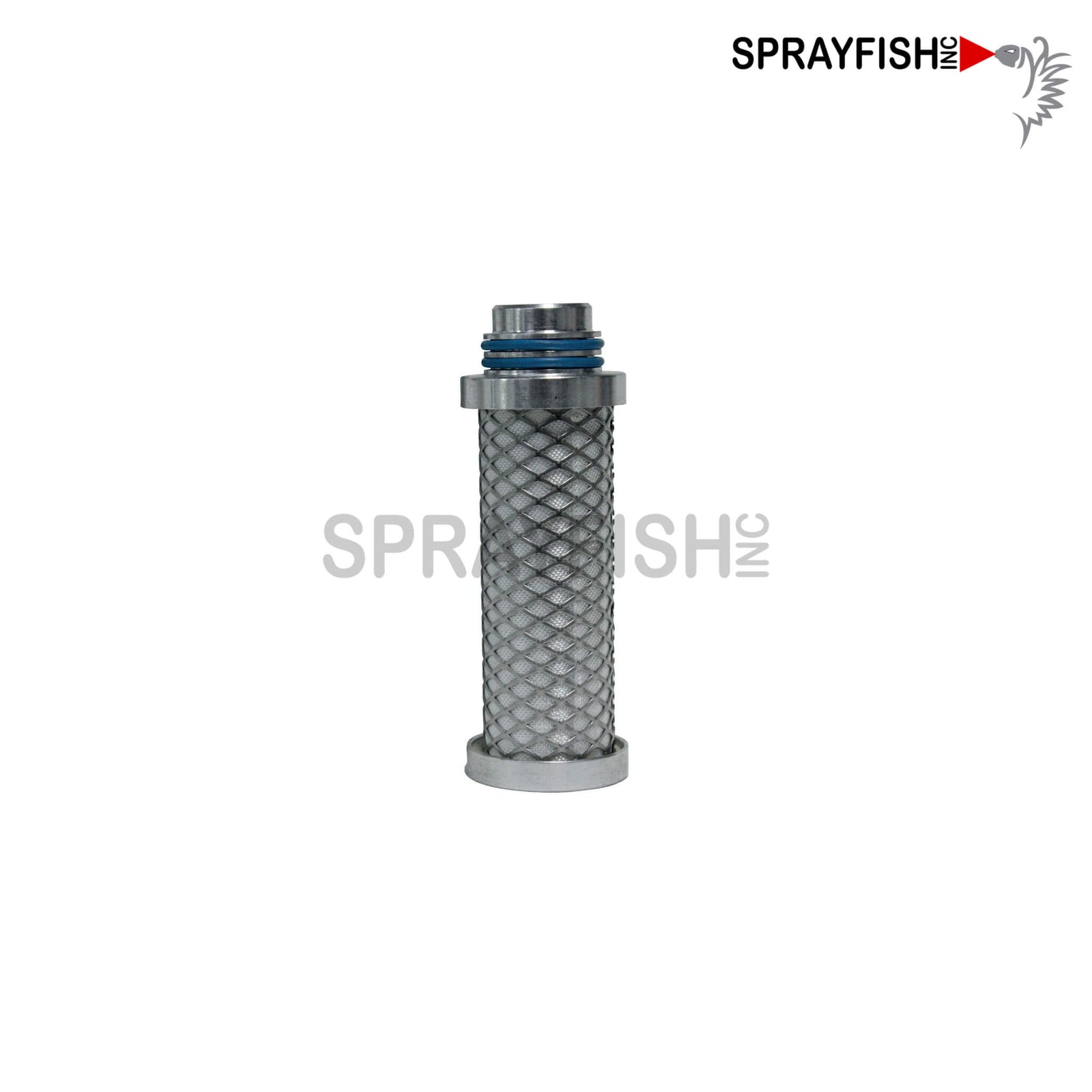

Walcom 4th Stage Active Carbon For TD3 Pro
WALCOM 4th STAGE ACTIVE CARBON for TD3 PRO
Walcom
$95.00
Walcom Water Filter Replacement
Walcom Oil Filter Replacement
WALCOM TD3 PRO FULL MAINTENANCE KIT
Walcom
$495.00
Walcom IPH Heated Air Hose For TD1 & TD3 Units
WALCOM IPH HEATED AIR HOSE FOR TD1 & TD3 UNITS
Walcom
from $649.00

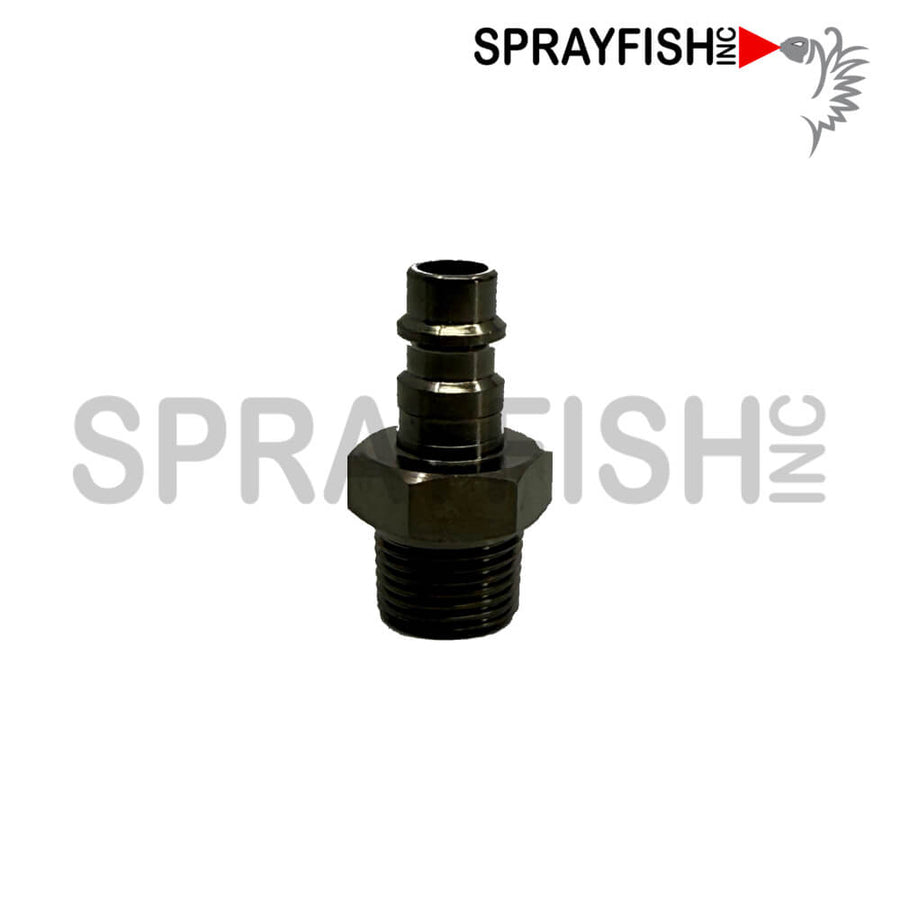

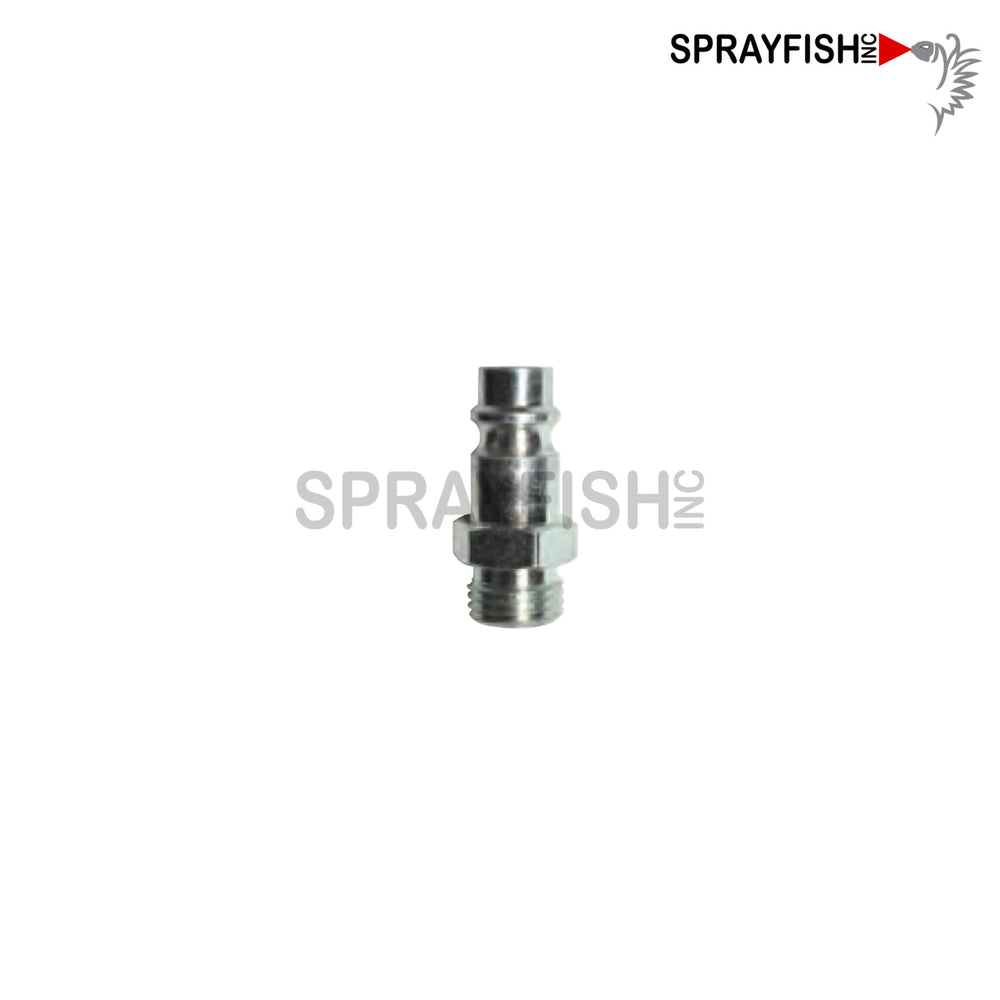

Walcom Male X300 Quick Disconnect Plug, Male Thread
Walcom Male X300 Quick Disconnect Plug, Female Thread
WALCOM MALE X300 QUICK DISCONNECT PLUG
Walcom
$3.50

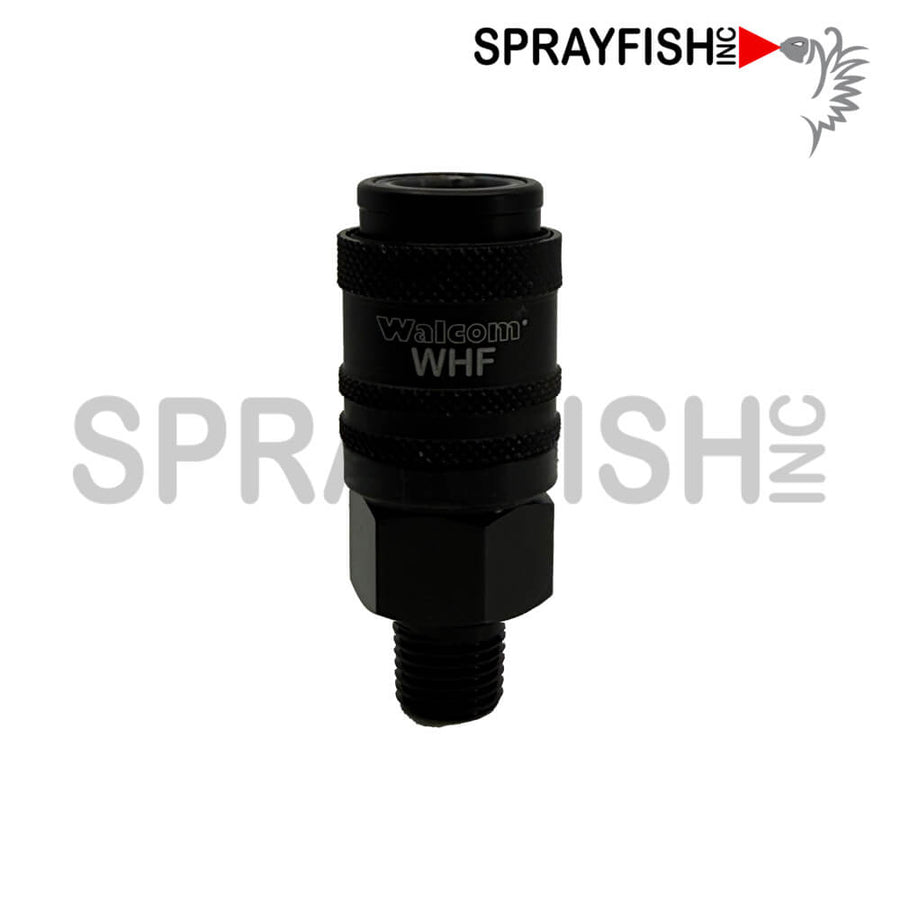

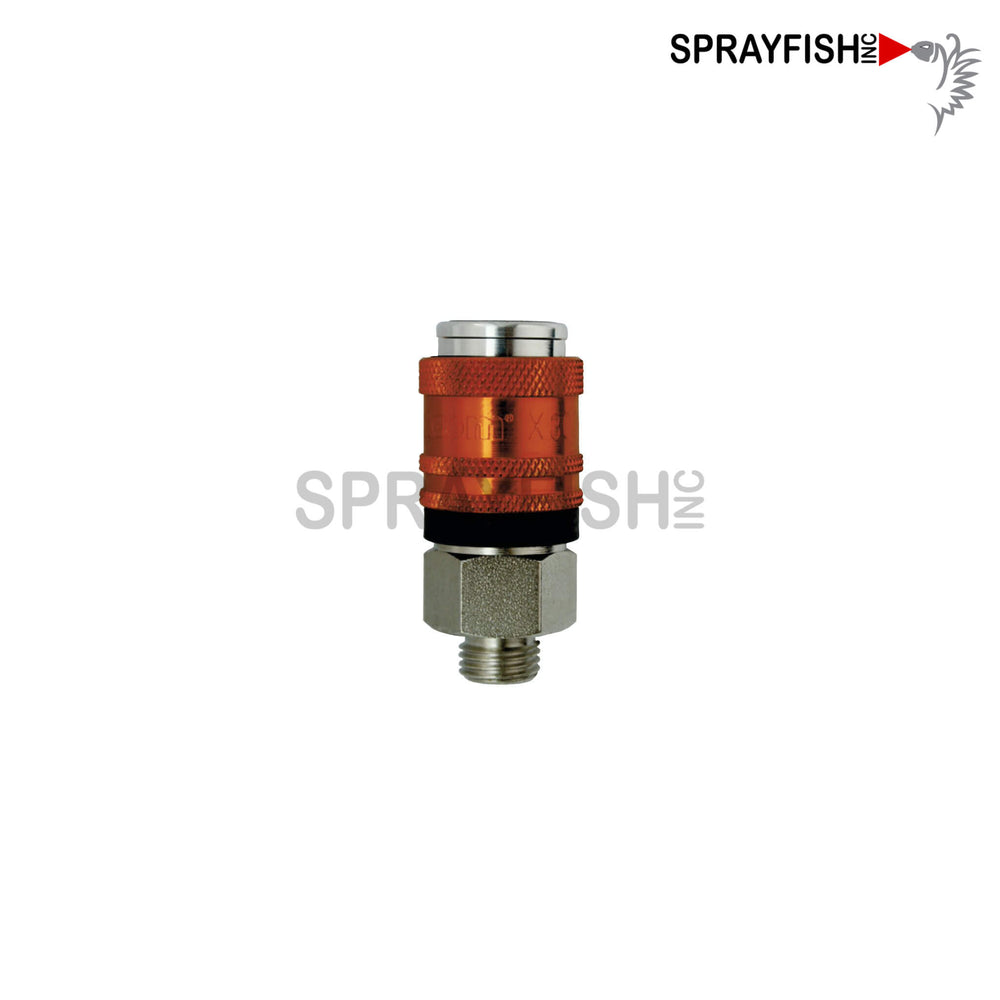

Walcom Female X300 Quick Disconnect Coupler, Male Thread
Walcom Female X300 Quick Disconnect Coupler, Female Thread
WALCOM FEMALE X300 QUICK DISCONNECT COUPLER
Walcom
$14.95
Walcom Fan Jet With Regulator
WALCOM FAN JET WITH REGULATOR
Walcom
$65.00
Walcom Eco Dry Light Paint Drying Ventury Gun
WALCOM ECO DRY LIGHT PAINT DRYING VENTURY GUN
Walcom
$78.00
Walcom Fan Jet Stand 2 Jets
WALCOM FAN JET STAND - 2 JETS
Walcom
$395.00
