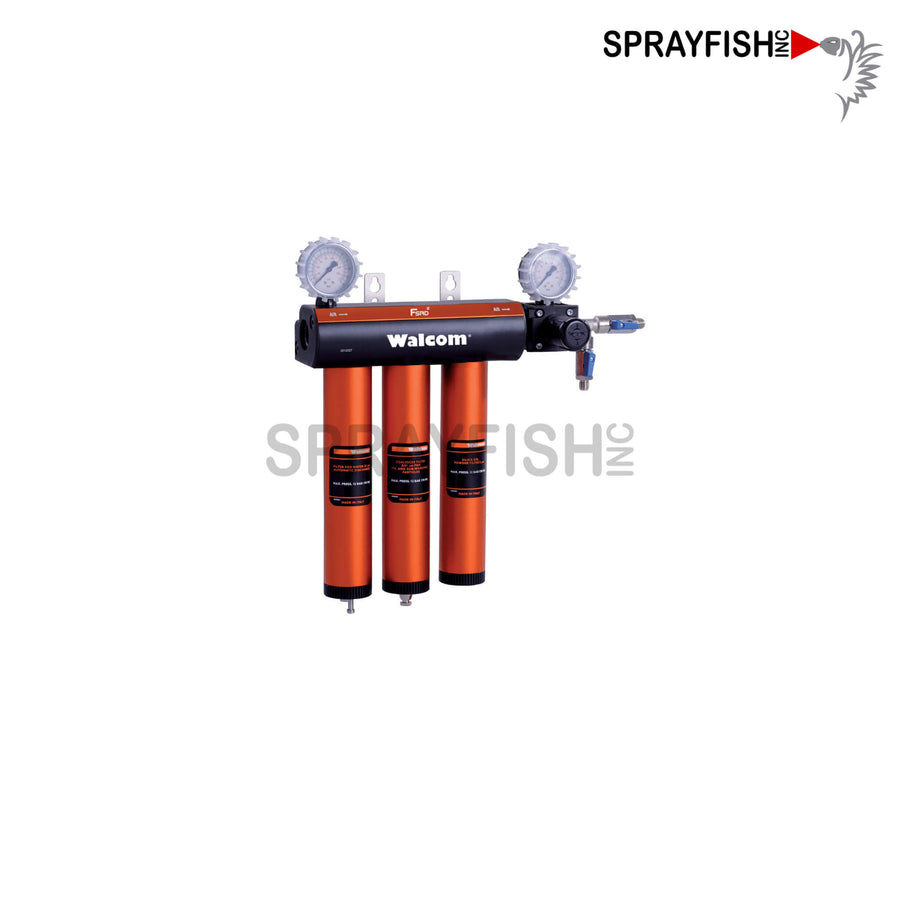

Walcom FSRD2 Water, Oil, Active Carbon Multi-Stage Filtration System. A modular filter system ideal for use in the painting booth.
FSRD2 System Configuration and Specifications:
Central body: Anodized aluminium
1) Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.
2) Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
3) Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m3
Pressure adjuster: Membrane system and automatic decompression
Air inlet: F 3/4"
Air outlet: Nr. 2 from M 1/4"
Filtering power: Air 5µ - oil 0.01µ
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 7 Kg
