Bürkle ROBUSeco Automatic Flatline Spray Machine

Ideal Starting Automatic Flatline Spray Coating Machine

The Bürkle ROBUSeco Automatic Flatinline Spray Coating Machine is the perfect solution for small to medium sized production shops. Thanks to its compact design and easy operation, it enables precise coating application with minimal overspray. The system works with high-quality spray guns, offers three dedicated color circuits, and impresses with its energy-efficient air flow. Find inspiration with our C-Series and SOLO system layouts or customize the right system for your production needs!

Why the Bürkle ROBUSeco Flatline Spray Coating Machine?

  • Innovative machine details for easy set-up and maintenance
  • Intuitive and modern control technology
  • Surface results from dull matte to high-gloss, with transparent or colored lacquers
  • Optimum coating of 3D workpieces
  • Turn-key solutions with different drying processes and handling systems
  • Solid machine frame with large safety glass openings for inside access
Burkle ROBUSeco Flatline Spray Machine Burkle ROBUSeco Flatline Spray Machine

ROBUSeco

ROBUSeco Flatline Machine System Information

Key Features
  • Spray booth with solid machine frame, large-sized opening with safety glass elements and access to all high-maintenance areas
  • Ergonomic operation on the operating panel and on the operator-friendly arranged controllers
  • Cabin is easy to clean with quick-change system for all fresh air and exhaust air filter units
  • Application unit with two opposing support arms for the spray guns, driven by two toothed belts
  • Fresh air filter cover equipped with 4 adjustable fresh air fans and precedent coarse dust filter
  • Double-layer dry filter unit in corrosion-protected suction shafts arranged next to the transport belt, can be easily removed
  • Liquid paint supply unit with up to 3 independent color circuits, equipped with paint supply lines. Central connecting point for paint supply arranged on the operating side
  • Support of spray gun head which can be adjusted in height. Prepared to take up max. 6 spray guns on each side. Each gun is separately adjustable in height.
  • Machine control with user-friendly Bürkle user interface
  • Electric control of the machine with Profinet, for operating centrally controlled Bürkle finishing lines
System Specifications

Working Width - 1300 mm

Width of Conveyor Belt - 1700 mm

Number of Guns - Max. 12 (6+6)

Spray Guns Simultaneously in Operation Max - Max 4 (2+2)

Weight Per Arm - Max 6 kg

Fresh Air Volume - Approx. 8000 m³/h

Exhaust Air Volume - Approx. 8000 m³/h

Maximum Length of Exhaust Ductwork - 10 m

Solvent Quantity Max. Allowed - 39 kg/h

Length of Machine - Approx. 3800 mm

Weight - Approx. 4000 kg

Connected Load with 50 Cycles - Approx. 9 kW

Speed of Gun Unit - Max. 100 m/min.

No. of Double Strokes of Gun Unit - Max. 20

We can help customize your system with the right pumps and guns to meet your production challenges!

Contact Us Today With Questions!

Bürkle ROBUSeco System

Burkle ROBUSeco Flatline Spray Machine Hotspot

#1 - Laser Sensor

Part Reader Bar

The ROBUSeco uses a Laser Sensor Part Reader Bar so the machine knows the size of the part and where it is located on the conveyor.

#2 - Exterior Access

Filter Rack

The ROBUSeco allows you to access your Intake Filters from the exterior of the machine to allow for safer filter changes.

#3 - Electric & Air

Control Panel

The ROBUSeco is unique by having the Electrical and Pneumatic Air Controls built into the machine to save floor space.

#4 - Kraft Roll

Paper System

The ROBUSeco has the optional Kraft Paper Roll System if your production doesn't require our paint recovery system.

#5 - Air Exhaust

Fan & Ductwork

The ROBUSeco has the Air Exhaust Fan & Ductwork that can be positioned in different locations.

#6 - Fluid Hose

Access Panel

The ROBUSeco has Easy Access Panels which allow you to access your Fluid Hoses from the exterior of the machine.

#7 - Suction Belt

Conveyor System

The ROBUSeco uses a Suction Conveyor Belt System to keep the paper tight but also to reduce tearing.

ROBUSeco Features

Our modular design allows you to start with the ROBUSeco system and customize it over time as your business grows or during your initial investment.

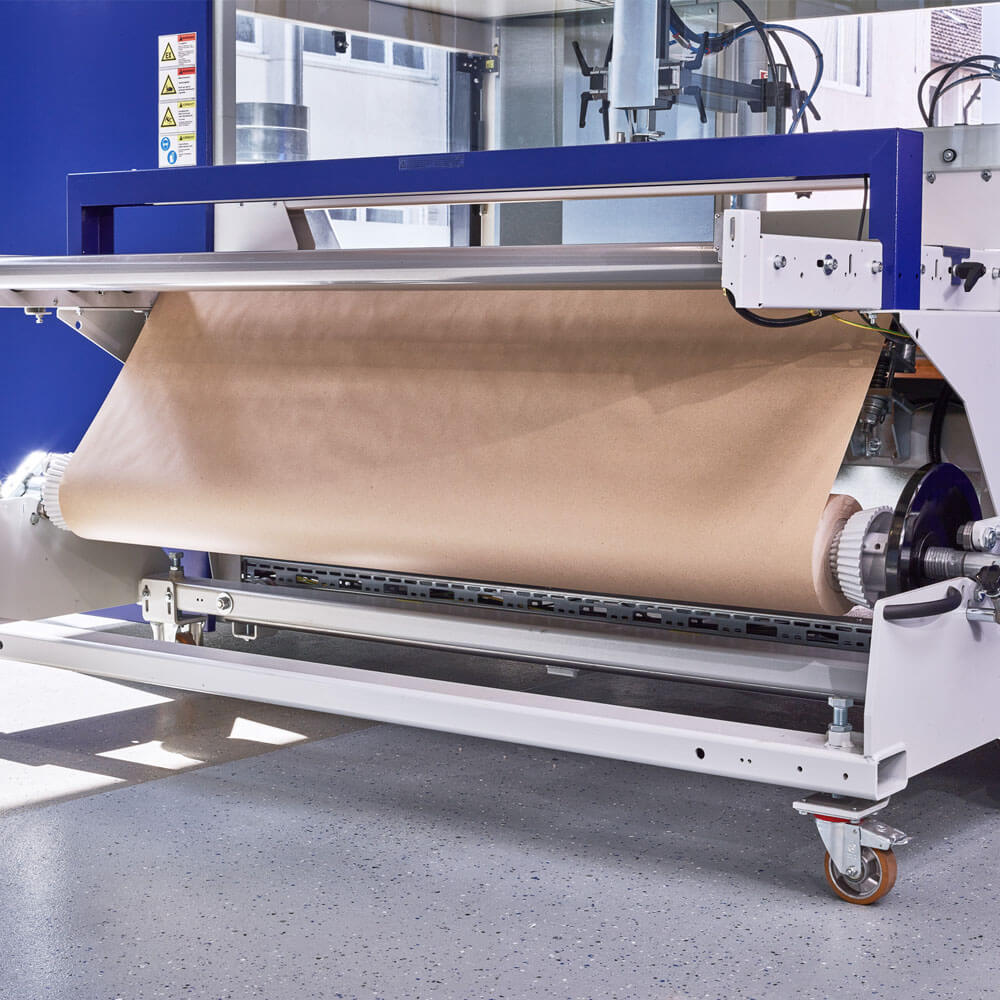

Burkle ROBUSeco Flatline Spray Machine Laser Reader Sensor Bar

#1 - Laser Sensor

Part Reader Bar

The ROBUSeco uses a Laser Sensor Part Reader Bar so the machine knows the size of the part and where it is located on the conveyor. We recommend a manual or powered infeed conveyor to ensure the positioning of your parts stays consistent and allows for proper readings through reader bar.

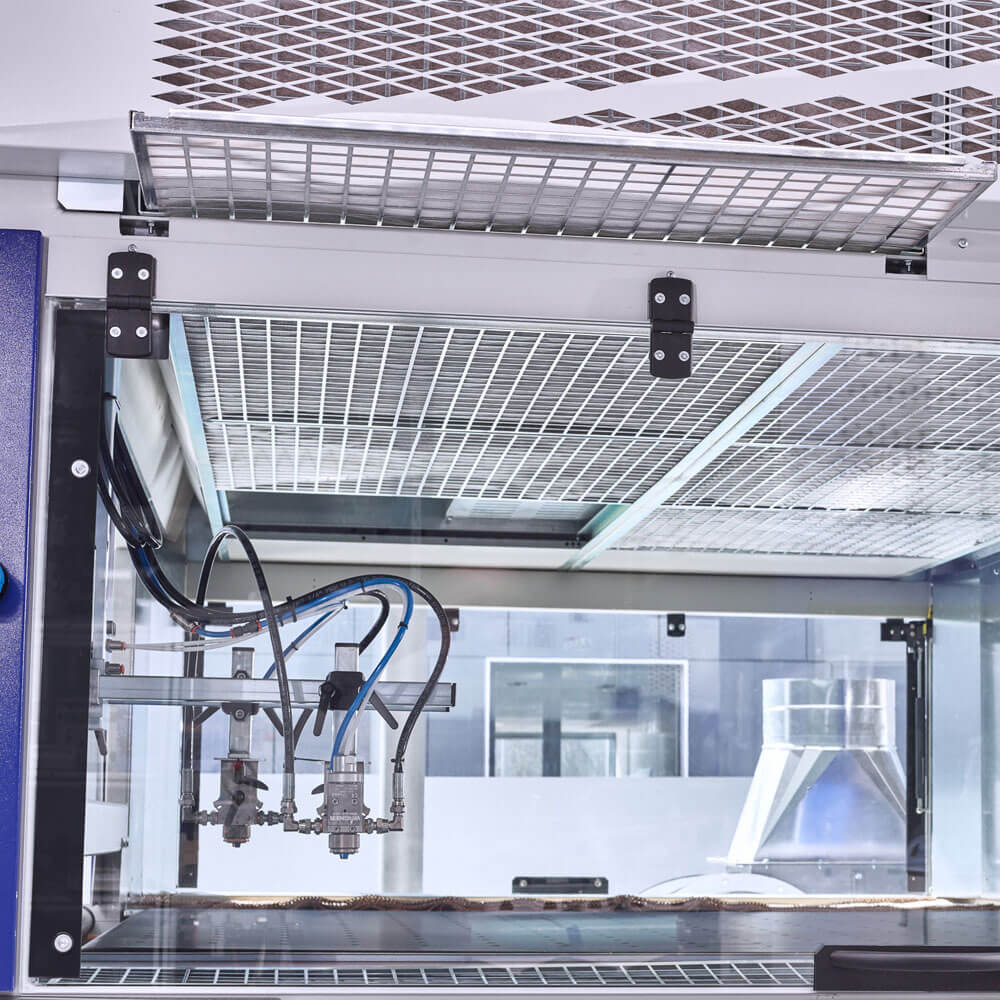

Burkle ROBUSeco Flatline Spray Machine Exterior Filter Rack

#2 - Exterior Access

Filter Rack

The ROBUSeco allows you to access your Intake Filters from the exterior of the machine to allow for safer filter changes. Competitive machines have inside access, which can create overhead dangers due to grate weight & knobs that hold them in place and in many cases, forces your team to climb onto the conveyor to pull the grates down, causing liability issues.

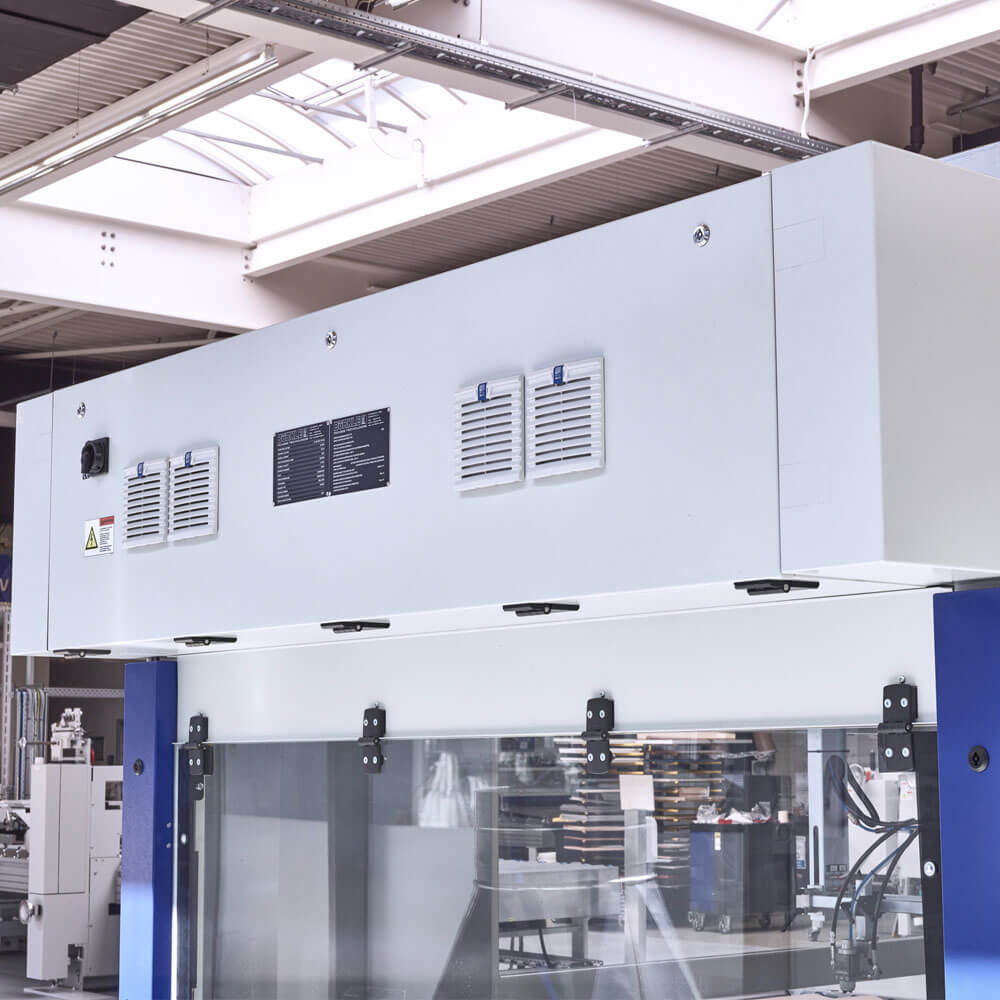

Burkle ROBUSeco Flatline Spray Machine Electrical and Pneumatic Air Control Panel

#3 - Electric & Air

Control Panel

The ROBUSeco is unique by having the Electrical and Pneumatic Air Controls built into the machine to save floor space. This saves space versus our competitors who have a separate controls unit that needs to be mounted near the machine. All C-series pre-designed systems include this setup. Larger systems may require a larger floor-mounted control station.

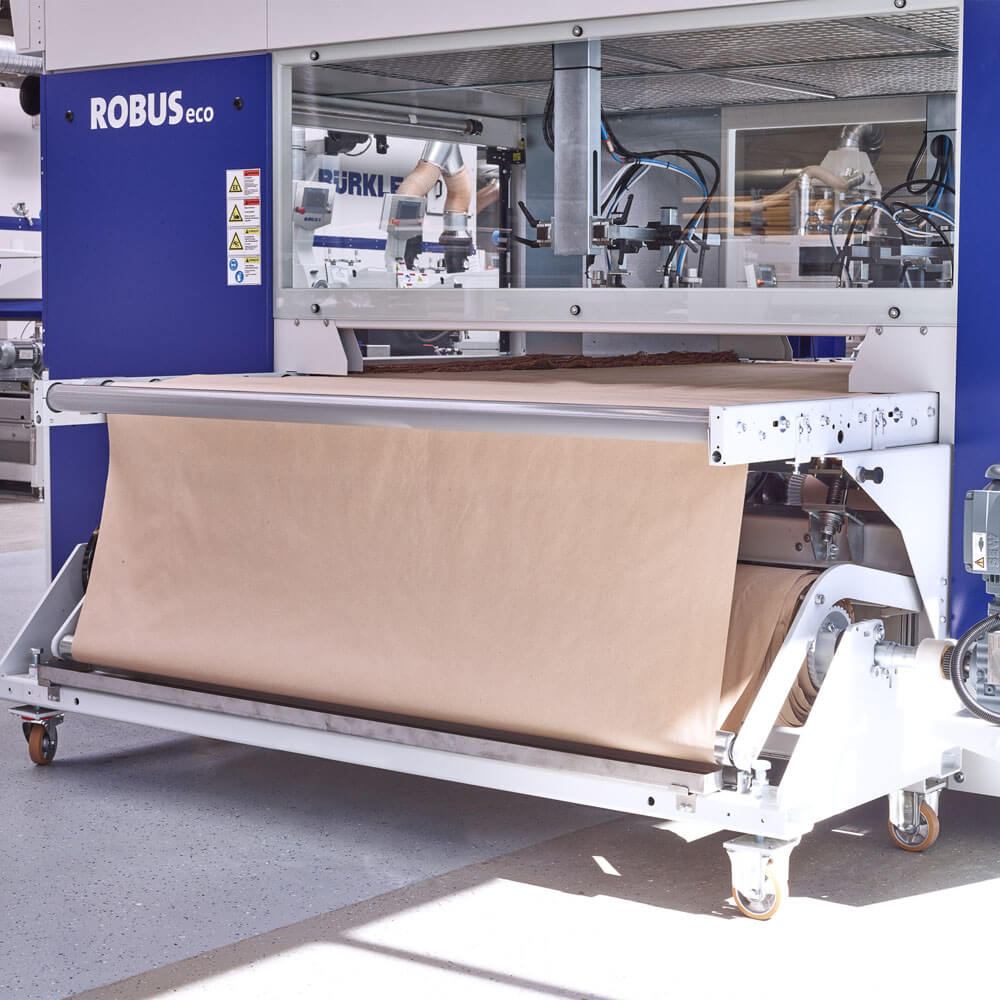

Burkle ROBUSeco Flatline Spray Machine Paper Roll

#4 - Kraft Roll

Paper System

The ROBUSeco has the optional Kraft Paper Roll System if your production doesn't require our paint recovery system. We recommend this setup for catalyzed paint applications or applications where you have many color changes. With the purchase of your paper, please make sure to purchase extra cores depending on the length of rolls you use.

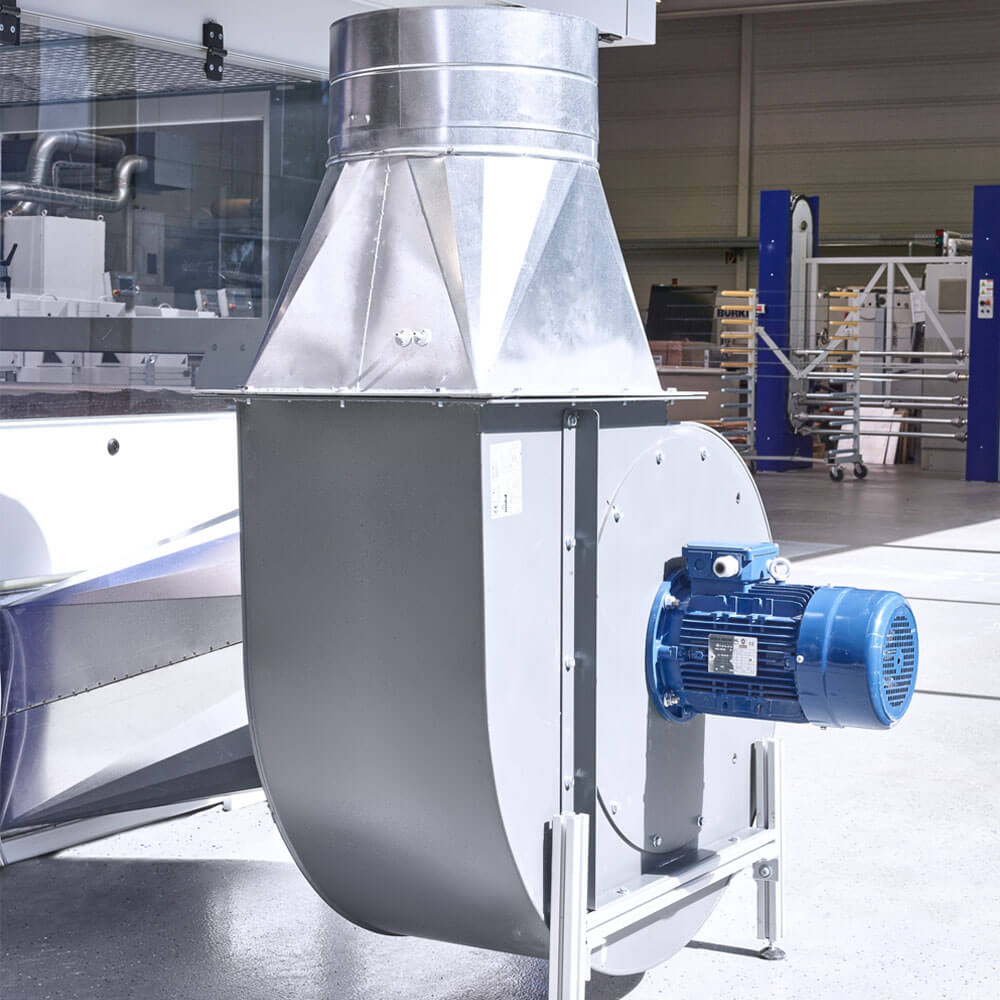

Burkle ROBUSeco Flatline Spray Machine Exhaust Fan and Ductwork

#5 - Air Exhaust

Fan & Ductwork

The ROBUSeco has the Air Exhaust Fan & Ductwork that can be positioned in different locations near the machine. Sprayfish can help design the layout of the machine as well as the exhaust ducting run to go out of the building. Every state may have different codes on how this ductwork is required to be run and you may have a local company install this ductwork, roof/wall penetration, and sealing of the penetration. Ductwork is not included in our packages as every job will be custom to your facility layout and requirements.

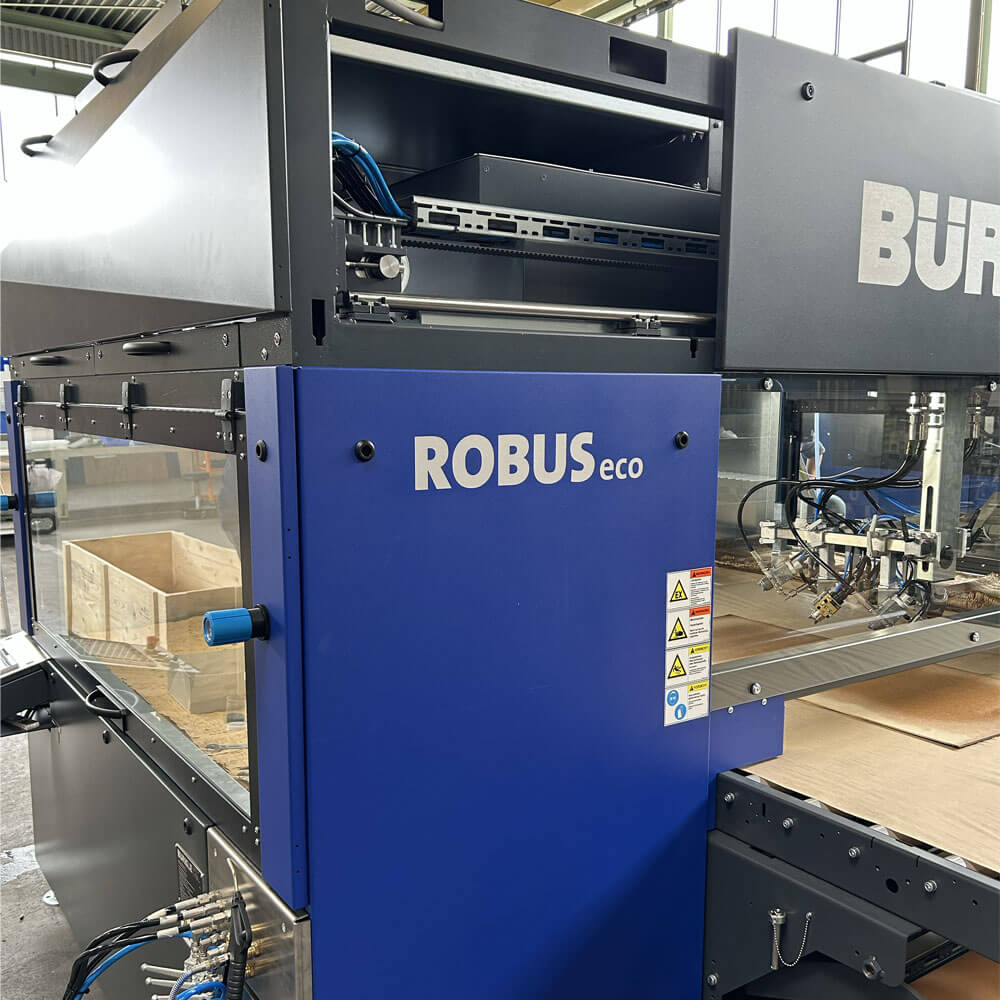

Burkle ROBUSeco Flatline Spray Machine Fluid Hose Access Panels

#6 - Fluid Hose

Access Panel

The ROBUSeco has Easy Access Panels which allow you to access your Fluid Hoses from the exterior of the machine. Other machines in the industry either require you to work on them on the inside of the machine (standing/kneeling on the conveyor) or on top of the unit (bending over for long periods). Both can be very hard on your body and increase L&I liability for your maintenance team. On the ROBUSeco, all hoses can be comfortably reached from the outside of the machine after removing our easy to access panels.

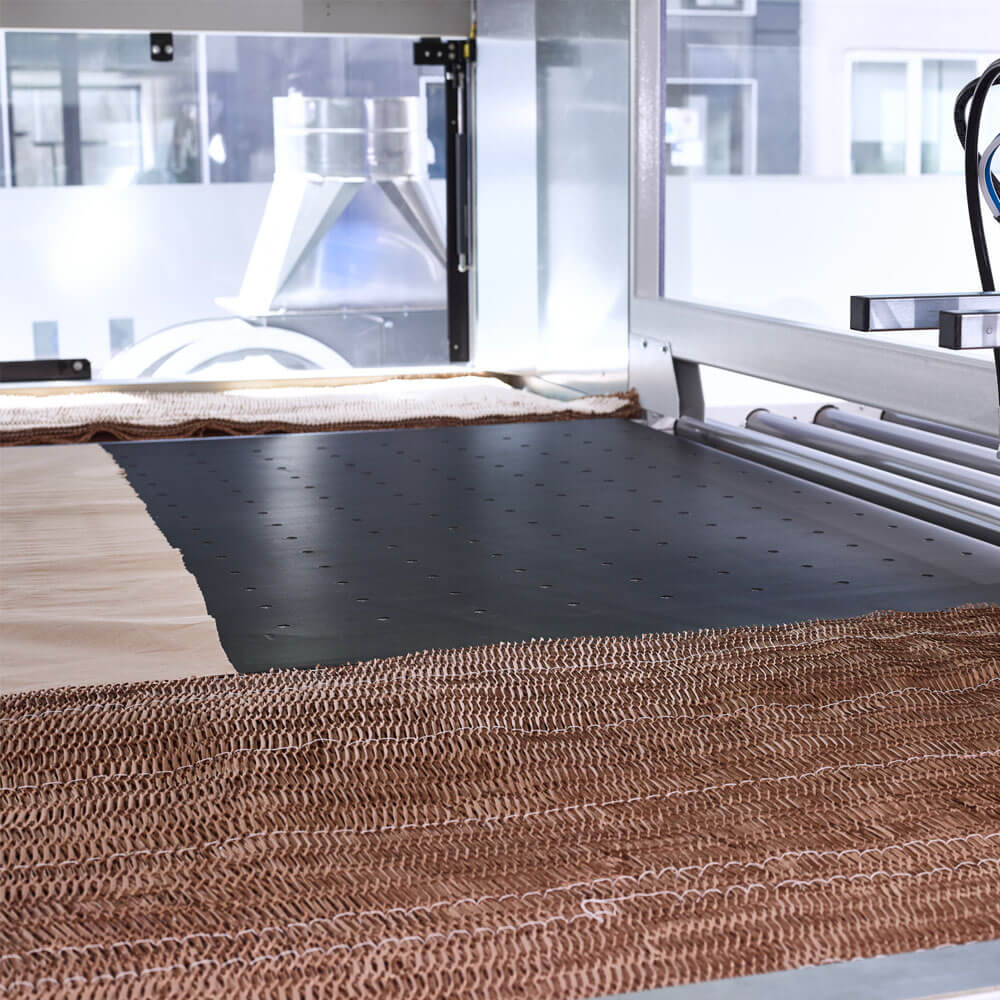

Burkle ROBUSeco Flatline Spray Machine Suction Conveyor for Paper Machines

#7 - Suction Belt

Conveyor System

The ROBUSeco uses a Suction Conveyor Belt System to keep the paper tight but also to reduce tearing. The conveyor helps to move the paper through the system to reduce the chances of paper tear due to the support underneath. The light suction allows the paper the stay tight and significantly reduces wrinkles in the paper during production.
