6-Gun Linear Spray Machine

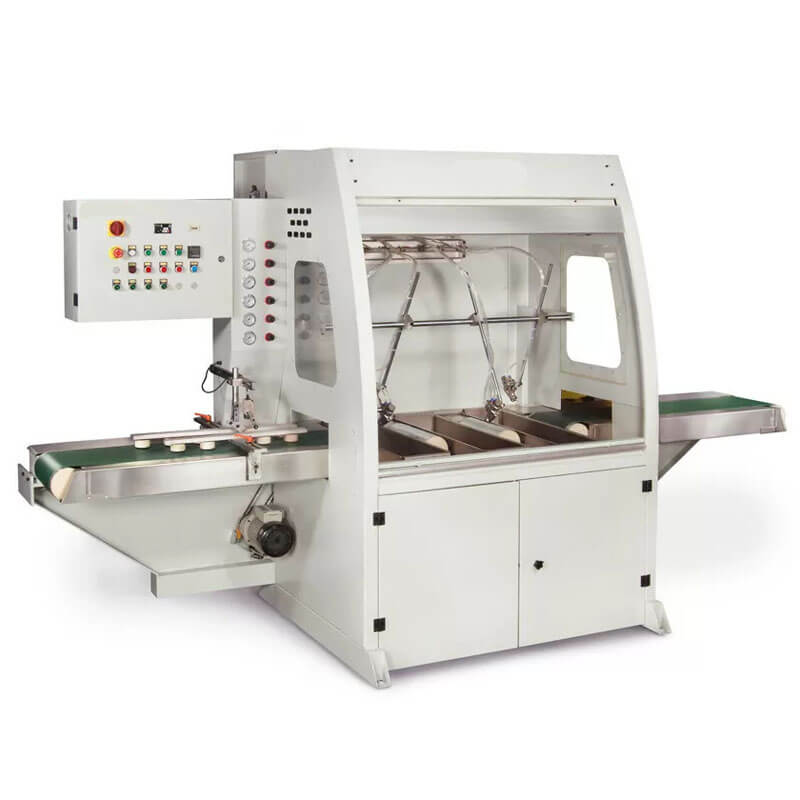

The 6-Gun Linear Moulding sprayers are capable of utilizing both water and solvent based coatings including stains, paints, reactives, and lacquers. Our sprayers come equipped with spray guns that are automatically timed for the start and stop of the spray cycle to ensure best spray efficiency. The overspray is captured by 3 spray troughs and can be recovered, while atomized spray is captured by polyester media and clean air is exhausted out of the spray cabin.

The system has two circuits which you may customize. You can have one air-assisted airless and one low-pressure airspray circuit or both as air-assist or airspray. We can help you to customize the system to meet your production needs.

Lineal Spray Machine System Information

Workpiece Size

Work Piece Max Width: 12"

Work Piece Min Length: 36"

System Specifications

Feed Speeds: 30-150 Feet Per Minute

Feed Motor: 1 HP

Exhaust Fan: 3 HP

Number of Guns: 6 Air-Assisted Airless or Airspray

Number of Circuits: 2 Dedicated

Recovery Troughs: 3 with 2-Guns Each

Spray Gun Trigger: Electronic Switch

Power Requirements

Volage: 480v 3-Phase - 60Hz

Total Amps: 10-20 amps

We can help customize your system with the right pumps and guns to meet your production challenges!

Lineal Spray Package Includes

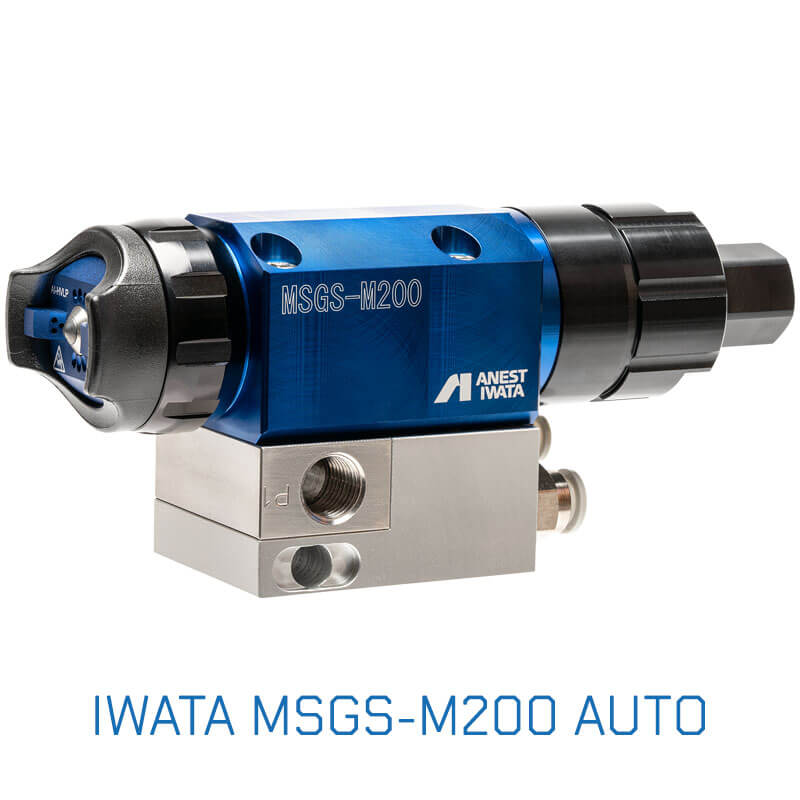

Anest Iwata MSGS-M200 Air-Assisted Airless Spray Gun

6 - Spray Guns

Lineal Machine includes 6-Spray Guns to feed your system. Choose between Air-Assisted Airless or Airspray to achieve your desired Class-A finish.

2 - Feed Pump

Lineal System includes 2-Feed Pumps to feed the 2-Dedicated Circuits. Choose between the iCon 36:1 AAA or Diaphragm Low-Pressure systems.

Spray and Recovery Troughs for 6-Gun Lineal Spray Machine

3 - Spray Troughs

Captures the overspray from the automatic spray guns. You can reclaim this material or dispose of it if it is a catalyzed product.

Find Inspiration with this Sample Layout Design

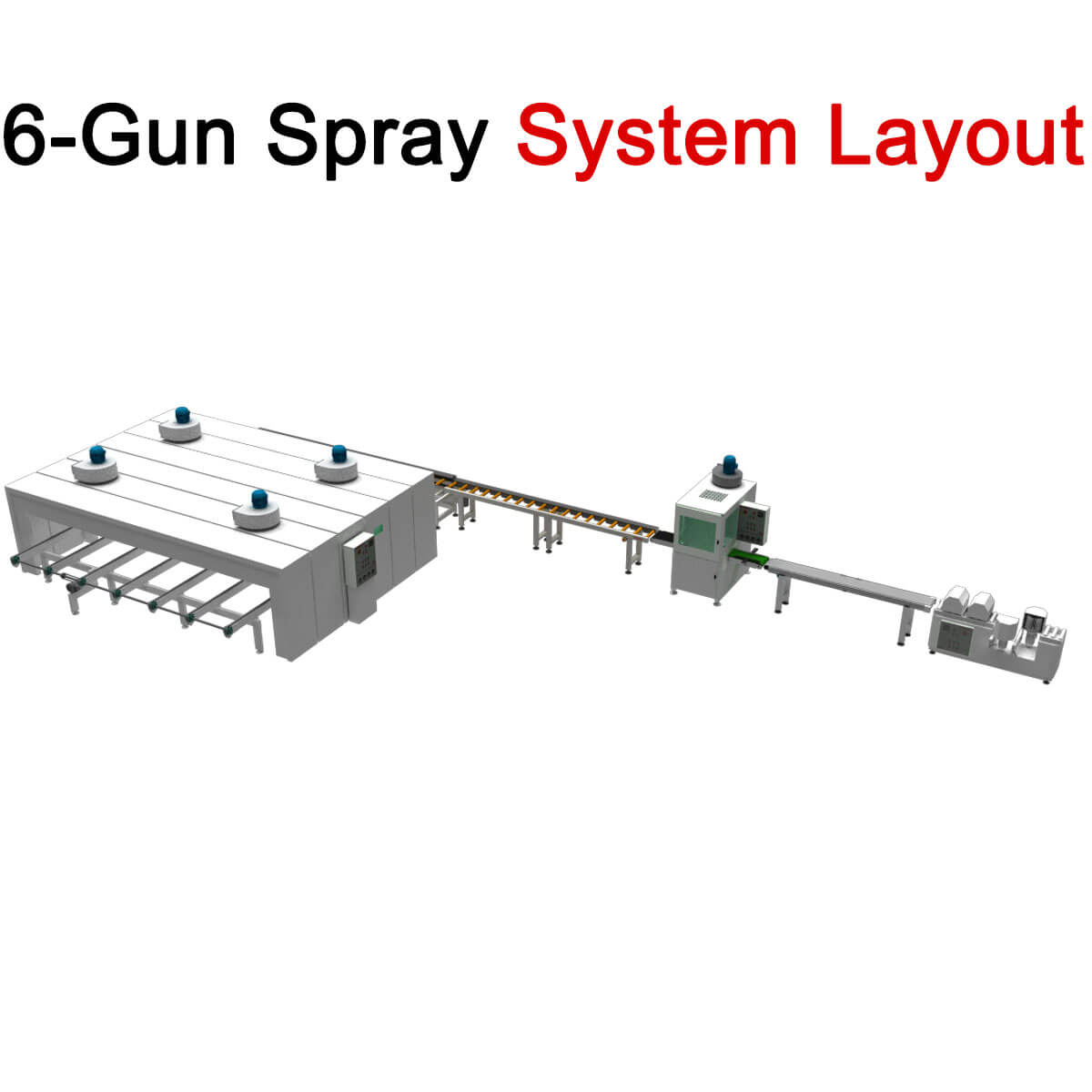

Sprayfish 6-Gun Spray Coating System Design Layout Example

#1 - Option

Linear Sander

Nearly unlimited configurations of belt, wheel, and flap stations to suit every profile.

#2 - Option

Infeed Conveyor

Super duty conveyor with rough top belt.

#3 - Option

3-Gun Spray Machine

The 6-Gun Linear Moulding sprayers are capable of utilizing both water and solvent based coatings including stains, paints, reactives, and lacquers.

#4 - Option

Acceleration Conveyor

High-speed, heavy duty, ideal for lumber and timber.

#5 - Option

Lateral Transfer

High-speed, heavy duty chain offload transfer. Ideal for lumber and timber.

#6 - Option

Chain Deck Conveyor

Custom configured for offloading and oven conveyance.

#7 - Option

Convection Oven

Designed to dry an extensive range and diversity of coatings.

Custom Configuration Options

Our modular design allows you to build your desired system up-front or add components over time as you grow and your production needs increase!

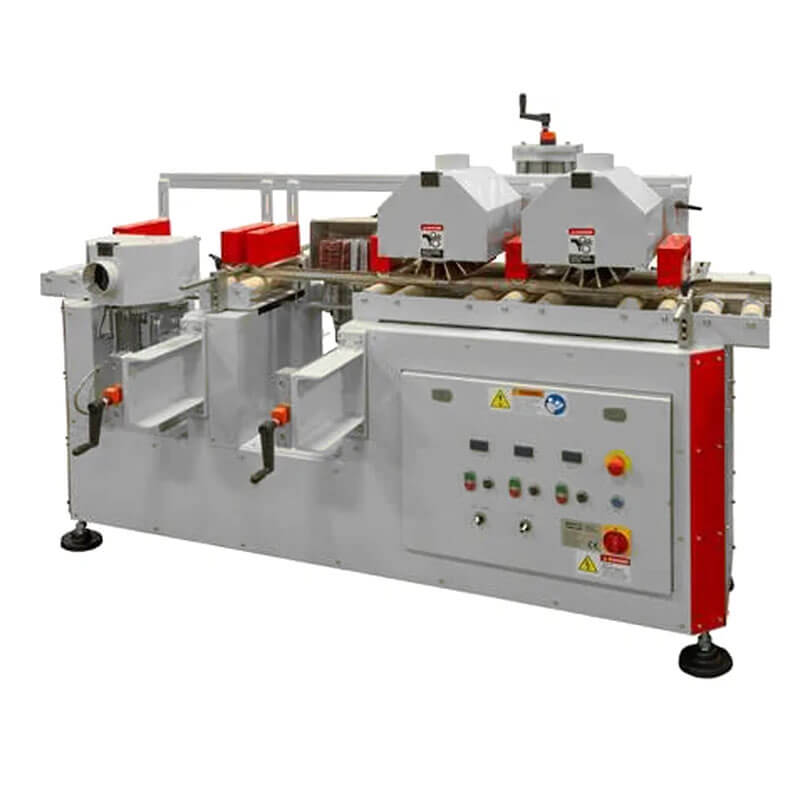

Sprayfish Lineal Finishing Series - Sanding and Deburring Systems

Sanding & Deburring

Multiple sanding, denibbing and wire brush configurations allow your production line to reach maximum efficiency. Our sanders are designed and built for a wide variety of applications; from small runs, to high volume production and everything in between.

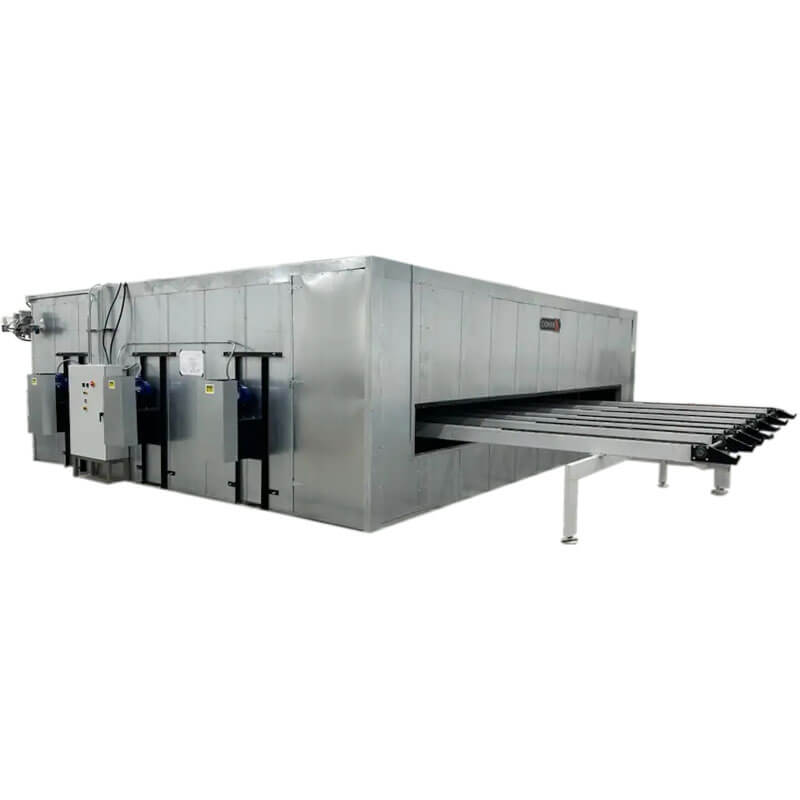

Sprayfish Lineal Finishing Series - Ovens, IR, UV, Convection

Curing Ovens

We offer many curing options for your lineal coating machines that are designed to meet your coating and production needs. Choose between Convection Dry, UV, or IR options.

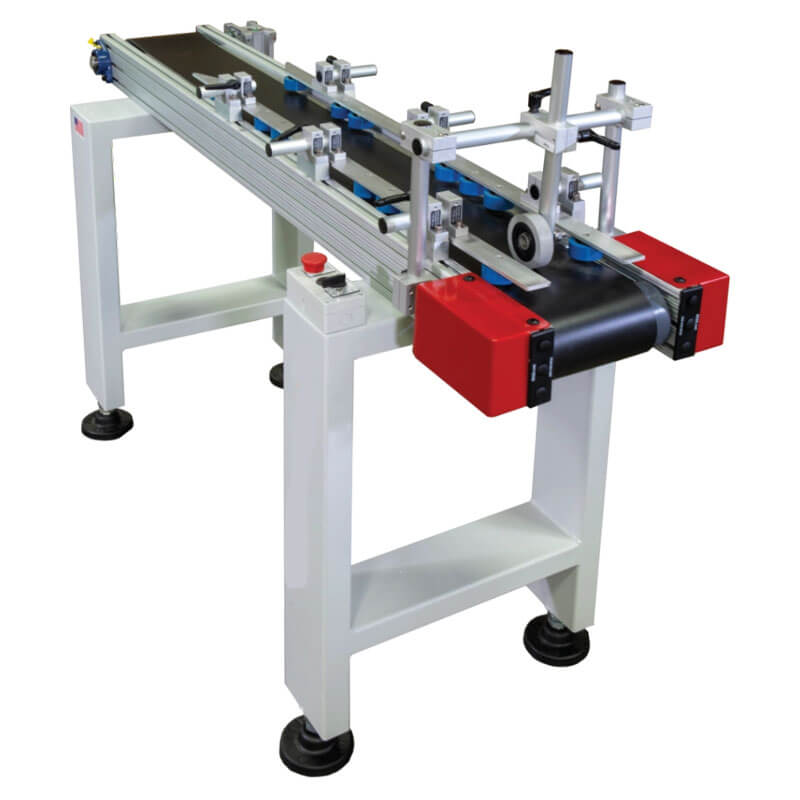

Sprayfish Lineal Finishing Series - Infeed Conveyor with Wheel and Walls

Hold Down Conveyor

The Hold Down Infeed Conveyor helps to set your lineal components to ensure they move through the system properly with bumpers, conveyor belt, and a hold down wheel.

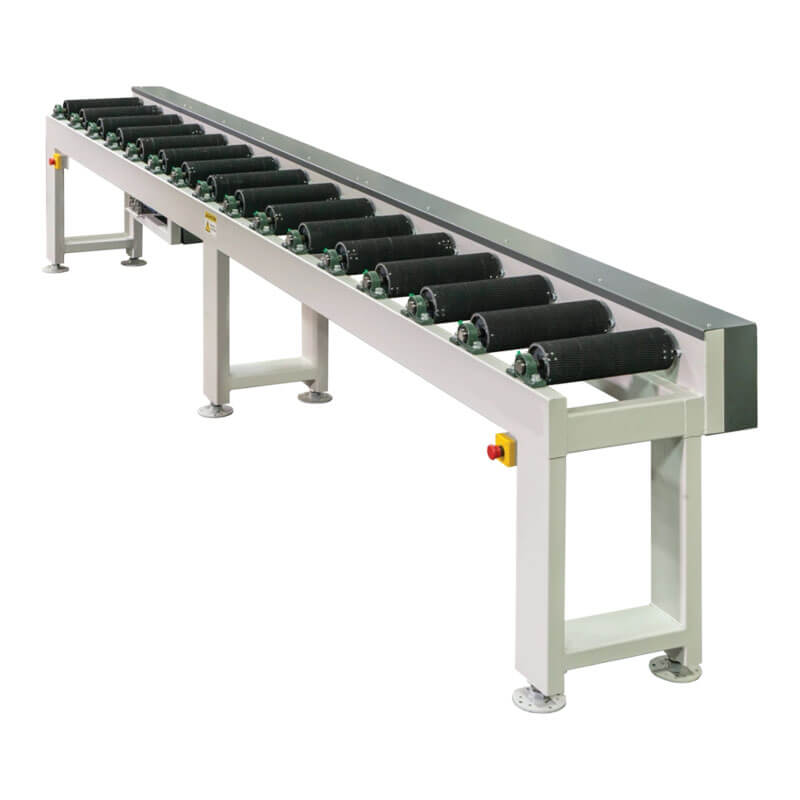

Sprayfish Lineal Finishing Series - Outfeed Roller Conveyor, Infeed Conveyor for Automated Systems

Feed Conveyors

Roller and Belt Conveyors can be used for the infeed, outfeed, or transfer of your lineal products.

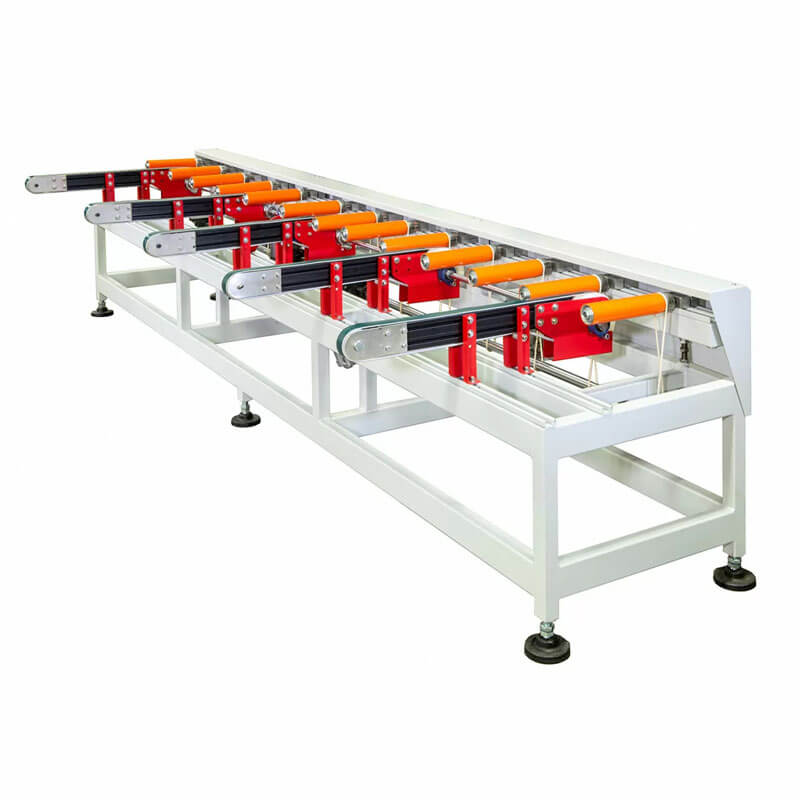

Sprayfish Lineal Finishing Series - Transfer Conveyor

Transfer Conveyors

Transfer Conveyors are used to slow down your high-speed product and then transfer them in a different direction onto a slower conveyor system. This reduces the oven size or allows for an easier offload/transfer of your products.
