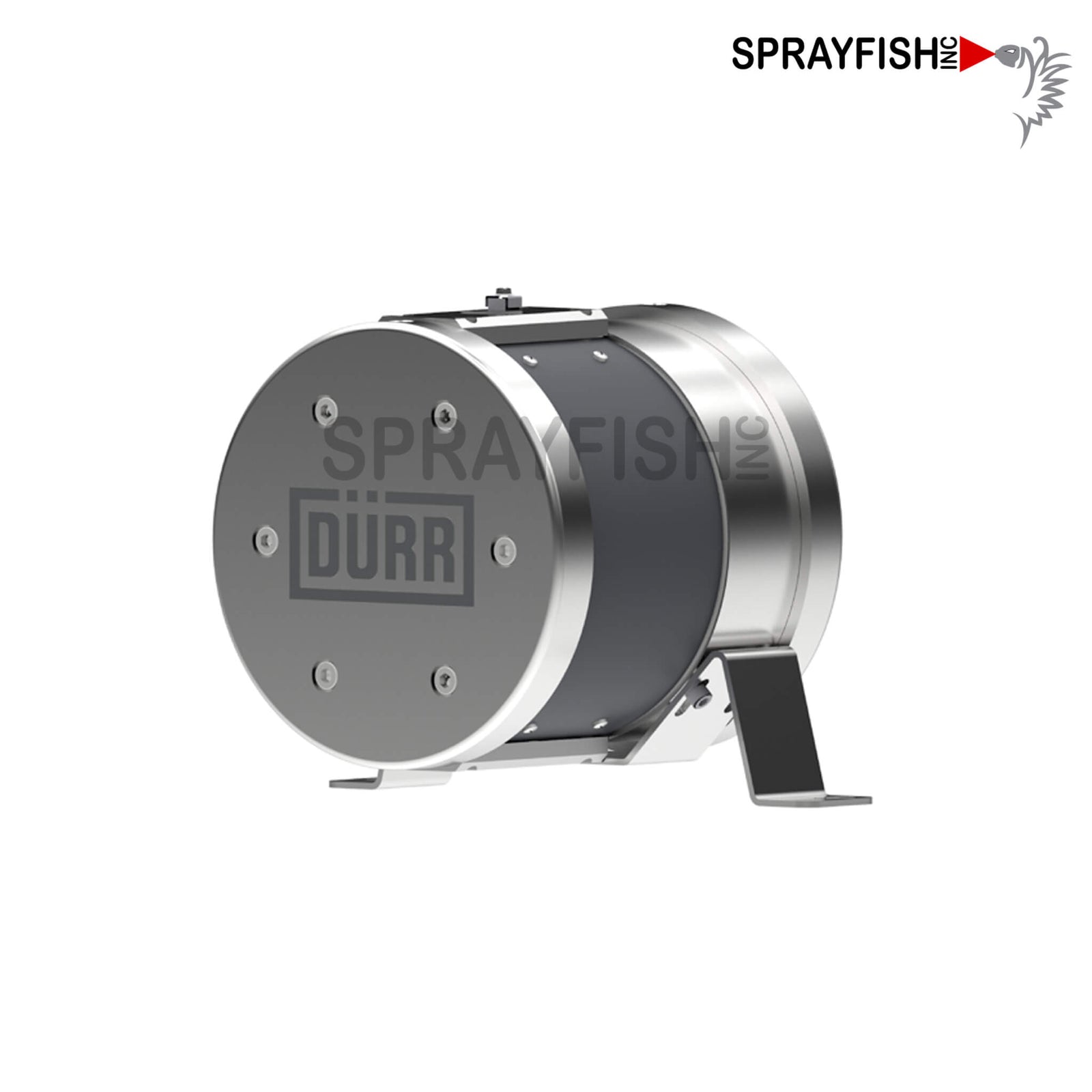

Dürr EcoPump AD 150 3:1 SST 3/8" DIAPHRAGM PUMP

Dürr SKU: N24140013
Dürr ECOPUMP AD 150 3:1 SST 3/8" DIAPHRAGM PUMP

Dürr EcoPump AD 150 3:1 SST 3/8" DIAPHRAGM PUMP

Dürr SKU: N24140013
Regular price $4,205.93
/
Shipping calculated at checkout.
  • Shipping Within US Only
  • Shipping or Local Delivery Available
  • Inventory Programs Available
  • Secure payments
Liquid error (snippets/image-element line 107): invalid url input


Customer Benefits

  • Selected choice of materials for housing
  • Easy maintenance and service
  • Highly flushable
  • Suitable for abrasive fluids and media
  • containing solids
  • ATEX Ex II 2G IIA T4 X

Specifications

Material housing: Stainless steel
Material contactStainless steel
Connector InletG 3/4''
Connector OutletG 3/8"
Displacement150 cc/cycle
Sound level64.5 dB(A)
Ratio3:1
Ex zoneEx II 2G Ex h IIA T6 Gb
Dimensions278x228x205
Operating temperature10 - 50 °C
Operating Temperature US50 - 122 °F
Relative humidity operation35 - 90 %
Temperature storage10 - 40 °C
Relative humidity storage35 - 90 %
Temperature transport-40 - 60 °C
Relative humidity transport35 - 90 %
Compressed air quality (ISO 8573-1)1:4:1
Dyn connection pressure P17.0 bar
Dyn. connection pressure P1102 psi
Connection DL inlet P1G 1/4"
Air consumption< 100 Nl/min
Viscosity< 200 mPa.s
Temperature media10 - 50 °C
Connector media inletG 3/4"
Connector media outletG 3/8"
Max pressure outlet21.0 bar
Outlet pressure, max305 psi
Max flow rate durable3.0 l/min
Max number of double strokes durable10 1/min
Max number of double strokes short time20 1/min
Material gasketsPTFE

Dangerous Good: False
