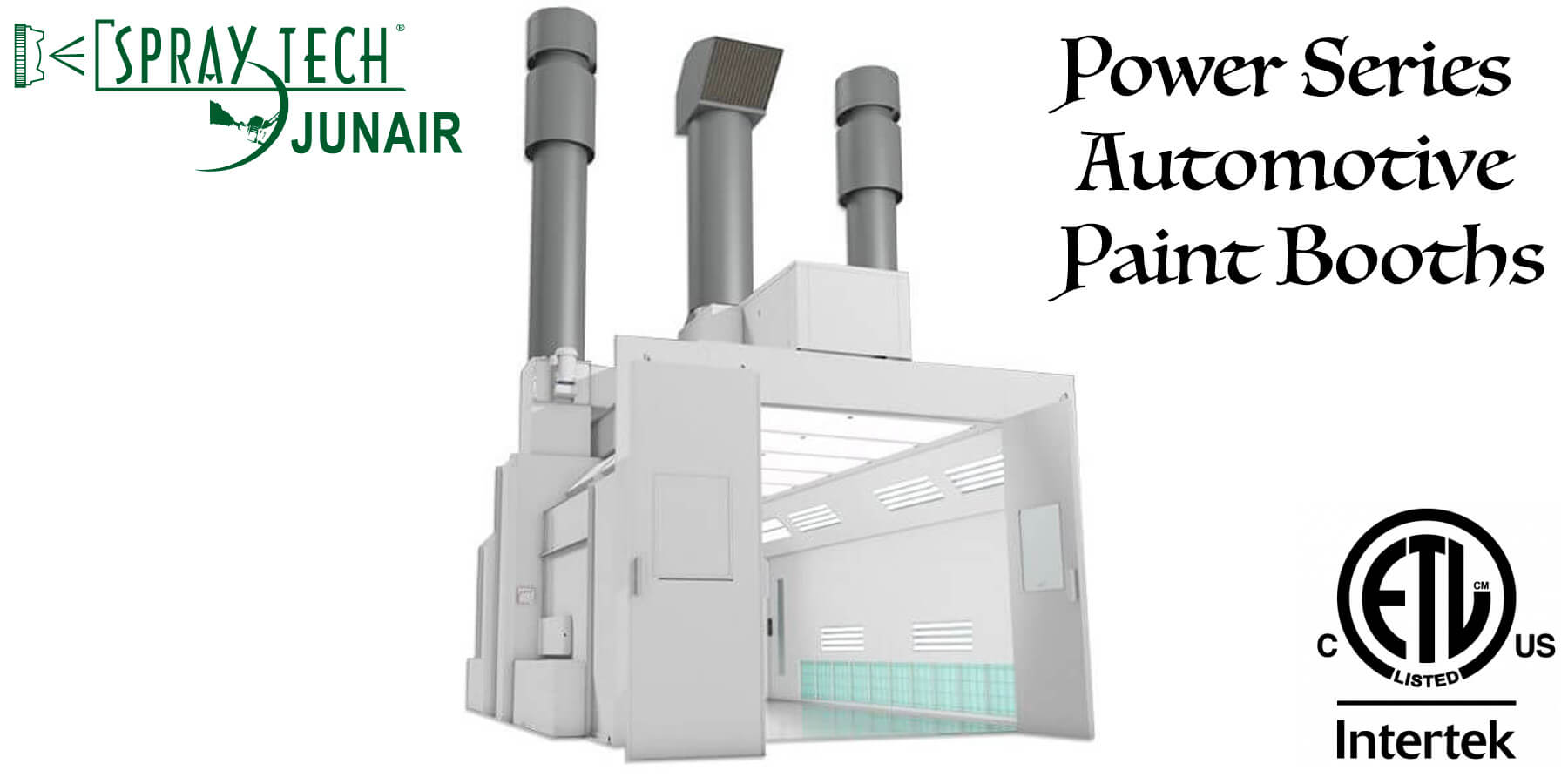

Spray Tech Power Series Automotive Paint Spray Booths Spray Tech Power Series Automotive Paint Spray Booths

Power Series Automotive Paint Spray Booths

The Power Series Spray Booths utilize highly advanced technology that incorporates an air make-up unit on top of the booth saving valuable shop floor space. These booths give you powerful performance in an economical package.

Advanced Technology Features

  • Booth Mounted Air Make-Up with over 80% Recirculation in Bake Mode
  • Cutting-Edge LED Light Fixtures
  • Fully-Filtered, Controlled Air Flow Ceiling
  • Available in Virtually any Draft Configuration
  • Powder Coated 18 Gauge Galvanized Steel
  • The Best Finishing Results with the Smallest Footprint

Power Series Specifications

24' Power Series 27' Power Series 30' Power Series
Fan/ Motor/ CFM  32" Dia/ 5HP/ 13,200 32" Dia/ 5HP/ 13,600 32" Dia/ 5HP/ 14,000
Blower/ Motor Dual Inlet CF/ 7.5HP
Dual Inlet CF/ 7.5HP
Dual Inlet CF/ 7.5HP
Mech BTU 1.0M BTU/ 1.5 Optional

1.0M BTU/ 1.5 Optional

1.0M BTU/ 1.5 Optional

Dual Inlet CF = Dual Inlet Centrifugal
Personnel Doors: 30" W x 82" H | Entrance Doors: 9' W x 9' H Tri-Fold
*Dimensional Information Varies - Please Request Data on Specific Models

Available In Virtually Any Draft Configuration

Standard Automotive dimensions available - 14' W x 9' H and choose between 24' - 27' - 30' D. These booths are a great option for the Automotive Industry and even the Woodworking Industry!

Primary Paint Booth Air Flow Draft Types

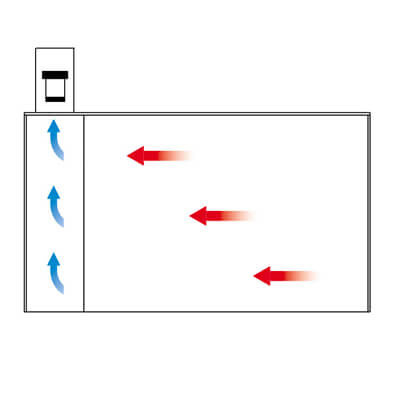

Cross Draft Air Flow Example

Crossdraft Paint Booths

The most cost-effective airflow style, crossdraft booths offer reliable performance at an affordable price point. Since there is no pit to dig, crossdraft booths are also easier to integrate into existing facilities. Air flows horizontally through a crossdraft booth, starting at the front of the booth and flowing over the product or part and into a filter bank at the back of the booth.

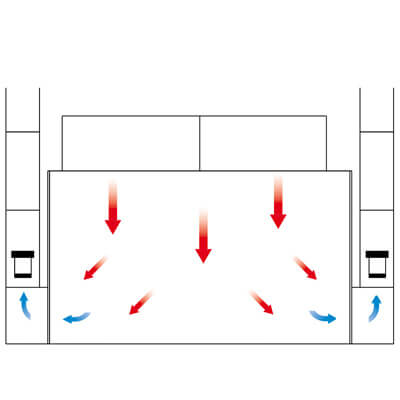

Side Downdraft Air Flow Example

Side-Downdraft Paint Booths

Side downdraft paint booths are an economical solution for shops that aren’t able to install a pit. Air comes into the booth through a full-length, filtered ceiling plenum, and flows downward over the product. When air reaches the floor, it is pulled into floor-level filtered exhaust plenums on both sides of the booth.

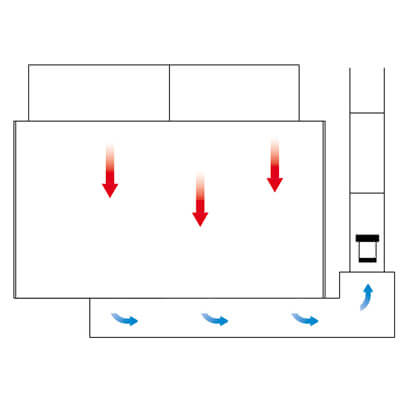

Downdraft Air Flow Example

Downdraft Paint Booths

Generally accepted as the best airflow style, downdraft booths do an excellent job of controlling overspray and contamination. Air enters the booth through a full-length filtered ceiling plenum. From there, air flows vertically over the product and into the filtered exhaust pit in the floor.

Get A Quote - Contact Us

Each Spray Tech Power Automotive Spray Booth System is unique in design to fit your specific application requirements. We can help you design the proper system to meet your production needs. We offer installation to ensure success with your new system!
