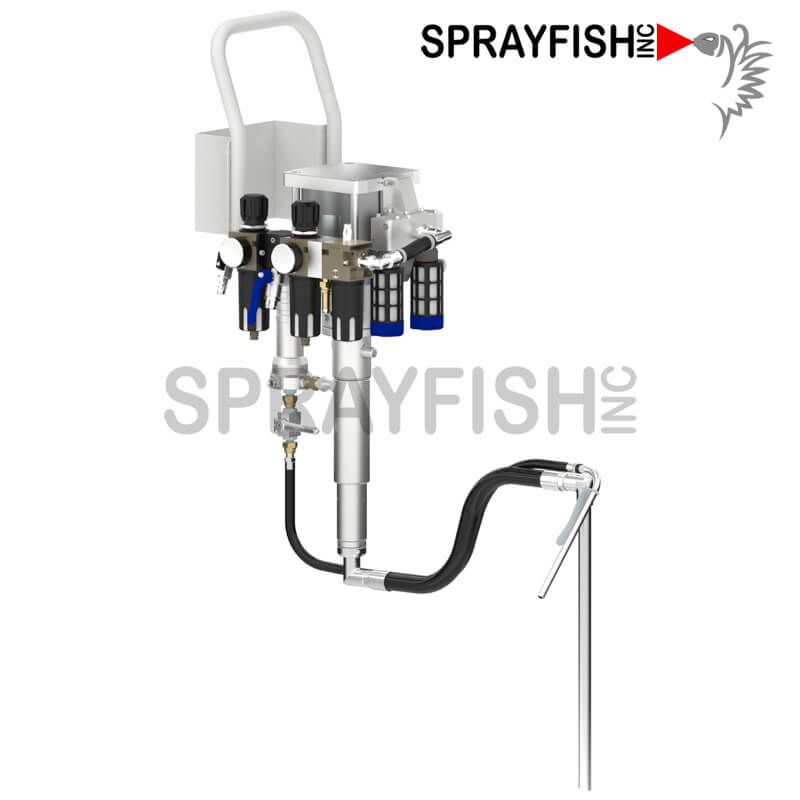

Dürr EcoPump VP 110 225 UF, WALL-MOUNT

Dürr SKU: VP13-AA-WH-S05-D100-H85-N
Dürr EcoPump VP 110 225 UF

Dürr EcoPump VP 110 225 UF, WALL-MOUNT

Dürr SKU: VP13-AA-WH-S05-D100-H85-N
Pump Fluid Filter
Suction Rod Type
Regular price $3,806.00
/
Shipping calculated at checkout.
  • Shipping Within US Only
  • Shipping or Local Delivery Available
  • Inventory Programs Available
  • Secure payments


Customer Benefits

  • Balanced pressure variations
  • Wide range of accessories available
  • Material supplying parts in stainless steel
  • Suitable for airless and air assisted applications
  • Modular design
  • Ideal for Flatline Systems for up to four (4) AA guns
  • Suitable for ATEX Zone 1

Specifications

- Material Housing: Stainless Steel
- Material Contact: Stainless Steel
- Displacement: 110 cc/cycle
- Sound level: < 80,0 dB(A)
- Ratio: 32:1
- Ex Zone: Ex II 2G IIB T6
- Dimensions: 621.5 x 143 x 187.2 mm
- Operating Temperature: -5 - 45 °C
- Operating Temperature US: 23 - 113 °F
- Relative Humidity Operation: 35 - 90 %
- Temperature Storage: 10 - 40 °C
- Relative Humidity Storage: 35 - 90 %
- Temperature Transport: -30 - 60 °C
- Relative Humidity Transport: 35 - 90 %
- Compressed Air Quality (ISO 8573-1: )1:4 (?3°C):1
- Dyn Connection Pressure P1: 7.0 bar
- Dyn. Connection Pressure P1: 101 psi
- Connection DL Inlet P1: G 1/2''
- Connection Pressure: < 145.0 psi
- Viscosity: 3 - 300 mPa.s
- Temperature Media: 5 - 60 °C
- Connector Media Inlet: M30x1.5
- Connector Media Outlet: M16x1.5
- Stroke: 95 mm
- Max Pressure Outlet: 225.0 bar
- Outlet Pressure Max: 3.250 psi
- Max Number of Double Strokes Durable: 18 1/min
- Max Number of Double strokes Short Time; 40 1/min
- Material Gaskets: Aluminium
- Dangerous Good: False

Sprayfish, Inc. ships within the US only. Choose between UPS, USPS, Local Delivery, or LTL Freight.
